1.
2.
of the same capacity, brand, speed, and chips be used and installed in the same colored sockets. For
1-5 Installing an Expansion Card
• Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
• Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.

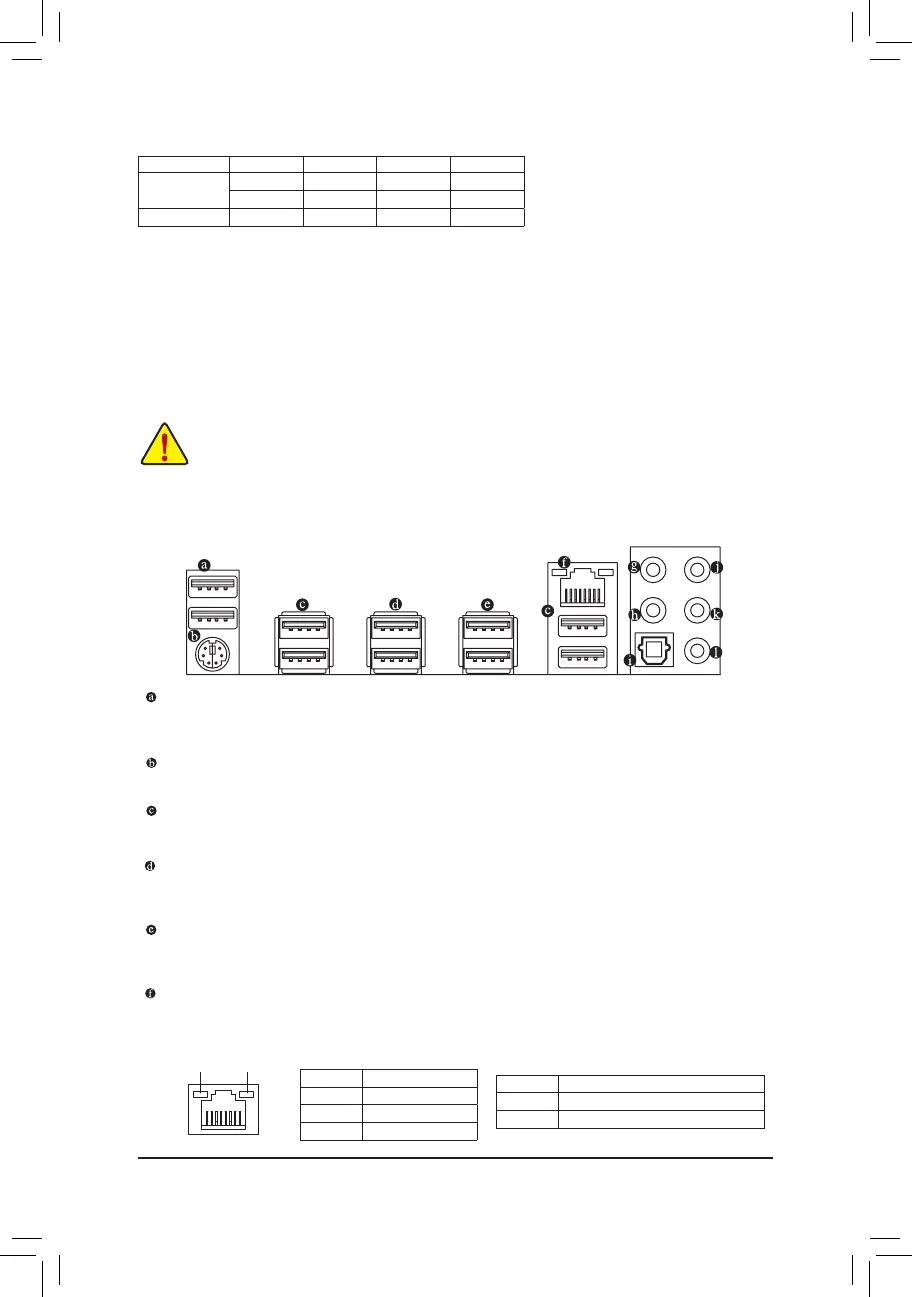

1-6 Back Panel Connectors
USB 2.0/1.1 Port
this port for USB devices.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
USB 2.0/1.1 Port
USB 3.1 Type-A Port (Red)
Use this port for USB devices.
USB 3.0/2.0 Port
Use this port for USB devices.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
2 Modules
- - - -
- - - -
4 Modules
Connection/
LAN Port
State
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State
Blinking
On No data transmission or receiving is occurring
- 10 -
