Gigabyte GA-B85M-D3H User Manual

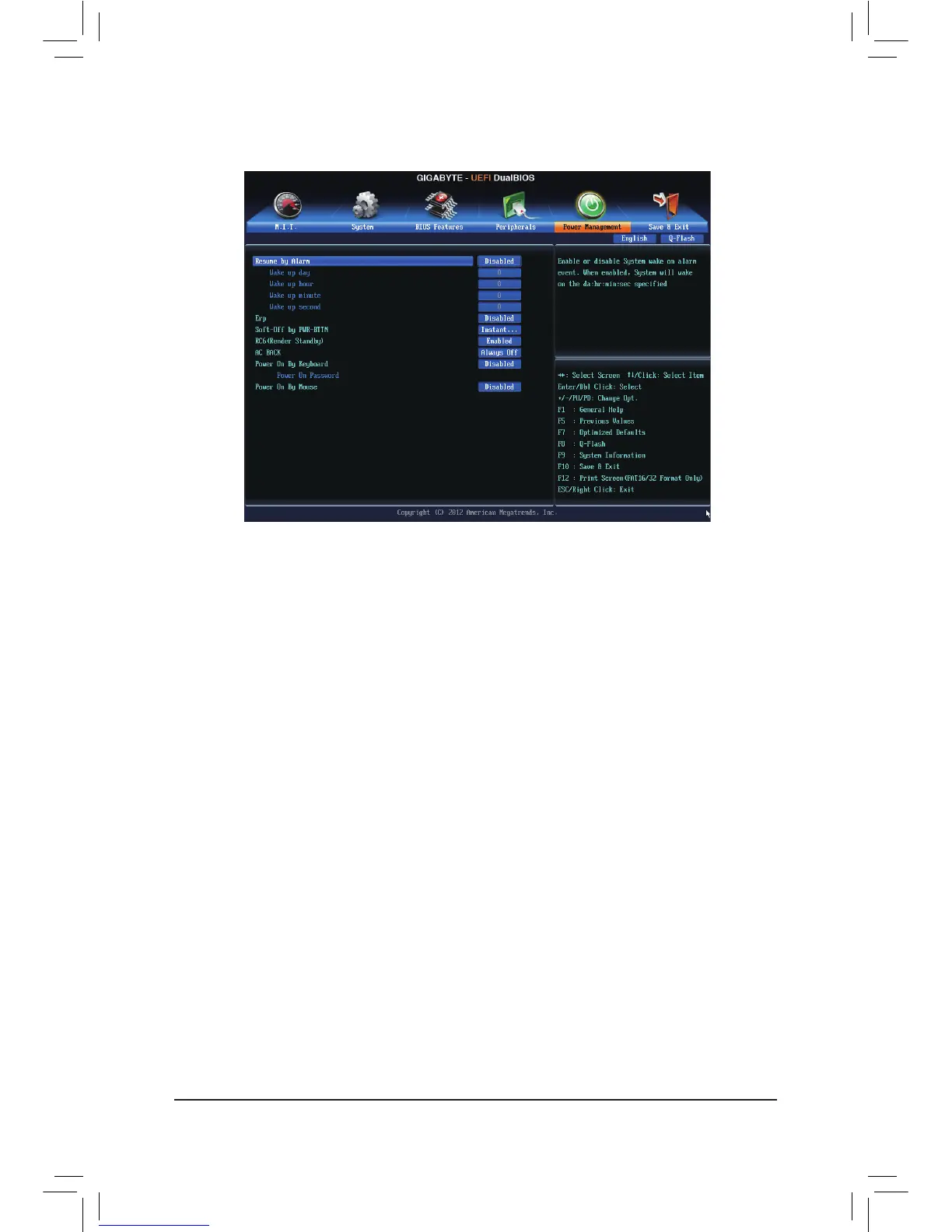

2-6 Power Management
& Resume by Alarm
Determines whether to power on the system at a desired time. (Default: Disabled)
If enabled, set the date and time as following:
Wakeupday:Turnonthesystemataspecictimeoneachdayoronaspecicdayinamonth.
Wake up hour/minute/second: Set the time at which the system will be powered on automatically.
Note: When using this function, avoid inadequate shutdown from the operating system or removal of the
AC power, or the settings may not be effective.
& ErP
Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled)
Note: When this item is set to Enabled, the following functions will become unavailable: PME event wake
up, power on by mouse, power on by keyboard, and wake on LAN.
& Soft-OffbyPWR-BTTN
 ConguresthewaytoturnoffthecomputerinMS-DOSmodeusingthepowerbutton.
Instant-Off Press the power button and then the system will be turned off instantly. (Default)
Delay 4 Sec Press and hold the power button for 4 seconds to turn off the system. If the power
button is pressed for less than 4 seconds, the system will enter suspend mode.
& RC6(Render Standby)
Allows you to determine whether to let the onboard graphics enter standby mode to decrease power
consumption. (Default: Enabled)
& AC BACK
Determines the state of the system after the return of power from an AC power loss.
Memory The system returns to its last known awake state upon the return of the AC power.
Always On The system is turned on upon the return of the AC power.
Always Off The system stays off upon the return of the AC power. (Default)
- 31 -

Gigabyte GA-B85M-D3H Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 2.0 connectors	2
Power fan connector	No
Number of SATA connectors	6
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® B85
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA, SATA II, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
Bundled software	Intel Rapid Start Technology\\r Intel Smart Connect Technology\\r Intel Small Business Advantage\\r Norton Internet Security
BIOS type	UEFI
ACPI version	2.0a

Weight and Dimensions

Depth	225 mm
Width	244 mm
