Gigabyte GA-B85M-DS3H User Manual

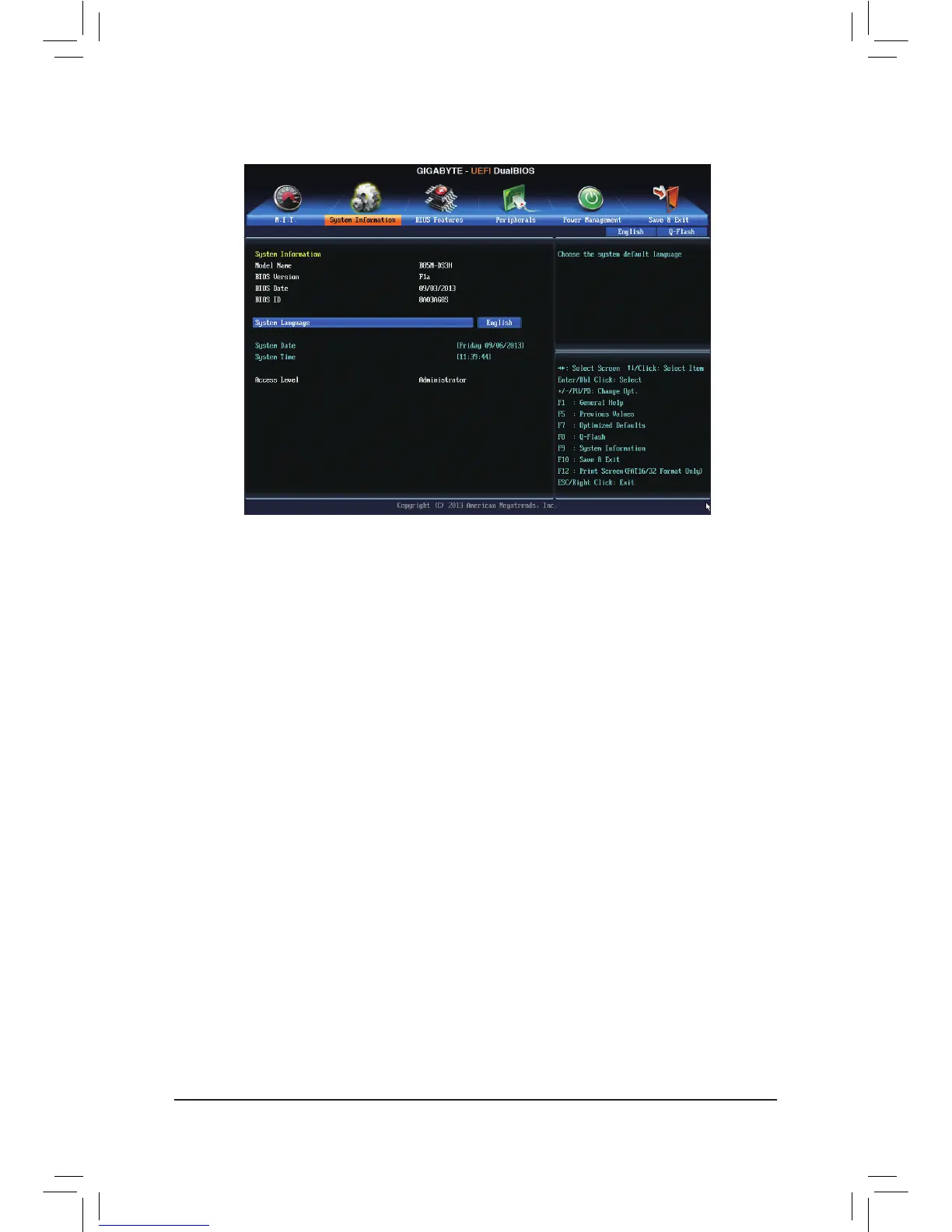

2-3 System Information
This section provides information on your CPU, memory, motherboard model, and BIOS version. You can also
select the default language used by the BIOS and manually set the system time.
& System Language
Selects the default language used by the BIOS.
& System Date
Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch
betweentheMonth,Date,andYeareldsandusethe<PageUp>or<PageDown>keytosetthedesired
value.
& System Time
Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0. Use
<Enter>toswitchbetweentheHour,Minute,andSecondeldsandusethe<PageUp>or<PageDown>
key to set the desired value.
& Access Level
Displays the current access level depending on the type of password protection used. (If no password is
set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.
- 24 -

Gigabyte GA-B85M-DS3H Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-4xxx, i5-4xxx, i7-4xxx
USB 2.0 connectors	2
Number of SATA connectors	-
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® B85
PC health monitoring	CPU, FAN, Power supply, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Supported storage drive interfaces	SATA II, SATA III
Maximum graphics card memory	1024 MB
PCI Express slots quantity	3
Bundled software	Norton Internet Security, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	193 mm
Width	226 mm
