Appendix- 73 -

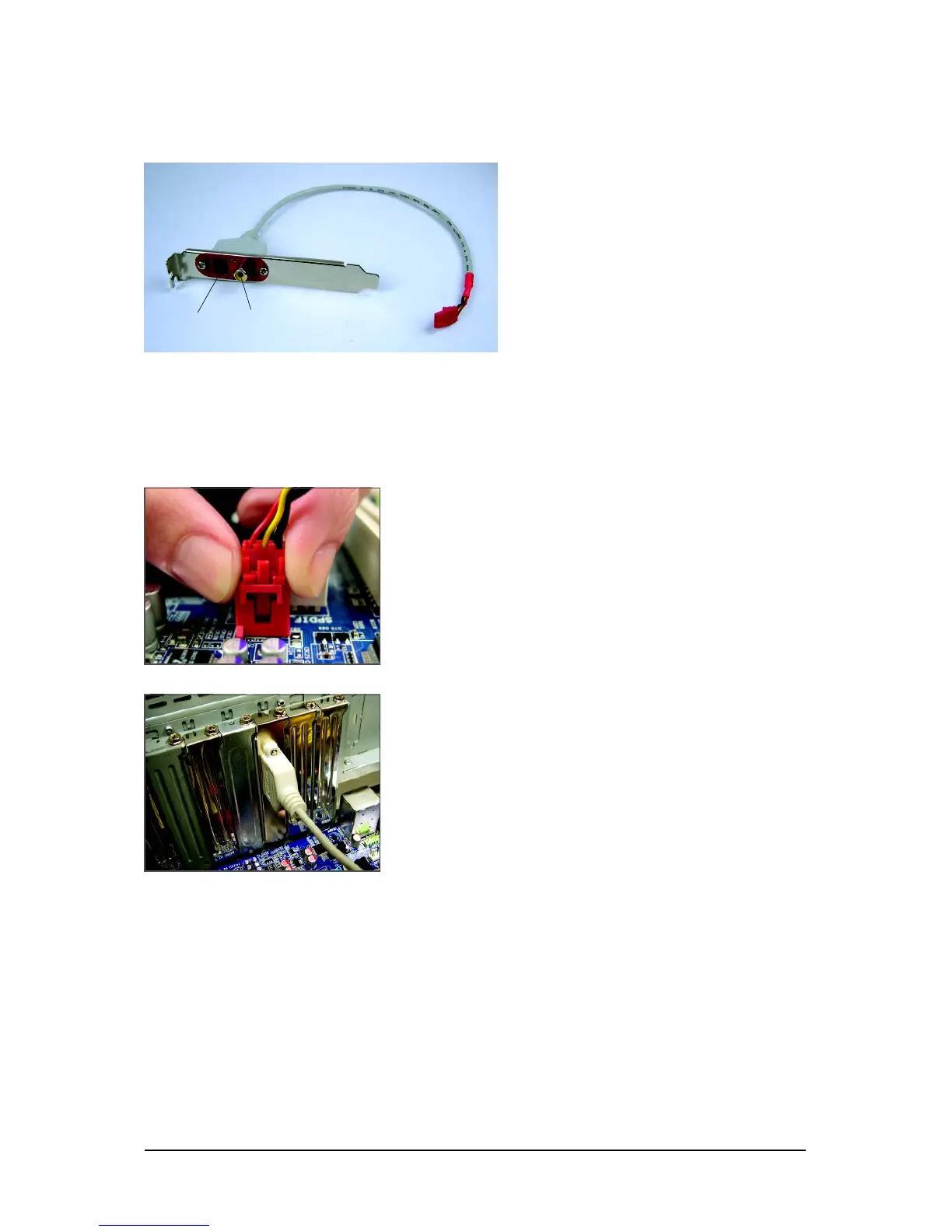

5-1-2 Installing the S/PDIF In Cable (Optional)
The S/PDIF in cable provides S/PDIF in functionality.
Coaxial
S/PDIF In
Optical
S/PDIF In
Step 1:
First, attach the connector at the end of the cable to the SPDIF_I
header on your motherboard.
Step 2:
Secure the metal bracket to the chassis back panel with a
screw.
S/PDIF In:
The S/PDIF in jacks allow you to input digital audio signals to the computer for audio processing.
A. Installing the S/PDIF In Cable:

Gigabyte GA-EP31-DS3L Specifications

General

Memory voltage	1.8 V
Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
PS/2 ports quantity	2
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
PCI Express x1 slots	3
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
Trial software	Norton Internet Security

Weight and Dimensions

Depth	210 mm
Width	305 mm
