Gigabyte GA-EP35-DS3P User Manual

- 8 -

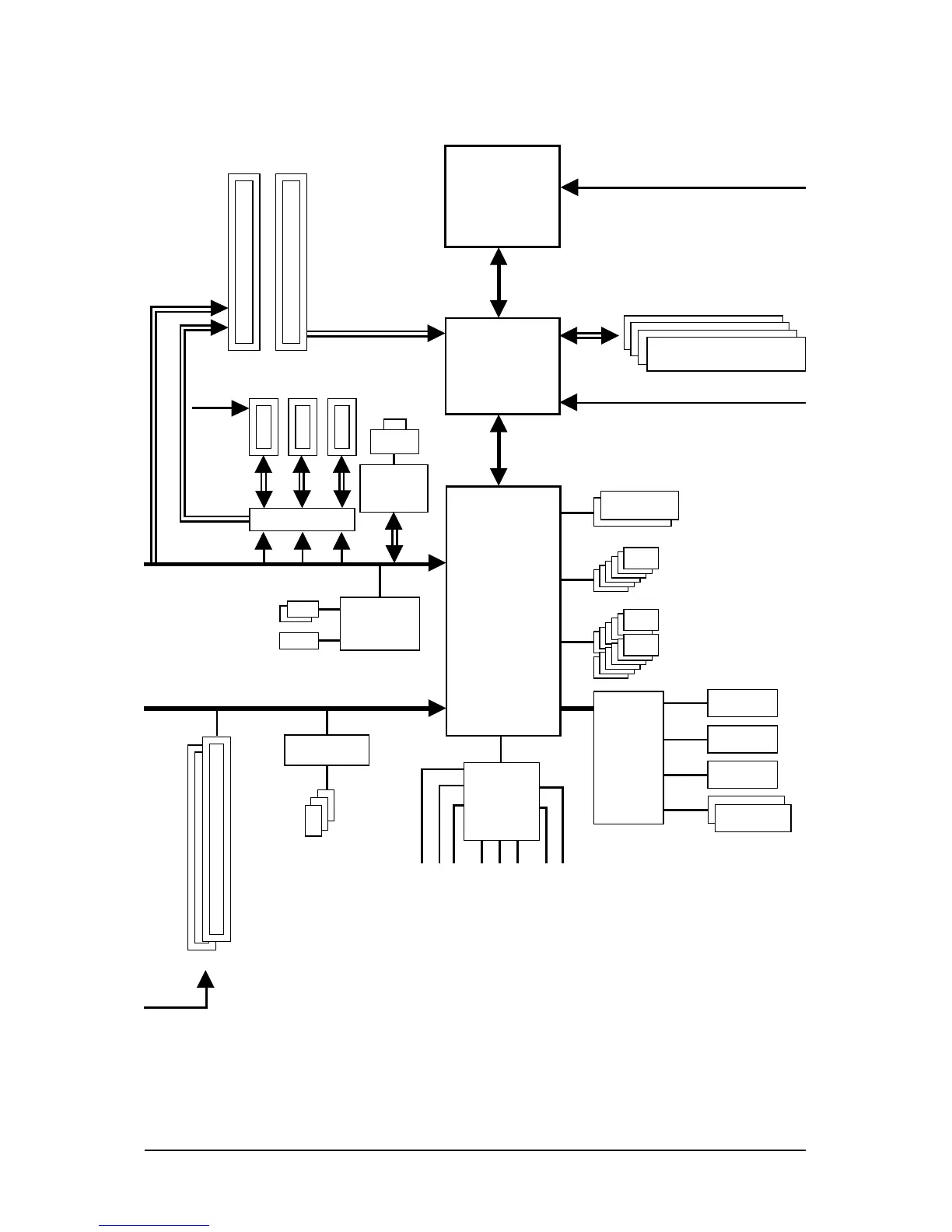

Block Diagram
LGA775
Processor
Host
Interface
Intel
®
P35
MCH CLK
(400 (O.C.)/333/266/200 MHz)
DDR2 1200 (O.C.)/1066/
800/667 MHz
Intel
®
ICH9R
Dual BIOS
2 PCI
PCI Bus
PCI Express Bus
Dual Channel Memory
6 SATA 3Gb/s
x1
PCI CLK
(33 MHz)
3 IEEE 1394a
12 USB Ports
2 SATA 3Gb/s
ATA-133/100/66/
33 IDE Channel
GIGABYTE
SATA2
IT8718
Floppy
PS/2 KB/Mouse
LPT Port
COM Port
CPU CLK+/-
(400 (O.C.)/333/266/200 MHz)
TSB43AB23
Center/Subwoofer Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
PCIe CLK
(100 MHz)
x1
PCIe CLK
(100 MHz)
PCI Express x16
PCI Express x1
Switch
x1 x1
PCI Express x3
RTL8111B
LAN
RJ45
