Gigabyte GA-EP45T-UD3LR User Manual

Hardware Installation- 17 -

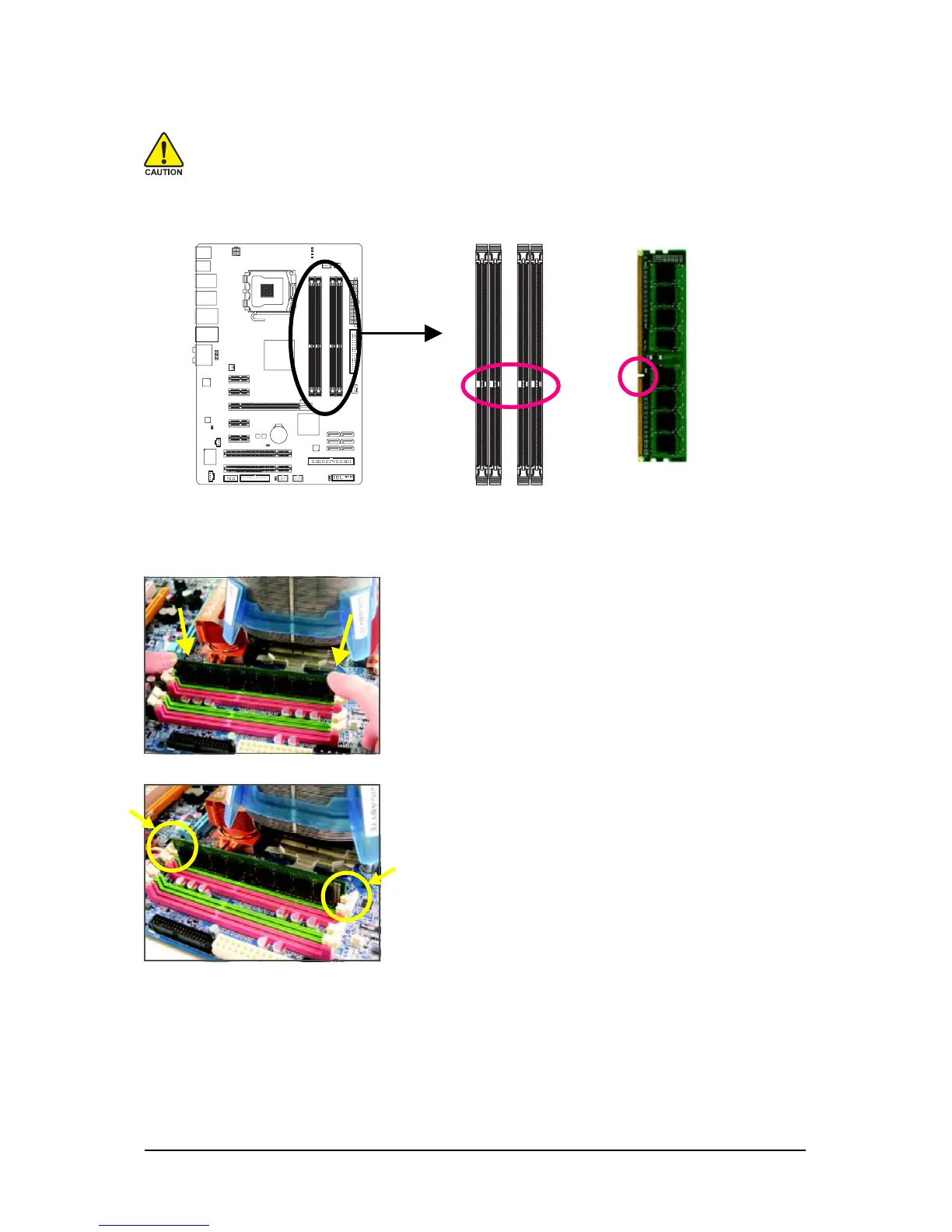

1-4-2 Installing a Memory
Before installing a memory module , make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to
install DDR3 DIMMs on this motherboard.
DDR3 DIMM
Notch
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.
A DDR3 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.

Gigabyte GA-EP45T-UD3LR Specifications

General

Memory voltage	1.5 V
Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	12
Power fan connector	Yes
Number of SATA connectors	6
PS/2 ports quantity	2
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows Vista, XP
BIOS type	AWARD
RAID levels	0, 1, 10
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
Trial software	Norton Internet Security

Weight and Dimensions

Depth	210 mm
Width	305 mm
