Gigabyte GA-H110M-H User Manual

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

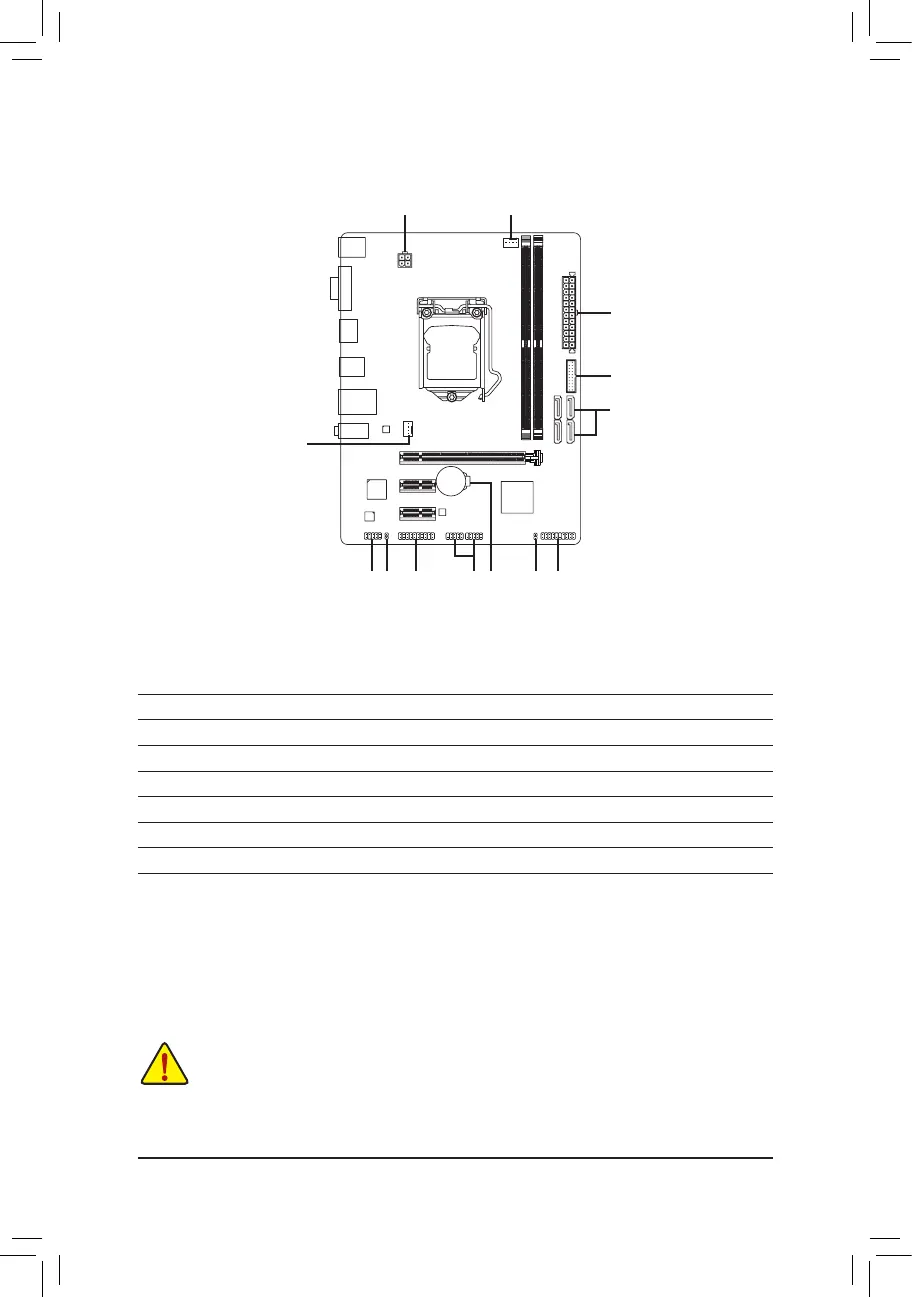

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) SATA3 0/1/2/3
6) F_PANEL
7) F_AUDIO
8) SPDIF_O
9) CLR_CMOS
10) F_USB30
11) F_USB1/F_USB2
12) TPM
13) BAT
2
9 6
10
5
11 131287
1 3
4
- 12 -

Gigabyte GA-H110M-H Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Supported RDIMM clock speeds	978 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors	1
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Active
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Bundled software	- Norton® Internet Security (OEM version) - cFosSpeed
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	174 mm
Width	226 mm
