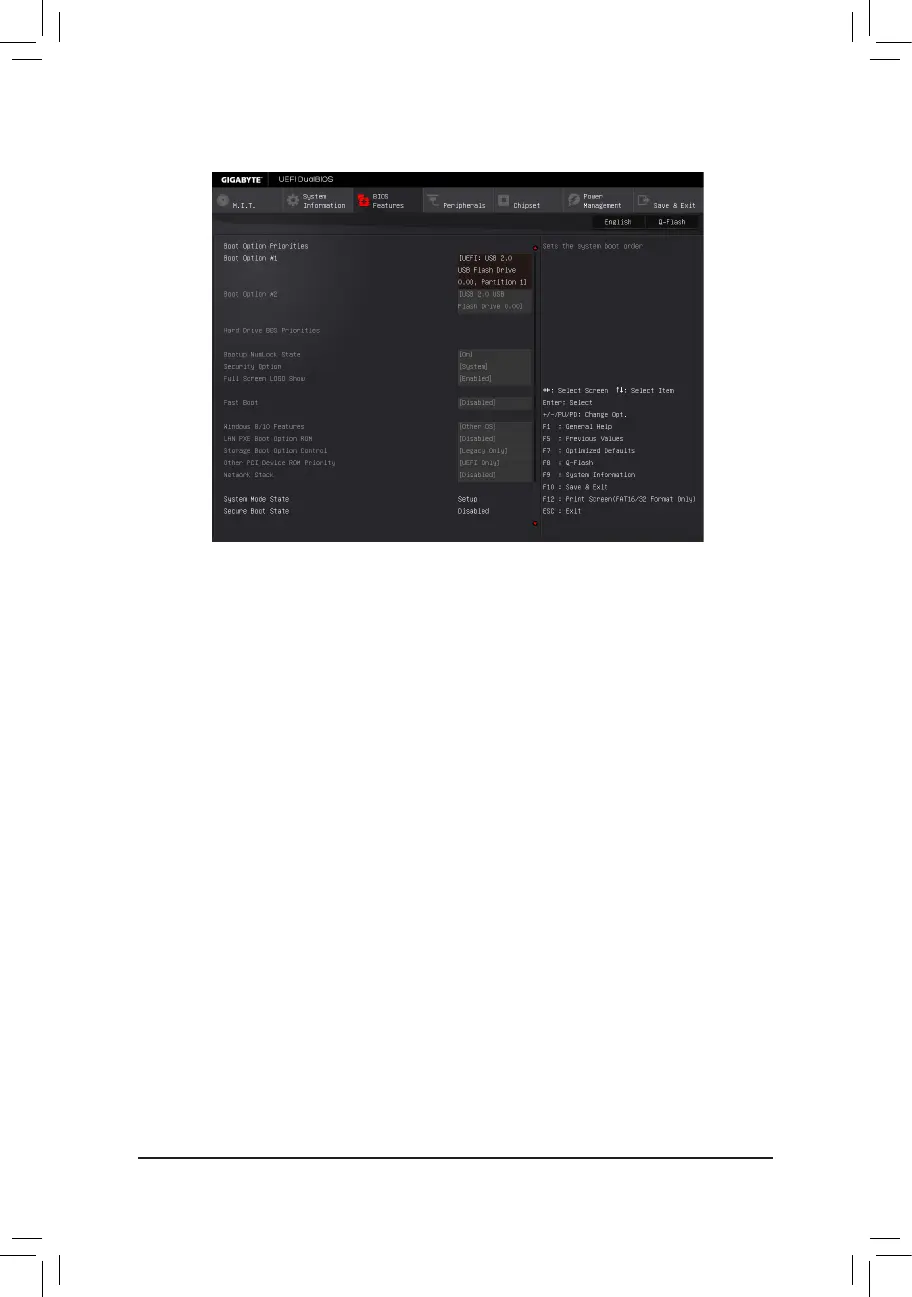

Gigabyte GA-H110M-H User Manual

& Boot Option Priorities
Species the overall boot order from the available devices. Removable storage devices that support GPT
format will be prexed with "UEFI:" string on the boot device list. To boot from an operating system that
supports GPT partitioning, select the device prexed with "UEFI:" string.
Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select
the optical drive that contains the Windows 7 64-bit installation disc and is prexed with "UEFI:" string.
& Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities
Species the boot order for a specic device type, such as hard drives, optical drives, oppy disk drives,
and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu that
presents the devices of the same type that are connected. This item is present only if at least one device
for this type is installed.
& Bootup NumLock State
Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On)
& Security Option
Species whether a password is required every time the system boots, or only when you enter BIOS Setup.
After conguring this item, set the password(s) under the Administrator Password/User Password item.
Setup A password is only required for entering the BIOS Setup program.
System A password is required for booting the system and for entering the BIOS Setup
program. (Default)
& Full Screen LOGO Show
Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the
GIGABYTE Logo when the system starts up. (Default: Enabled)
& Fast Boot
Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup
speed. (Default: Disabled)
2-4 BIOS Features
- 25 -

Gigabyte GA-H110M-H Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Supported RDIMM clock speeds	978 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors	1
Number of SATA III connectors	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Supported storage drive interfaces	SATA III
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Active
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H110
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
BIOS memory size	64 Mbit
Bundled software	- Norton® Internet Security (OEM version) - cFosSpeed
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	174 mm
Width	226 mm
