2-2 M.I.T.
Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall
system congurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory
and reduce the useful life of these components. This page is for advanced users only and we recommend you not to
alter the default settings to prevent system instability or other unexpected results. (Inadequately altering the settings
may result in system's failure to boot. If this occurs, clear the CMOS values and reset the board to default values.)
This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,
total memory size, CPU temperature, Vcore, and memory voltage.
• When the system is not stable as usual, select the Load Optimized Defaults item to set your system to its defaults.
• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.
Differing from traditional UEFI interface, the Dashboard Mode provides a fancy and user-friendly BIOS
environment where users can easily point and click through various settings and make adjustments for optimum
performance. In Dashboard Mode, you can use your mouse to move through the option menus for quick
conguration or you can click Classic Setup under the Shortcuts list on the right of the screen or press <F2>
to switch to the traditional BIOS Setup screen. On the main menu of the BIOS Setup program, press arrow
keys to move among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse
to select the item you want.

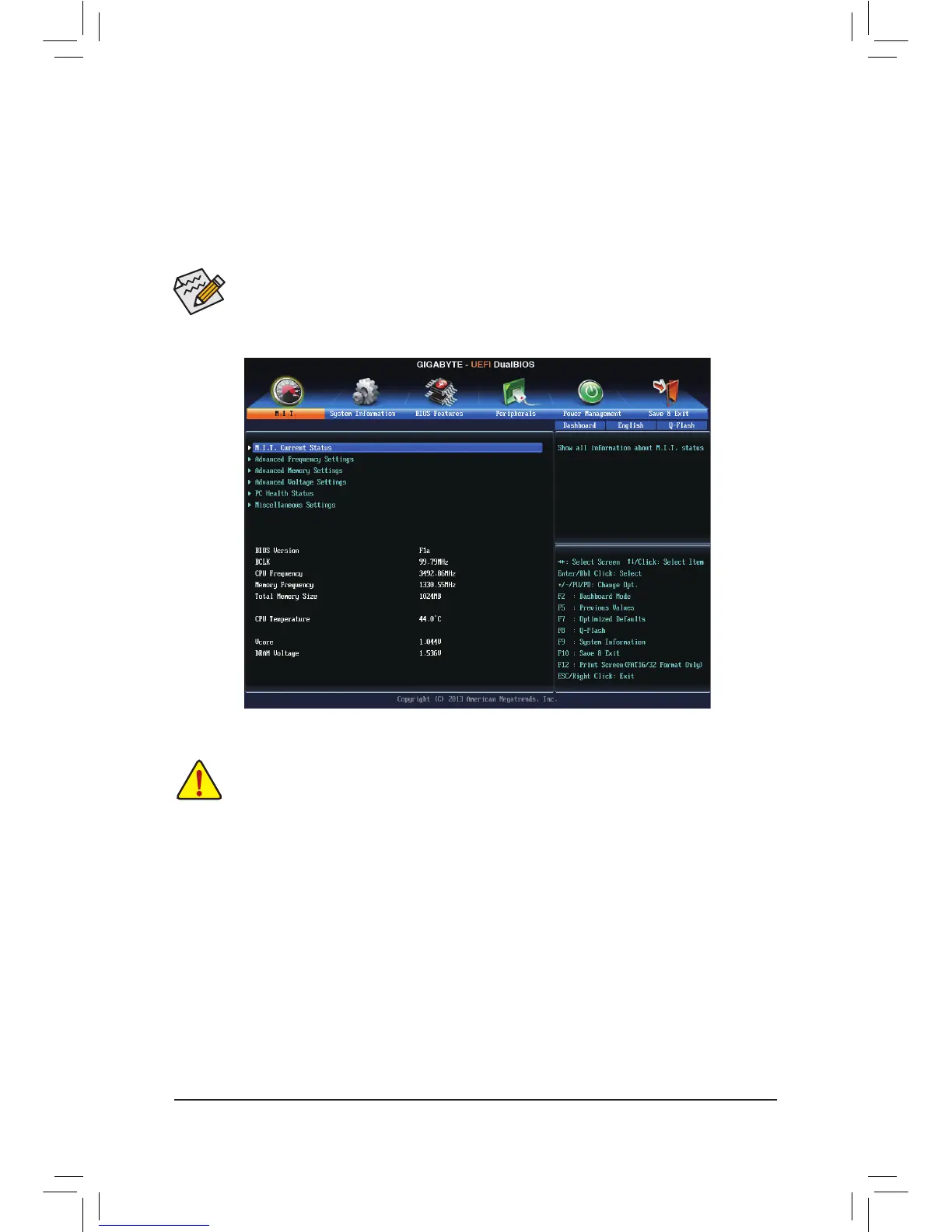

` M.I.T. Current Status
This screen provides information on CPU/memory frequencies/parameters.
` Advanced Frequency Settings
& Performance Upgrade
(Note)
Provides you with ve different overclocking congurations. Options are: 20% Upgrade, 40% Upgrade,
60% Upgrade, 80% Upgrade, 100% Upgrade. (Default: Auto)
& Processor Graphics Clock
Allows you to set the onboard graphics clock. The adjustable range is from 400 MHz to 4000 MHz. (Default: Auto)
& CPU Upgrade
(Note)
Allows you to set the CPU frequency. Options may vary depending on the CPU being used. (Default: Auto)
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
