Gigabyte GA-H81M-DS2V User Manual

- 20 -
2-3 System Information
& CPU Fan Speed Control
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Normal Allows the fan to run at different speeds according to the CPU temperature. You can
adjust the fan speed with EasyTune based on your system requirements. (Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed under the Fan Speed Percentage item.
Full Speed Allows the fan to run at full speeds.
& Fan Speed Percentage
Allows you to control the fan speed. This item is congurable only when CPU Fan Speed Control is set
to Manual. Options are: 0.75 PWM value /
o
C ~ 2.50 PWM value /
o
C.
& System Fan Speed Control
Allows you to determine whether to enable the fan speed control function and adjust the fan speed.
Normal Allows the fan to run at different speeds according to the system temperature. You can
adjust the fan speed with EasyTune based on your system requirements. (Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed under the Fan Speed Percentage item.
Full Speed Allows the fan to run at full speeds.
& Fan Speed Percentage
Allows you to control the fan speed. This item is congurable only when System Fan Speed Control is
set to Manual. Options are: 0.75 PWM value /
o
C ~ 2.50 PWM value /
o
C.
` Miscellaneous Settings
& PCIeSlotConguration
Allows you to set the operation mode of the PCI Express slots to Gen 1 or Gen 2. Actual operation mode is
subject to the hardware specication of each slot. Auto lets the BIOS automatically congure this setting.
(Default: Auto)
& 3DMark01 Boost
Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)

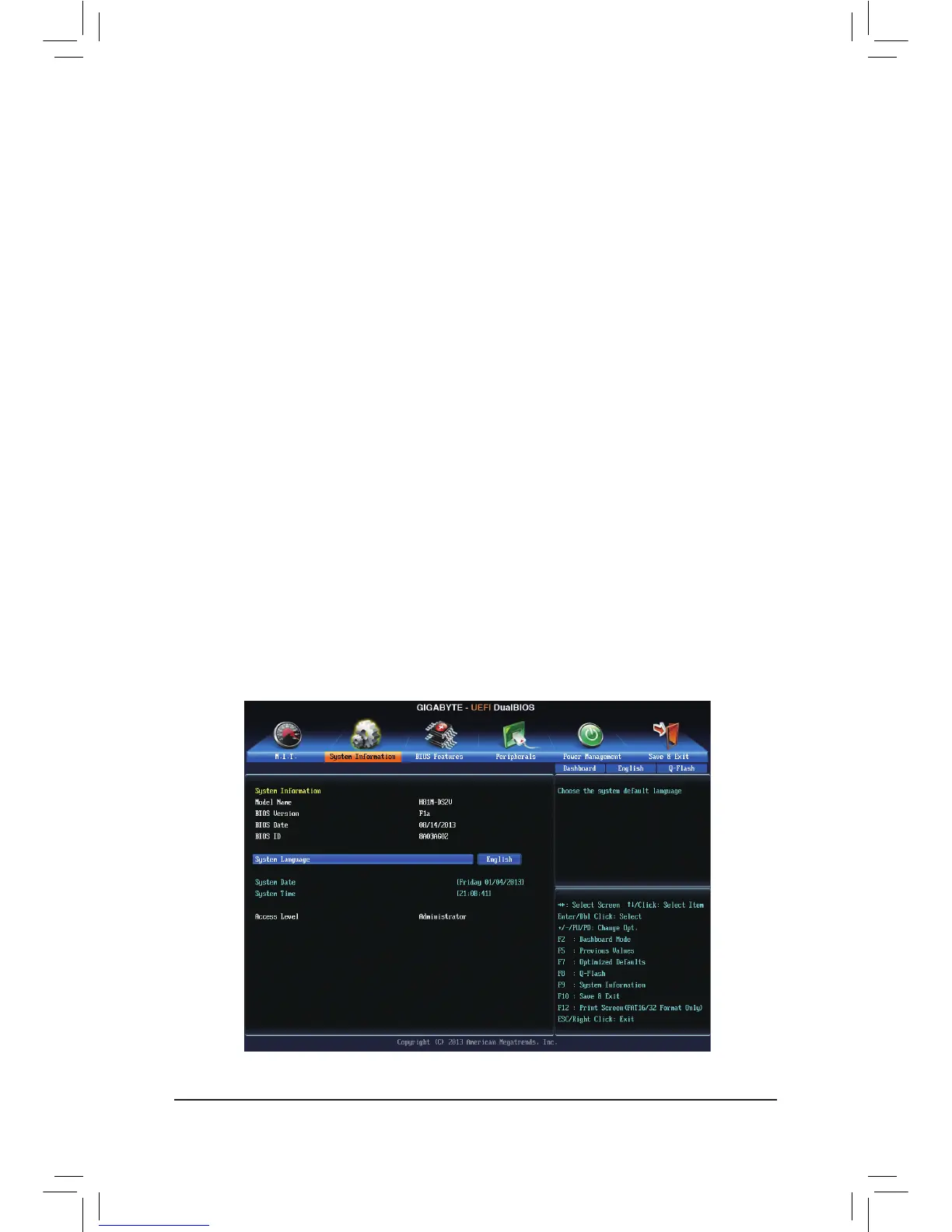

This section provides information on your motherboard model and BIOS version. You can also select the default
language used by the BIOS and manually set the system time.

Gigabyte GA-H81M-DS2V Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-4xxx, i5-4xxx, i7-4xxx
USB 2.0 connectors	2
Number of SATA connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	-
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Supported storage drive interfaces	SATA
Maximum resolution	1920 x 1200 pixels
BIOS type	UEFI AMI
ACPI version	2.0a

Weight and Dimensions

Depth	170 mm
Width	244 mm
