- 19 - Hardware Installation
1-6 Setup of the ATI CrossFireX
™
Conguration
A. System Requirements
- Windows Vista or Windows XP operating system
- A CrossFireX-supported motherboard with two PCI Express x16 slots and correct driver
- Two CrossFireX-ready graphics cards of identical brand and chip and correct driver
- Two CrossFire bridge connectors
(Note)
- A power supply with sufcient power is recommended (Refer to the manual of your graphics cards for
the power requirement)
B. Connecting the Graphics Cards
Step 1:
Observe the steps in "1-5 Installing an Expansion Card" and install two CrossFireX graphics cards on the PCI
Express x16 slots.
Step 2:
(Note)
Insert the CrossFire bridge connectors in the CrossFireX gold edge connectors on top of the two cards.
Step 3:
Plug the display cable into the graphics card on the PCIEX16_1 slot.
C. Conguring the Graphics Card Driver

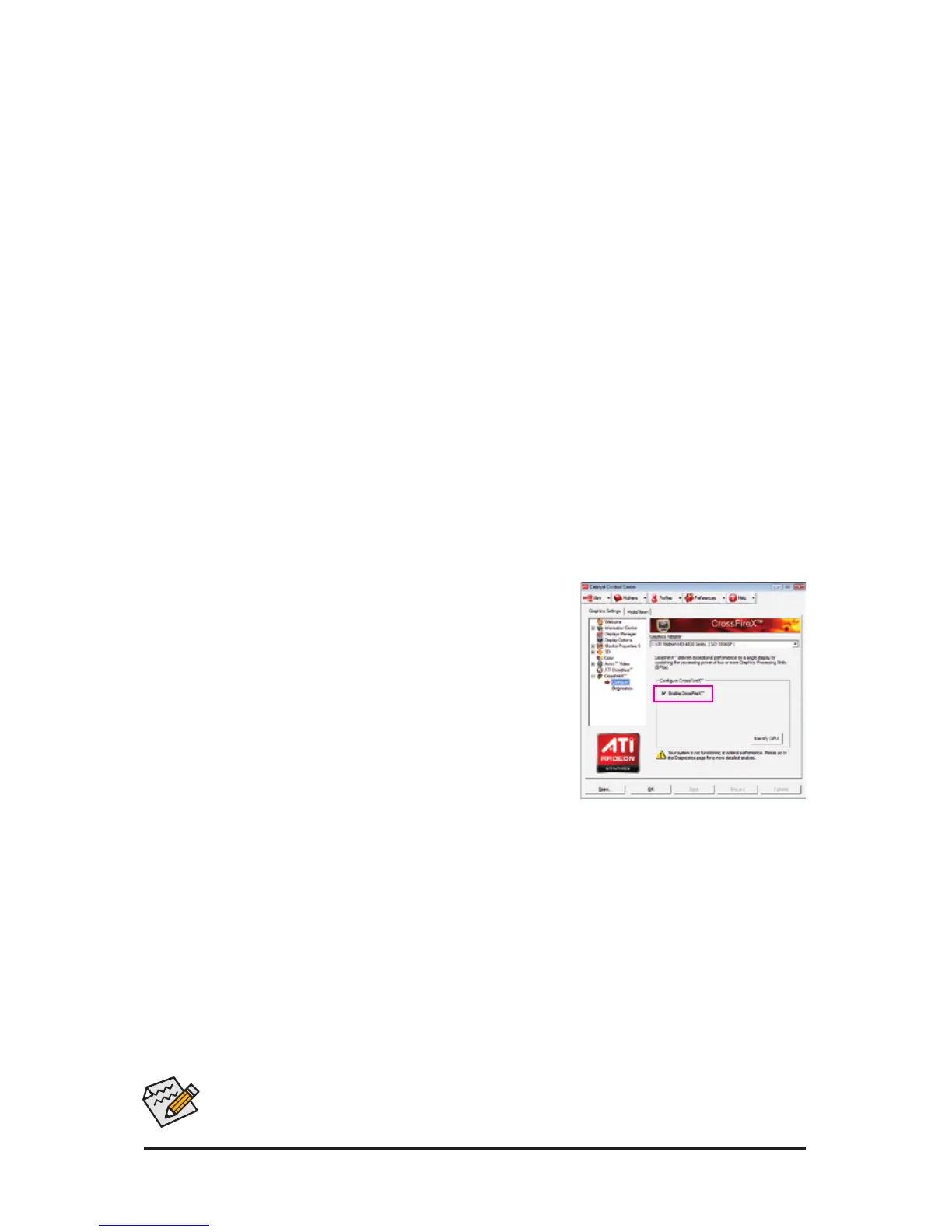

After installing the graphics card driver in the operating system, go to
the ATI Catalyst Control Center. Browse to the CrossFireX menu
and ensure the Enable CrossFireX
™
check box is selected.
(Note) The bridge connectors may be needed or not depending on your graphics cards.
Procedure and driver screen for enabling CrossFireX technology may differ by graphics cards.
Refer to the manual that came with your graphics cards for more information about enabling Cross-
FireX technology.
