Gigabyte GA-MA790X-UD3P User Manual

GA-MA790X-UD3P Motherboard - 22 -

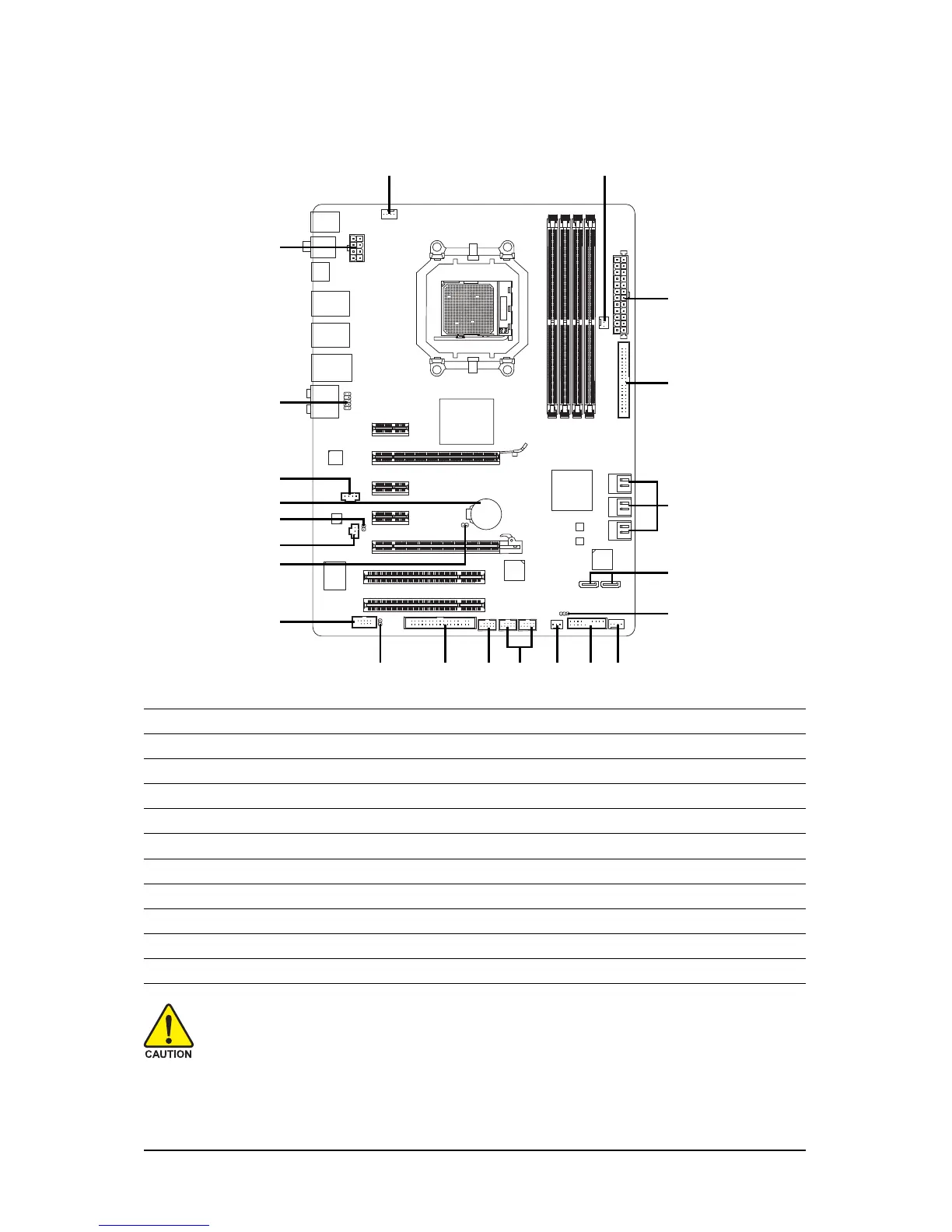

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1
2
3
8
11
12
21
4
7
14
16
5
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0 / 1 / 2 / 3 / 4 / 5
9) GSATA2_0/GSATA_1
10) PWR_LED
11) F_PANEL
12) F_AUDIO
13) CD_IN
14) SPDIF_IN
15) SPDIF_OUT
16) F_USB1 / F_USB2
17) F_1394
18) COM
19) CI
20) CLR_CMOS
21) BATTERY
4
6
10
9
17
18
19
20
13
15
