Gigabyte GA-P35-DS3L User Manual

GA-P35-DS3L/S3L Motherboard - 24 -
English

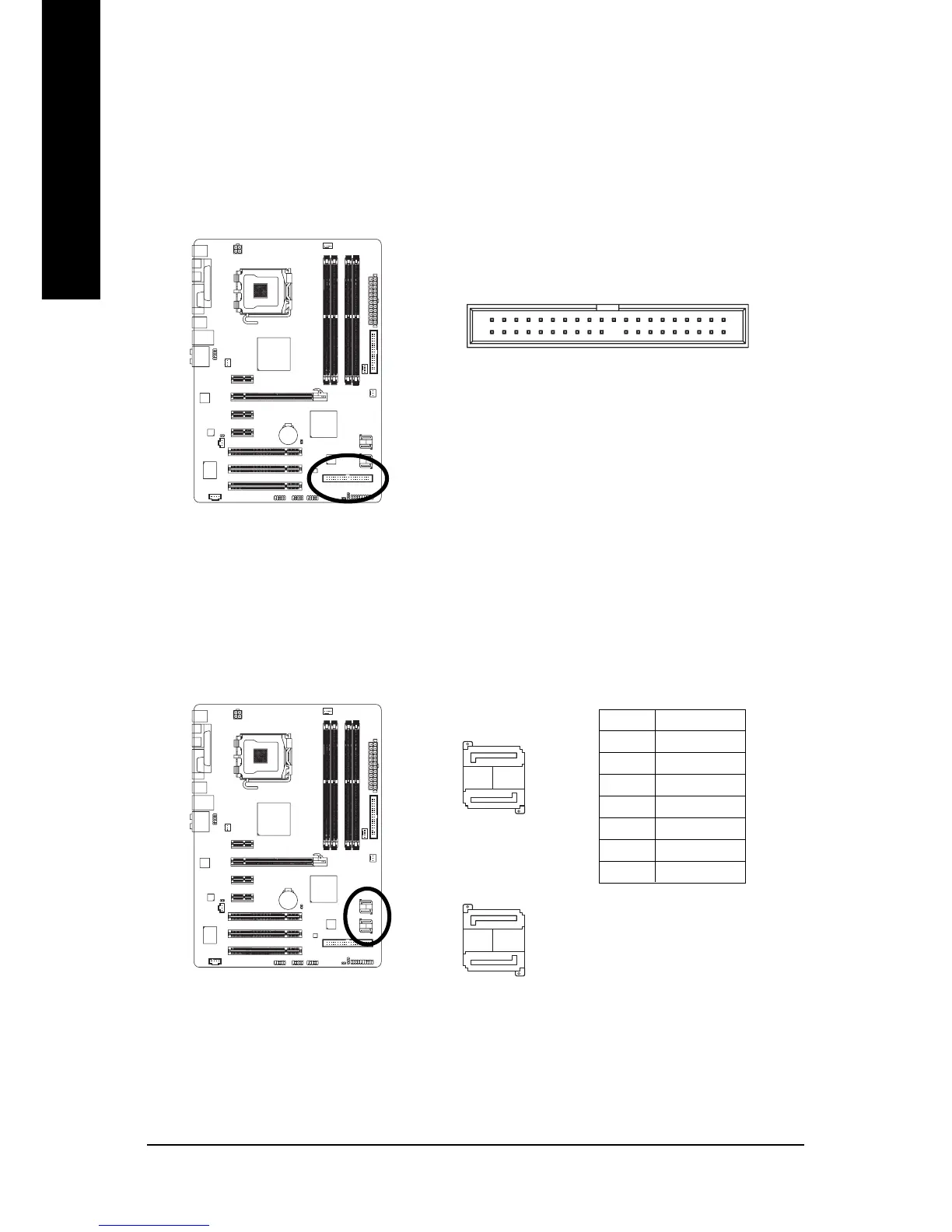

8) IDE1 (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before
attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE
devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for
example, master or slave). (For information about configuring master/slave settings for the IDE
devices, read the instructions from the device manufacturers.)
240
139
9) SATAII0/1/4/5 (SATA 3Gb/s Connectors, Controlled by ICH9)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
7
1
7
1
SATAII0
SATAII1
7
17
1
SATAII4
SATAII5

Gigabyte GA-P35-DS3L Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Dimensions (WxDxH)	305 x 210 mm
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC888
Motherboard form factor	ATX
