Gigabyte GA-P35-DS3L User Manual

- 8 -

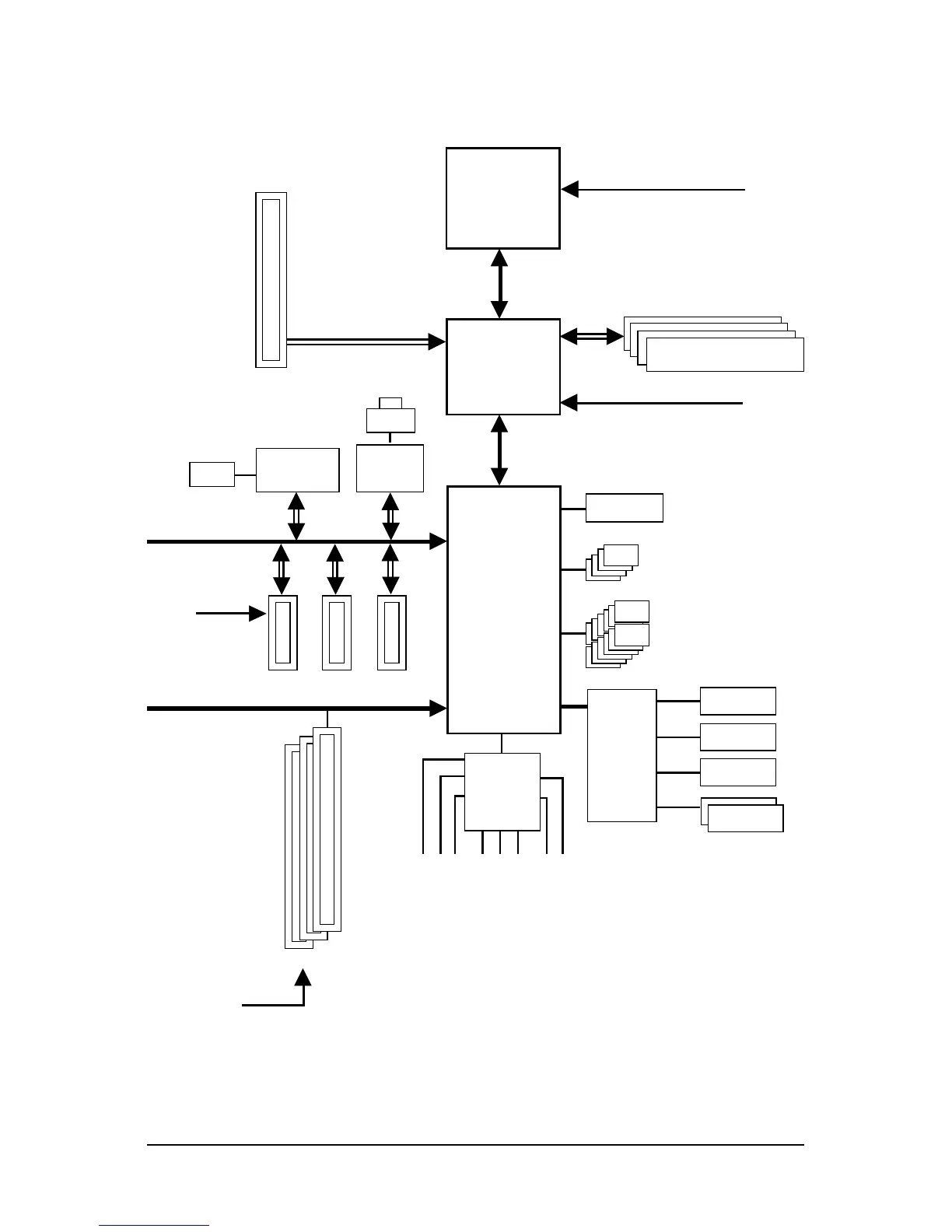

Block Diagram
LGA775
Processor
Host
Interface
Intel
®
P35
MCH CLK
(333/266/200 MHz)
DDR2 1066/800/667 MHz
Intel
®
ICH9
BIOS
3 PCI
PCI Bus
Dual Channel Memory
PCI CLK
(33 MHz)
PCIe CLK
(100 MHz)
PCI Express x16
12 USB Ports
IT8718
Floppy
PS/2 KB/Mouse
LPT Port
CPU CLK+/-
(333/266/200 MHz)
Center/Subwoofer Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
COM Port
3 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
LAN
RJ45
x1
x1
x1
ATA-133/100/66/33
IDE Channel
RTL
8111B
x1
x1
JMicron
368
4 SATA 3Gb/s

Gigabyte GA-P35-DS3L Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Dimensions (WxDxH)	305 x 210 mm
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC888
Motherboard form factor	ATX
