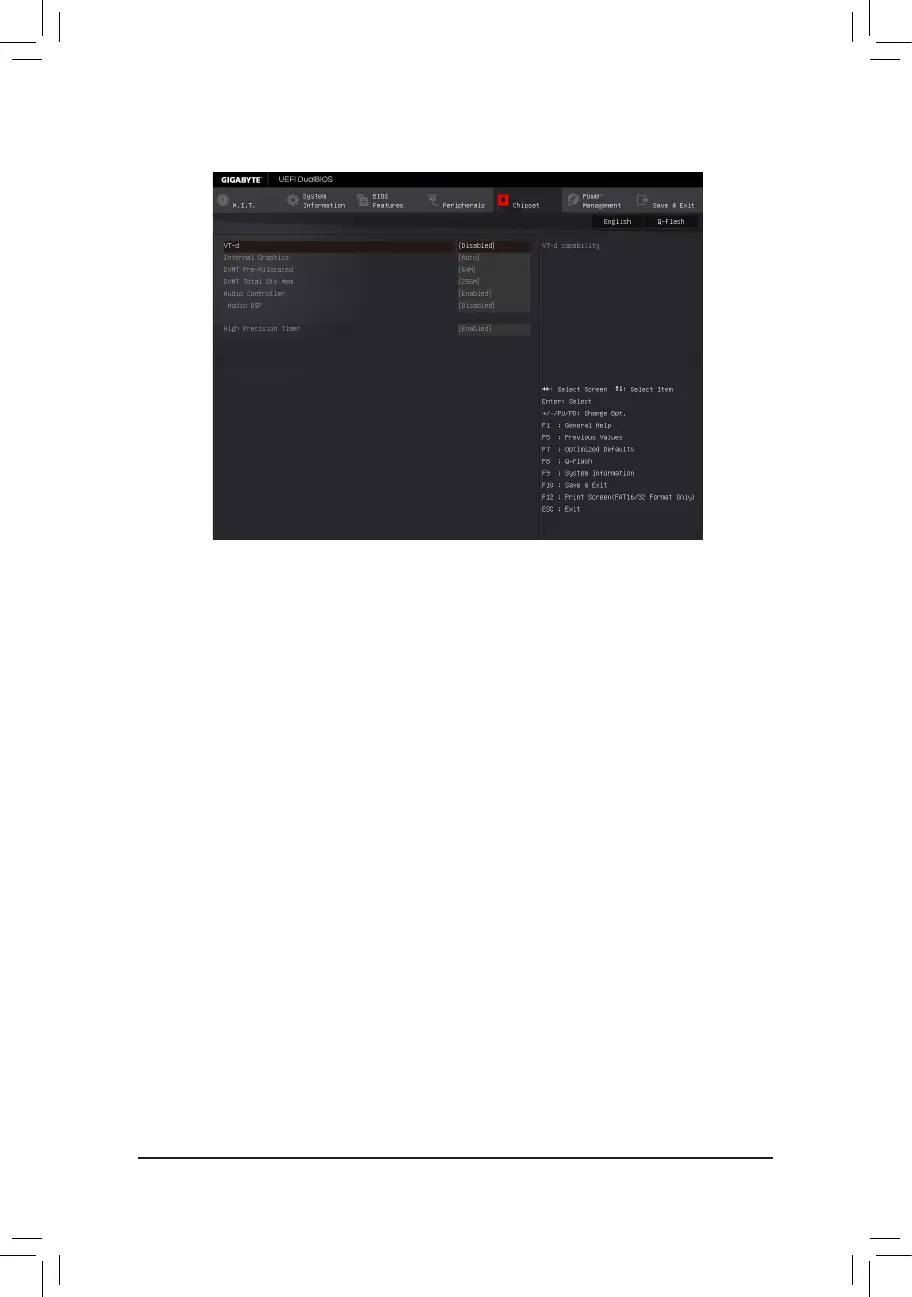

Gigabyte GA-Z170N-Gaming 5 User Manual

& VT-d
(Note)
Enables or disables Intel
®
Virtualization Technology for Directed I/O. (Default: Disabled)
& Internal Graphics
Enables or disables the onboard graphics function. (Default: Auto)
& DVMT Pre-Allocated
Allows you to set the onboard graphics memory size. Options are: 32M~512M (Default: 64M)
& DVMT Total Gfx Mem
Allows you to allocate the DVMT memory size of the onboard graphics. Options are: 128M, 256M, MAX.
(Default: 256m)
& Audio Controller
Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to
Disabled.
& Audio DSP
Enables or disables the DSP functionality of the PCH audio unit. (Default: Disabled)
& High Precision Timer
Enables or disables High Precision Event Timer (HPET) in the operating system. (Default: Enabled)
2-7 Chipset
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
- 33 -

Gigabyte GA-Z170N-Gaming 5 Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
USB 2.0 connectors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
LAN controller	Atheros Killer E2201
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC1150
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z170
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	16 Mbit
Cables included	SATA
Bundled software	Norton Internet Security (OEM version) Intel Smart Response Technology Intel Wireless Display

Weight and Dimensions

Width	170 mm
