General| ECC | No |
|---|---|
| Non-ECC | Yes |
| Memory voltage | 1.5 V |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR3-SDRAM |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 1066, 1333, 1600 MHz |
| Supported memory module capacities | 16GB, 1GB, 2GB, 4GB, 8GB |
| System bus rate | 5 GT/s |
| Processor socket | LGA 1155 (Socket H2) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core i3, Intel Core i5, Intel Core i7 |
| Maximum number of SMP processors | 1 |
| USB 2.0 connectors | 3 |
| Number of SATA III connectors | 2 |
| Number of Parallel ATA connectors | 0 |
| USB 2.0 ports quantity | USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them. |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Audio chip | VIA VT2021 |
| Cooling type | Passive |
| Component for | PC |
| Motherboard chipset | Intel Z77 |
| PC health monitoring | CPU, FAN, Temperature |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Compatible operating systems | Windows 7/XP |
| RAID levels | 0, 1, 5, 10 |
| Supported storage drive interfaces | SATA II, SATA III |
| Cables included | SATA |
| Graphics card | HD Graphics |
| OpenGL version | 3.2 |
| DirectX version | 11 |
| Maximum graphics card memory | 1696 MB |
| Parallel processing technology support | 2-Way CrossFireX, 2-Way SLI, LucidLogix Virtu |
| PCI Express slots version | 2.0, 3.0 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| Controller 2nd interface type | Marvell 88SE9172 |
| LAN controller | - |
| Wi-Fi standards | Not supported |
| Networking features | 10/100/1000 Mbit/sec |
| Ethernet interface type | Gigabit Ethernet |
| BIOS type | EFI AMI |
| ACPI version | 2.0a |
| BIOS memory size | 64 Mbit |
Weight and Dimensions| Depth | 244 mm |
|---|---|
| Width | 305 mm |
Guidelines and procedures to follow before installing the motherboard and components.
Step-by-step instructions for correctly installing the CPU and CPU cooler onto the motherboard.
Guidelines for installing memory modules, including dual channel configuration.
Instructions for correctly installing an expansion card into the motherboard's expansion slot.
Menu for configuring CPU/memory frequencies, voltages, and system status.

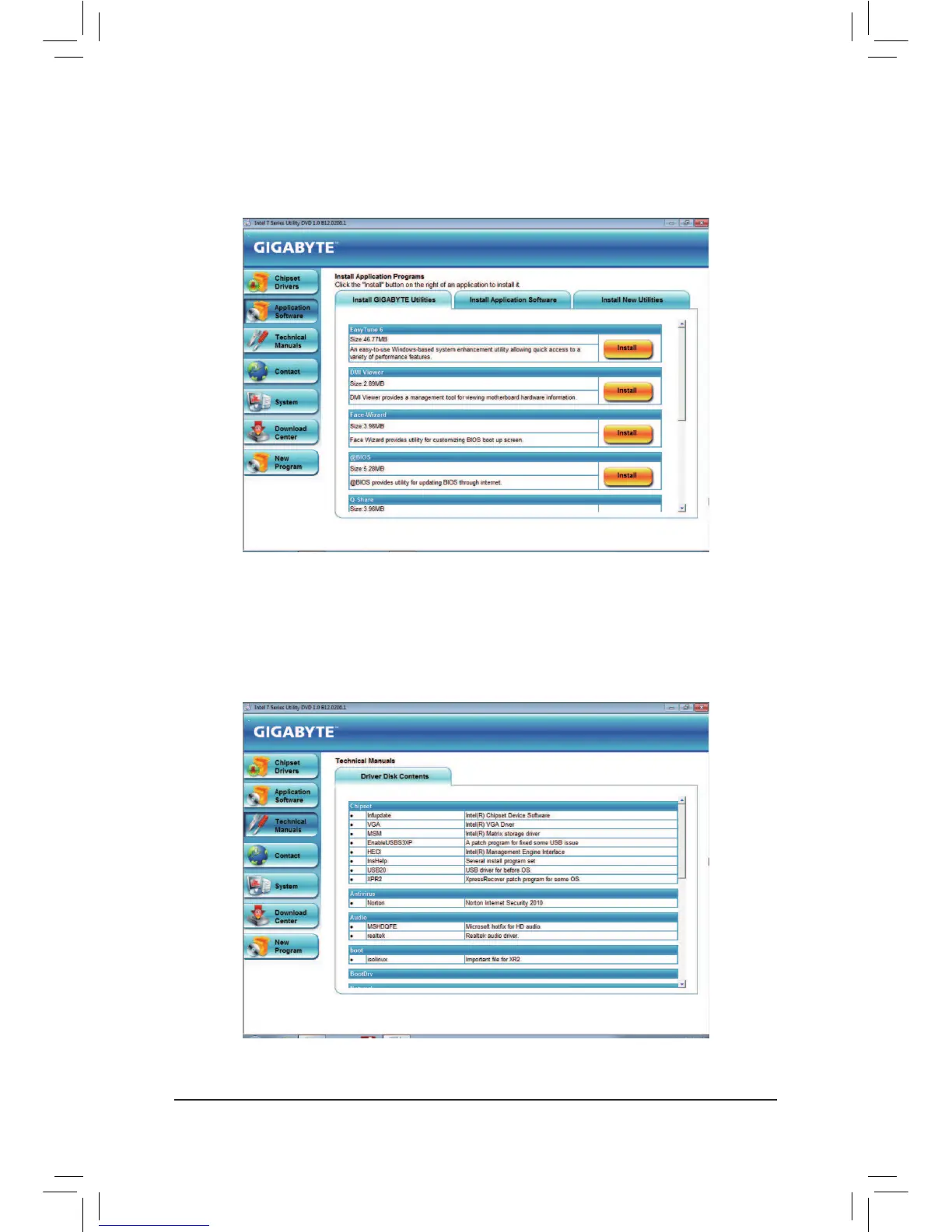

Instructions for installing essential chipset drivers from the motherboard disk.
Utility for fine-tuning system settings and overclocking in Windows.
Information on configuring SATA hard drives, including RAID levels and setup.
Steps to configure SATA controllers and RAID mode for the Intel Z77 chipset.
Steps to configure SATA controllers and RAID mode for the Marvell 88SE9172 chipset.
Guide for installing SATA RAID/AHCI drivers and operating systems like Windows 7/XP.
General section for troubleshooting common issues encountered with the motherboard.
Answers to common questions regarding motherboard functionality and setup.
A flowchart-based procedure to diagnose and solve system startup problems.
