Gigabyte MZ01-CE1 User Manual

- 19 - Hardware Installation
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

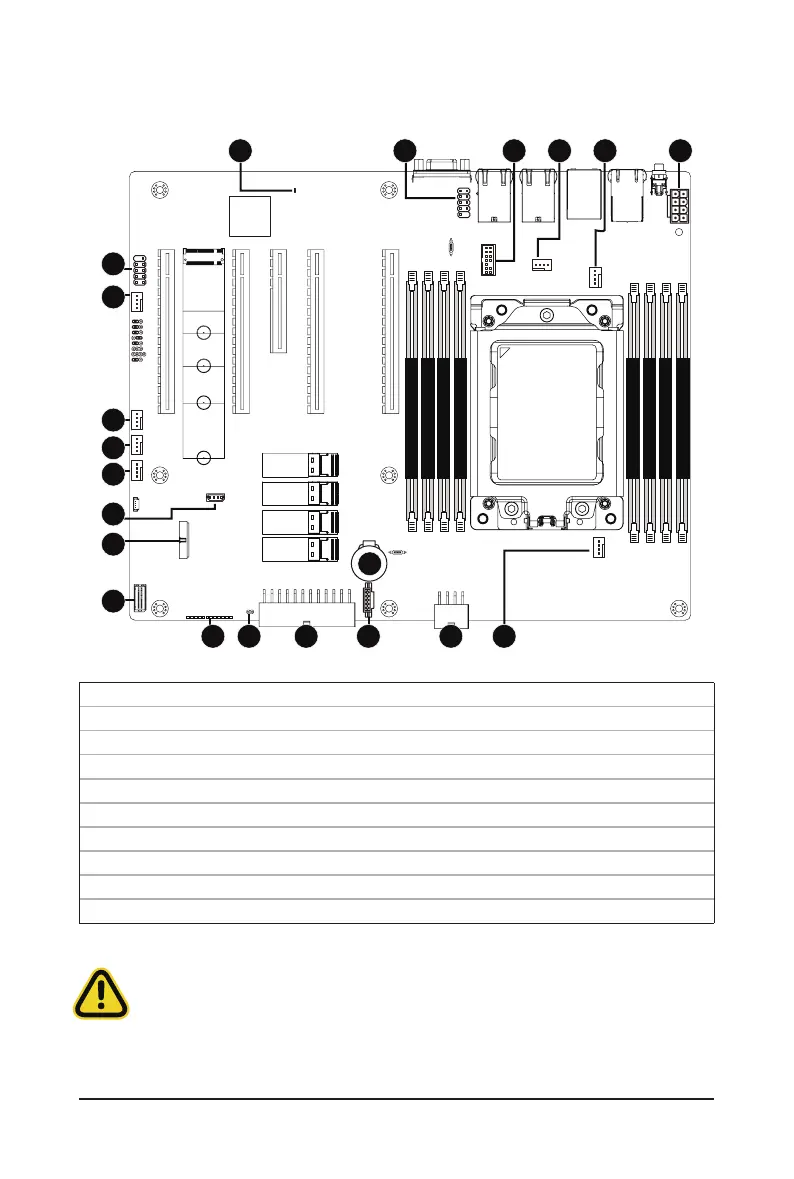

1) ATX1 11) PMBUS 21) CASE_OPEN
2) P12V_AUX1 (for CPU) 12) F_USB3
3) P12V_AUX2 (for Memory) 13) COM1
4) CPU0_FAN 14) COM2
5) SYS_FAN1 15) FP_1
6) SYS_FAN2 16) BP_1
7) SYS_FAN3 17) IPMB
8) SYS_FAN4 18) TPM_LPC
9) SYS_FAN5 19) BAT1
10) SYS_FAN6 20) LED_BMC
21
21
CPU
DIMM_P0_G0 DIMM_P0_H0 DIMM_P0_E0
DIMM_P0_F0
DIMM_P0_B0
DIMM_P0_A0
DIMM_P0_D0
DIMM_P0_C0
1
2
3 4
56
8
7
9
10
13
12
11
14
15
16
17
18
19
20
21
