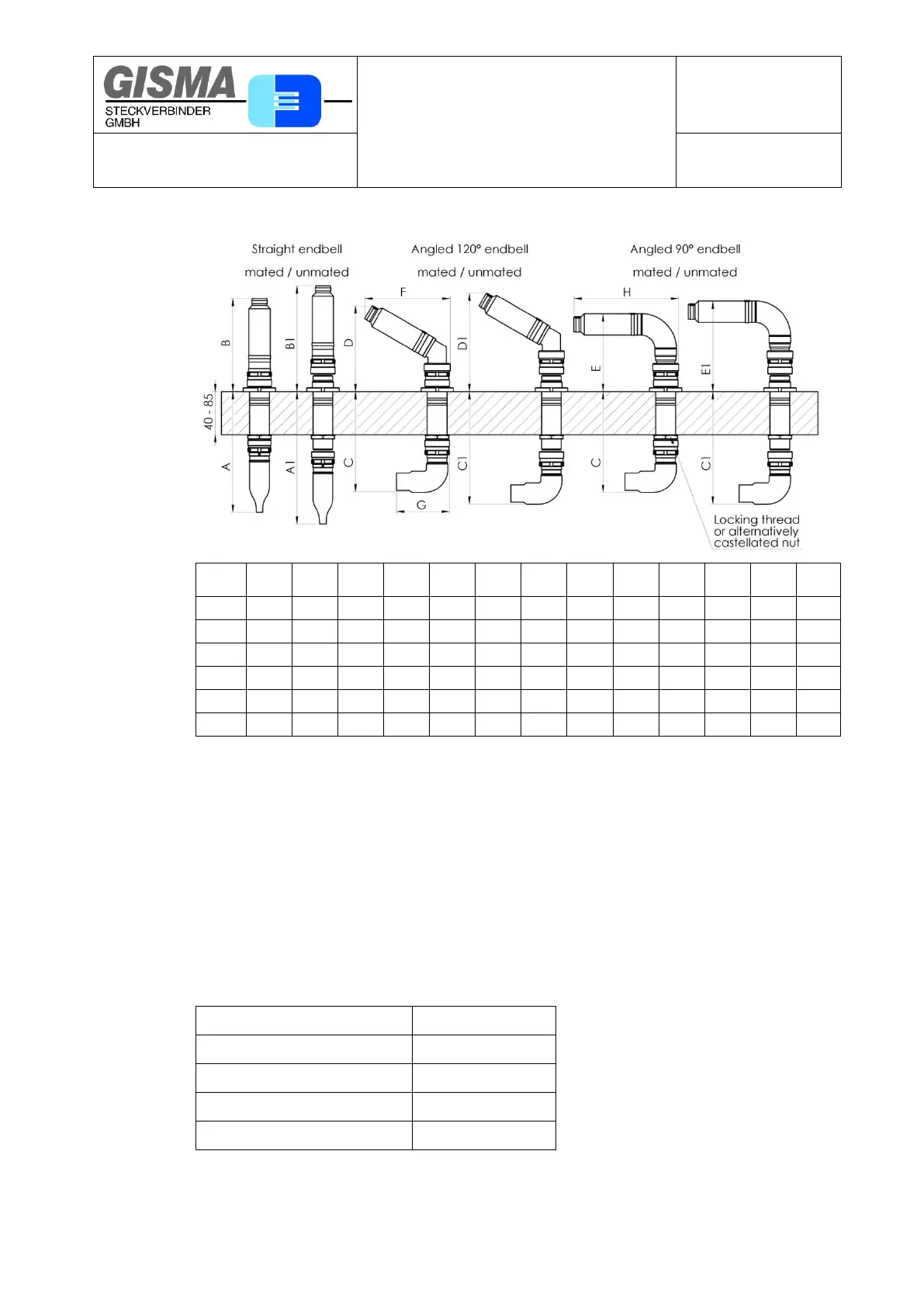

 Mounting dimensions of connector assembly (plugs, PHP and Endbells)
Size
A
A1
B
B1
C
C1
D
D1
E
E1
F
G
H
1
196
219
172
197
196
219
158
183
112
137
148
66
198
2
196
219
172
197
196
219
158
183
112
137
148
67
198
3
208
231
180
205
208
231
164
189
145
170
162
78
205
4
276
302
215
240
276
302
181
206
183
208
182
110
244
5
284
309
215
240
284
309
191
216
193
218
204
112
266
7
291
323
250
280
241
268
255
285
199
227
250
147
280
ATTENTION: all details are approximately measurements
7.3.7. Sealing spare parts
 Replaceable O-rings and profile sealing rings on pressure hull penetrator
We offer a customised sealing package to our customers. Please contact our sales
department for suitable selection. Based on the part number you will get information and a
quotation about the right set immediately. Only with proper maintenance the extraordinary
longevity of our pressure hull penetrator can be guaranteed.
The tools in the following list are necessary for mounting O-rings and profile sealing rings.
The document MB BR22-2177 provides detailed information about the mounting.
Pressure hull penetrator
Tool kit
Size 1-3
22.94.014
Size 4-5
22.94.015
Size 7
22.94.016
Size 5 hybrid
22.94.026
