1 Technical Information
1.1 IMPORTANT NOTICE
The boiler is supplied in one carton, which includes a fittings and
documentation pack, see diagram 6.1.
The flue and fixing jig are supplied seperately.
This boiler is for use only on G20 natural gas, but the 30cxi may
be converted for use on G31 gas (Propane L.P.G.).
Where no British Standards exists, materials and equipment
should be fit for their purpose and of suitable quality and
workmanship.
The installation of this boiler must be carried out by a competent
person in accordance the rules in force in the countries of
destination.
Manufacturer's instructions must not be taken as overriding
statutory requirements.
1.2 Statutory Requirements
In GB the installation of the boiler must be carried out by a
competent person as described in the following regulations:
The manufacturer's instructions supplied.
The Gas Safety (Installation and Use) Regulations.
The appropriate Buildings Regulations either The Building
Regulations, The Building Regulations (Scotland),The Building
Regulations (Northern Ireland).
The Water Fittings Regulations or Water byelaws in Scotland.
The Health and Safety at Work Act, Control of Substances
Hazardous to Health (COSHH).
The Current I.E.E. Wiring Regulations.
Where no specific instructions are given, reference should be
made to the relevant British Standard Code of Practice.
In IE, the installation must be carried out by a competent person
and installed in accordance with the current edition of I.S.813
"Domestic Gas Installations", the current Building Regulations
and reference should be made to the current ETCI rules for
Electrical Installation.
In GB the following Codes of Practice apply:
BS4814, BS6798, BS5440 Part 1 and 2, BS5546 Part 1,
BS5449, BS6891, BS6700, BS7074 Part 1 and 2, BS7593,
BS7671.
In IE: I.S.813, BS5546, BS 5449, BS 7074, BS 7593.
Manufacturer's instructions must not be taken as overriding
statutory requirements.
Note: For further information, see the current issue of the
Building Regulations, approved document L1 ( in the UK) and
the references:
1) GIL 59, 2000: Central heating system specification (CheSS)
and
2) GPG 302, 2001: Controls for domestic central heating
system and hot water. BRECSU.
450
334
176
C
L
FLUE
87
C
L
BOILER
14
77
48
44
86
156
134
177
18
22
FLUE
CENTRE LINE
THIS DIMENSION CAN BE
INCREASED TO 600mm MAX.
SAFETY
DISCHARGE
DRAIN
76
715
12848
GAS

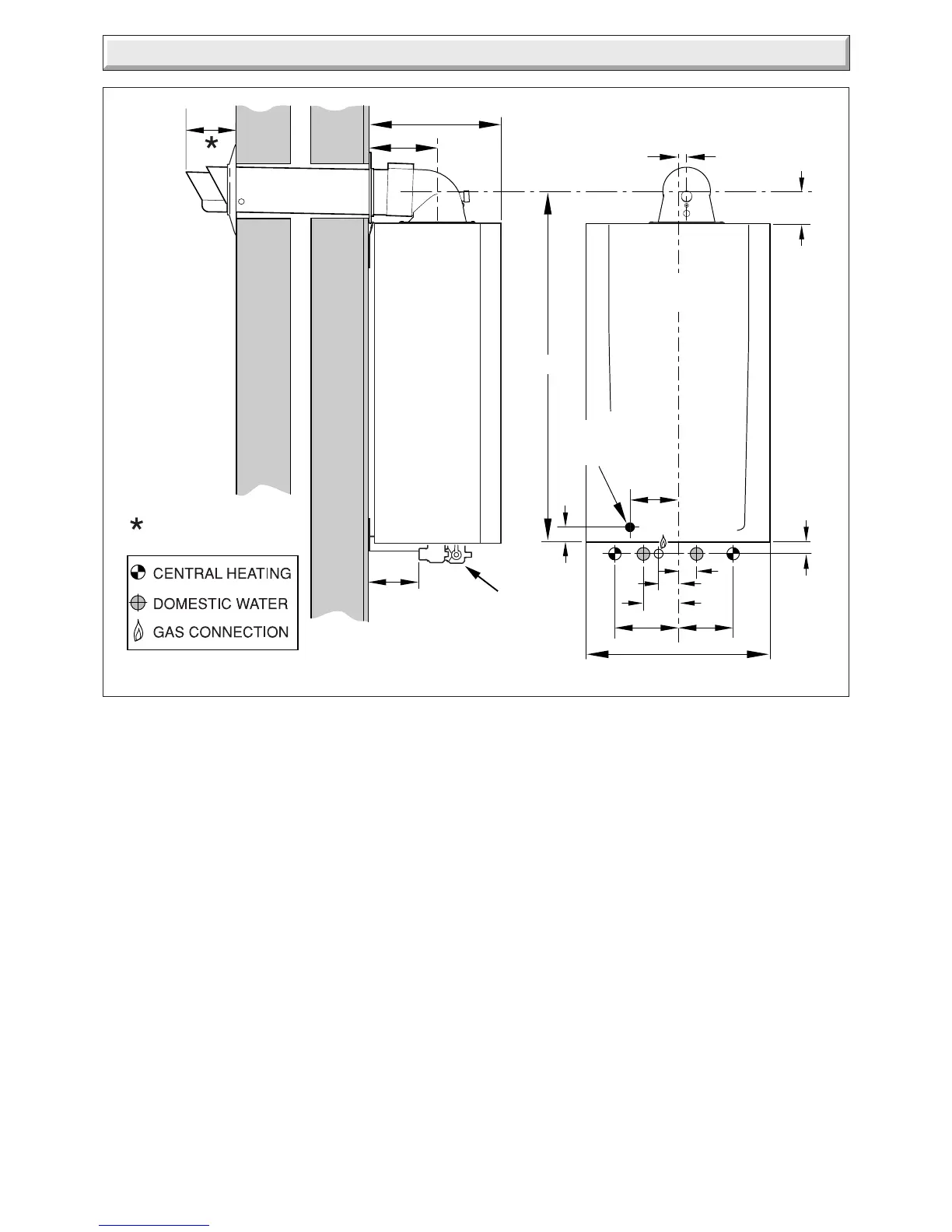

Diagram 1.1GENERAL ARRANGEMENT
