Goodwe GW6.5K-ET User Manual

19
03 Product IntroductionUser Manual V1.1-2022-12-20

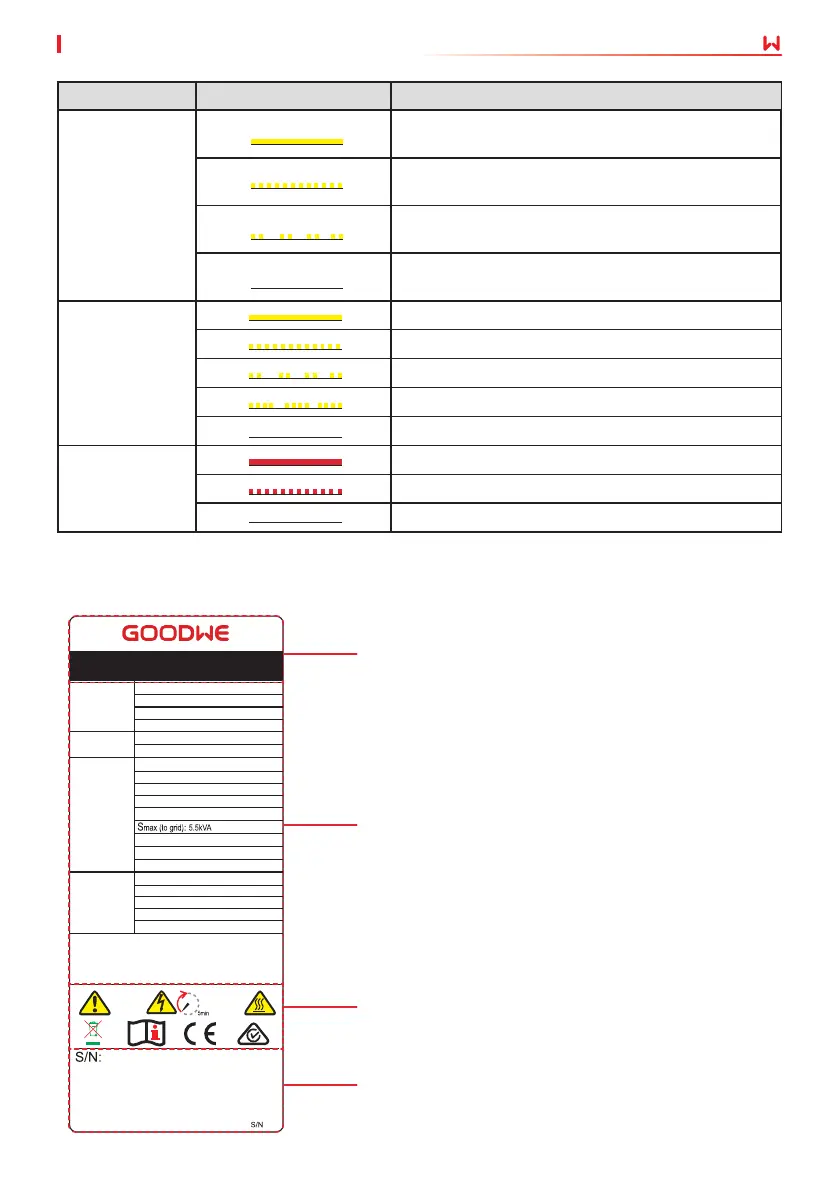

3.5.4 Nameplate
The nameplate is for reference only.
GW trademark, product type, and product model
Technical parameters
Safety symbols and certication marks
Contact information and serial number
Model
Product: Hybrid Inverter
U
bat t1 80...600Vd.c.,:

Li-Ion
: GW5KN-ET
P.F. ~1,0.8cap...0.8ind, : TOperating:-35~60℃
Non-isolated, IP66, protective Class I, OVC DCII/ACIII
Battery
On-grid
Back-up
U
DCma x:1000Vd.c .
UMPP:200...850Vd.c .
I
DC,max:16/16Ad.c.
ISC PV:21.2/21.2Ad.c.
Ibatt,max (C/D):25/25Ad.c.
UAC,r : 380V3L/N/P E ~ 400/ a.c .
fAC, r:50/60Hz
IAC,max (to grid):8.5Aa.c.
Sr (to grid):5kVA
IAC,max (from grid):15.2Aa.c.
S
r (from grid):10kVA
Smax (from grid):10kVA
PV Input
PAC, r: 5kW
U AC,r 40 0 : / a.c.380V
fAC, r:50/60Hz
IAC,max:8.5Aa.c.
Sr:

5kVA
Smax:5kVA
Good We Technologie s Co., Ltd .
No.90
Zijin Rd., New District , Suzhou , 21501 1, China
E-mail:service@goodwe.co m
Indicator Status Description
COM
ON = Both BMS communication and meter
communication are ok.
BLINK 1 = BMS communication fails; meter
communication is ok.
BLINK 2 = BMS communication is ok; meter
communication fails.
OFF = BMS communicationand meter
communication fail.
WiFi
ON = WiFi connected / active.
BLINK 1 = WiFi is resetting.
BLINK 2 = WiFi is not connected to the router.
BLINK 4 = WiFi server problem.
OFF = WiFi is not active.
FAULT
ON = A fault has occurred.
BLINK 1 = Back-up output overload / reduce load.
OFF = No fault.

Goodwe GW6.5K-ET Specifications

General

Model	GW6.5K-ET
Rated Output Power	6500 W
Max. DC Input Voltage	1000 V
Number of MPPT Trackers	2
Rated AC Output Power	6500 W
Max. AC Apparent Power	6500 VA
Max. AC Output Current	28.3 A
Nominal AC Voltage	230 V
AC Voltage Range	180 - 280 V
Nominal Grid Frequency	50 / 60 Hz
Total Harmonic Distortion (THD)	< 3%
Max. Efficiency	98.3 %
Euro Efficiency	97.5 %
DC Switch	Yes
Protection Degree	IP65
Cooling Method	Natural convection
Warranty	5 years
Operating Temperature Range	-25 °C to +60 °C
Communication	RS485 / WiFi
MPPT Voltage Range	200-800 V
Power Factor	> 0.99 (adjustable ±0.8)
