06 Electrical ConnectionUser Manual V1.1-2022-12-20
No. Color BMS
1
Orange
and White
485_A2
2 Orange
NC
3
Green and
White
485_B2
4 Blue CAN_H
5
Blue and
White
CAN_L
6 Green NC
7
Brown
and White
NC
8 Brown NC
No. Color EMS
1 Orange and White 485_A
2 Orange 485_B
3 Green and White 485_A
4 Blue NC
5 Blue and White NC
6 Green 485_B
7 Brown and White NC
8 Brown NC
NOTICE
Connect the EMS communication cable to the 18PIN communication terminal block when a
18PIN terminal block is applied. Connect the EMS communication cable as following when the
18PIN terminal block is not applied.

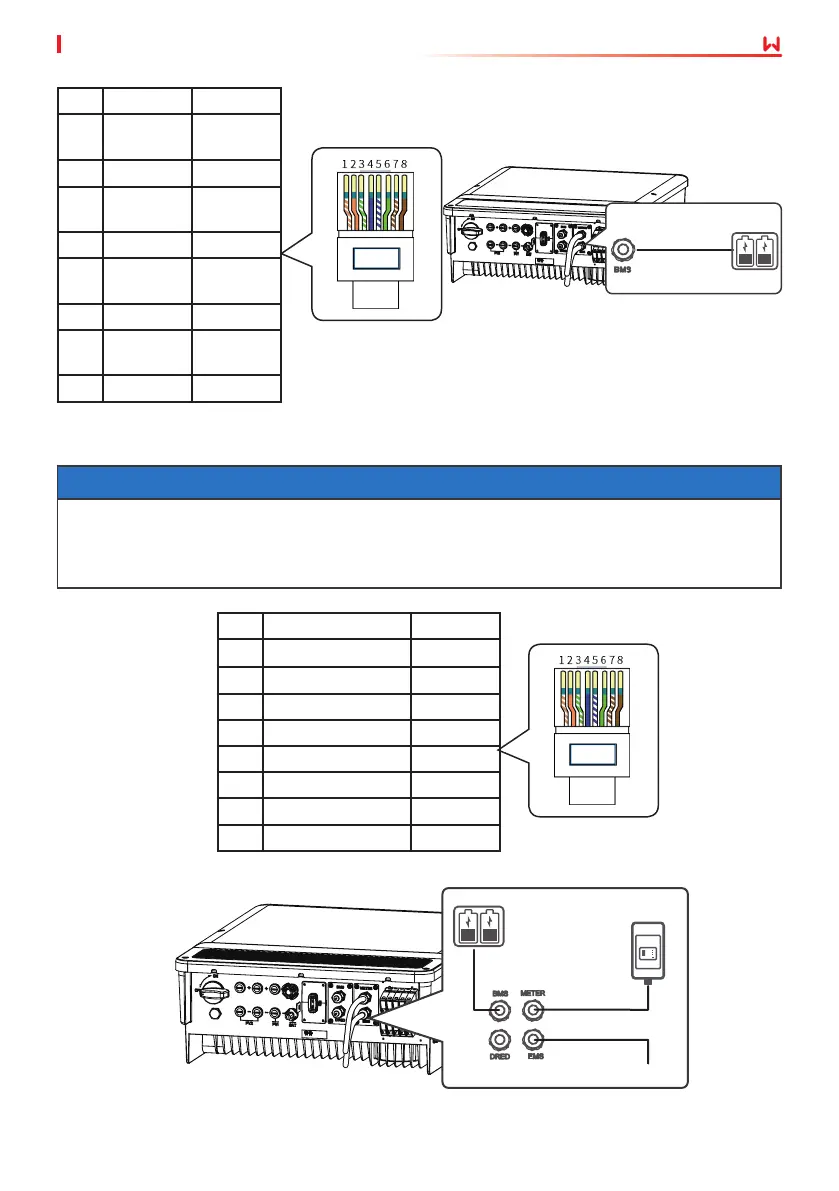

6.7.4 Connecting the EMS Communication Cable
To Battery
Smart
meter
Battery
To smart meter
To EMS device
To battery
