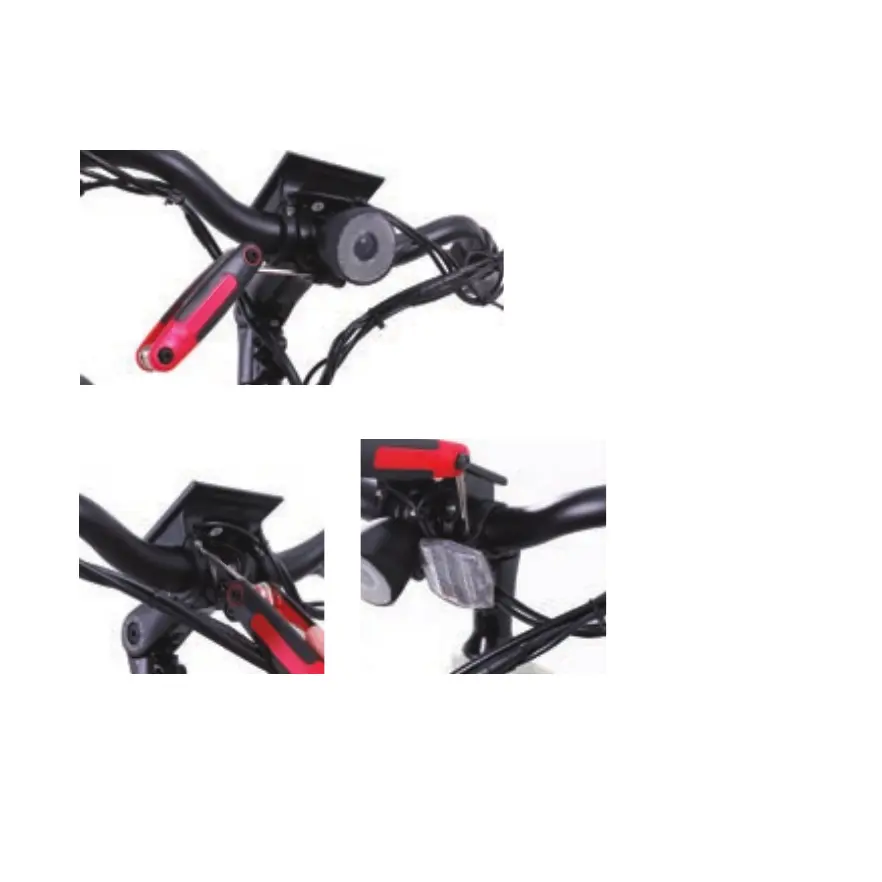

Front Reflector Installation.
Remove the screw and place bracket
over the handlebar on the left side
closest to the monitor, if you are sitting
on the seat. Tighten and secure the screw.
Monitor Installation.
Remove bolts and place monitor on
handlebar with a bracket on each side of
the stem. Make sure that you can clearly
see the monitor while sitting the the seat.
Insert the bolts - tighten and secure.
You will need the 3mm allen key
on the multi tool to install.
You will need the +/phillips screw driver
in the multi tool to install.
You will need the +/phillips screw driver in the multi tool to install.
Light Installation.
Remove allen bolt and wrap
bracket around center of stem.
Reapply bolt and using the 4mm
allen key tighten and secure. Adjust
light angle for preference.
12
