Grant Squirrel SQ2010 SERIES User Manual

SQ2010 28507 Version 6
Page 14
EN

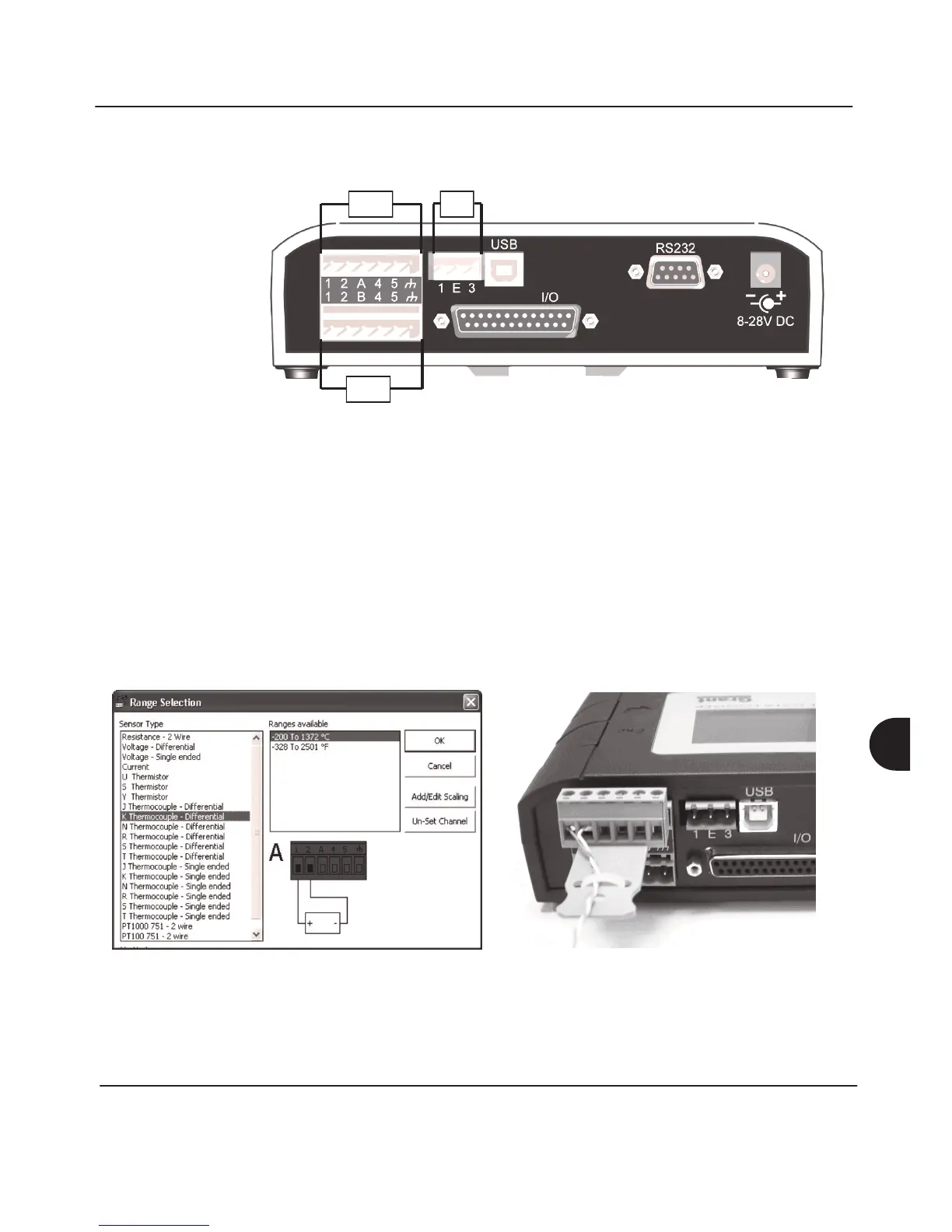

7. Connections
As the wiring configuration is dependant upon the sensor type used, it is displayed in SquirrelView
during the setup. Follow the wiring diagram to attach the required sensor. If you would like to print
the diagrams in more detail or view at a later stage select „File > Print from Logger Setup‟.
Analogue Inputs
The example below shows the actual K type differential thermocouple sensor connected to the 2010
logger from the wiring diagram to the left.
Rear view of
ANALOGUE
connectors
BLOCK
A
BLOCK
E
BLOCK
B
