Special features of the GR-16 HoTT receiver
Connection 6
Depending on the settings in the "6CH FUNCTION" line of the "RX
DATAVIEW" page of the telemetry menu, the output 6 can be used
to connect RC components or a circuit for voltage measurement.
Carry out the changeover as described in the instructions for the
transmitter or the SMART-BOX.
• SERVO
The connection 6 is suitable for the operation of RC components.
• BATT V
After switching as described before, a DC voltage off max. 25,5 V
can be displayed instead of the receiver voltage. This way it is
possible to monitor the main battery voltage without using exter-
nal sensors. The ESCs S3082 and S3083 have this switch already
included.

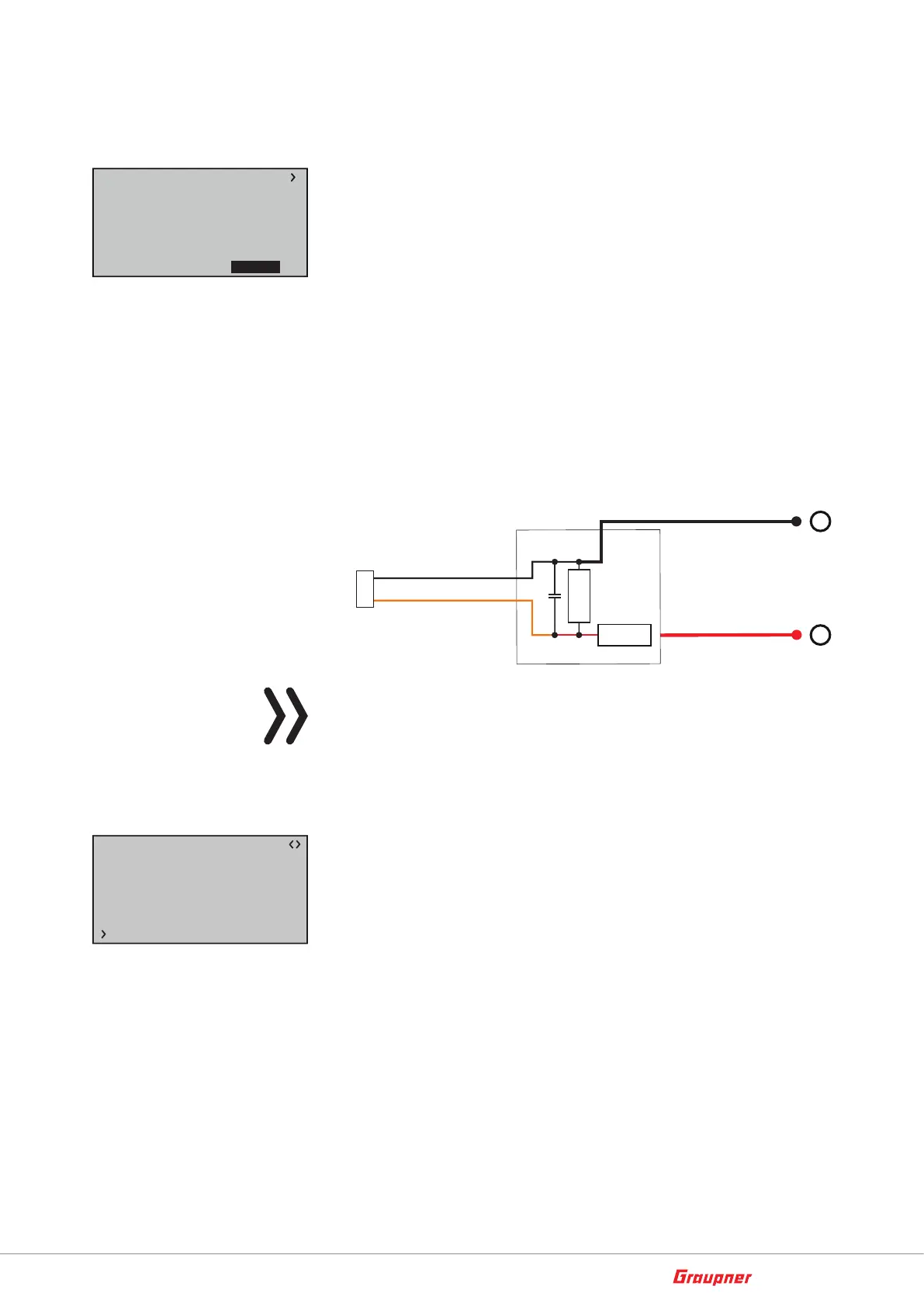

s + –
50 mm
100nF
2k7Ω
22kΩ
max. 25,5 V =
100 mm
–
+
Attention
Never connect a power supply with an output voltage higher than
8,4 V directly to a connection port of the receiver! The receiver and
all connected devices would be immediately destroyed.
Connection 7
• SERVO
Input 7 is suitable for operating RC components.
• SUMDIN
Port 7 is suitable as input to a SUMD signal provided by receivers
GR-16, GR-24 or GR-32.
ശ If a GR-16, GR-24, GR-32 receiver is set to „SUMD“, as
described below under „Input 8“ (GR-16 and GR-24) or
„Input S“ (GR-32), or any combination of these combined
with a receiver set to „SUMDIN“, creates a simple satellite
connection with the receiver set to SUMDIN as the primary
receiver.
ശ If two of these receivers are set on SUMDIN as well as on
SUMD and connected crosswise with two satellite cables, a
reciprocal satellite connection is created:
RX DATAVIEW V7.07
S–STR100% R–TEM.+28°C
L PACK TIME 00010msec
R-VOLT :05.0V
L.R-VOLT:04.5V
S–QUA100%S–dBM–030dBM
6CH FUNCTION:SERVO
RX CURVE V7.07
TYPE : A
CURVE1 CH : 02
TYPE : A
CURVE2 CH : 03
TYPE : B
CURVE3 CH : 04
7CH FUNCTION:SERVO
