Four
Bolt
Mounting
Attachments
Requires:
19075E1-
Front
Drive
Kit
11601E1-
Front
Adapter
Kit
]. Mount
the
Front
Drive
Kit on
the
tractor.
2.
Start
the
Double
Joint
Assembly on
the
forward drive
shaft
and on
the- adapter
of the
adapter
Assembly.
Slide
thc Assembly
in
place
in the
latches,
close
latches
and secure
with
hairpin cotters.

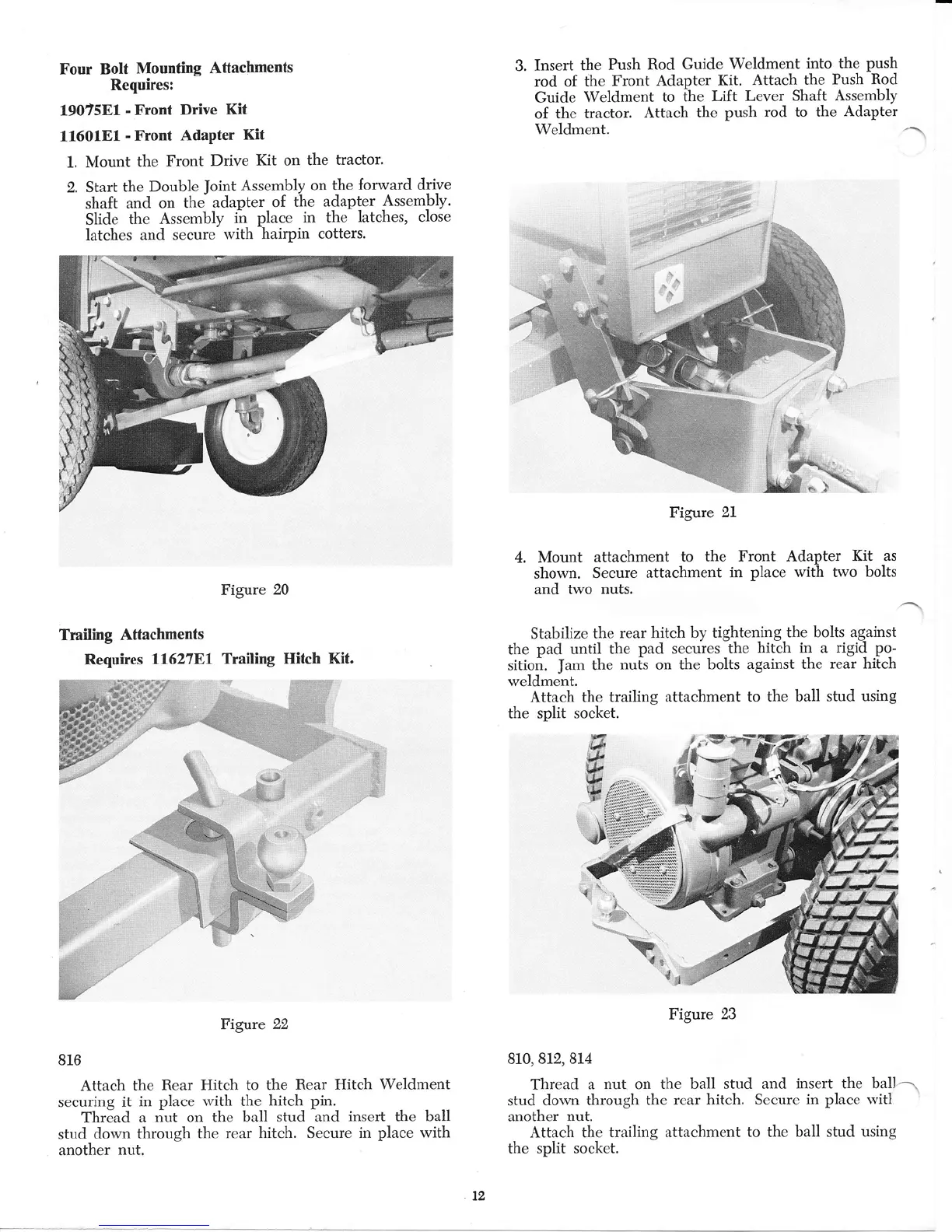

Figure
20
Trailing Attachments
Requires
ll627El
Trailing Hitch
Kit.
Figare 22
816
Attach
the
Rear Hitch to the
Rear Hitch
Weldment
securing
it
in
place with the
hitch
pin.
Thread
a
nut
on
the ball
stud and
insert the ball
stud
down
through
the
rear hitch. Secure
in
place
with
another
nut.
Insert
the
Push
Rod
Guide Weldment
into the
push
rod of
the
Front Adapter
Kit.
Attach the
Push
Rod
Guide
Weldment
to ihe
Lift Lever
Shaft
Assembly
of the
tractor,
Attach the
push
rod to the
Adapter
Weldment.
Figure
2l
4. Mount
attachment
to the Front Adapter
Kit as
shown.
Secure attachment
in place with two
bolts
and two nuts.
Stabilize
the
rear
hitch by tightening
the bolts against
the
pad until
the
pad
secures
the
hitch in a
rigid po-
sition.
Jam
the
nutl on the
bolts against
the
rear hitch
weldment.
Attach
the
trailing attachment
to the ball
stud using
the split socket.
Figure
23
810,812,
814
Thread
a
nut
on
the ball stud and
insert the ball
-"-
stud
down through
the
rear hitch, Secure
in place rvitl
another
nut.
Attach the
trailing atttrchment
to
the
ball stud using
the split socket.
