TIPPING THE SEAT FORWARD
Remove clamping knob or nut and tip seat
forward to access the battery and engine. Tip
seat back and secure to unit with clamping
knob or nut (figure 9).
SEAT ADJUSTMENT
Model 915034
Loosen mounting hardware and slide seat
forward or backward to desired position, then
tighten mounting hardware (figure 11).
Models 915036, 038, 040
Push adjustment lever to the left and slide seat
forward or backward to desired position, then
release adjustment lever.
IMPORTANT:
Proper maintenance can
prolong the life of unit. The following chart
shows the recommended service schedule.
Refer to the maintenance instructions in the
Engine Manual for additional information.
NOTE:
To access the cooling system, fuel
filter, oil drain petcock, and oil fill/dipstick the
seat must be tipped forward (see
Tipping The
Seat Forward
on page 13).
NOTE:
To access the air filter on models
915038, 040, open the hood (see Opening
and Closing the Hood on page 16).
OE0115

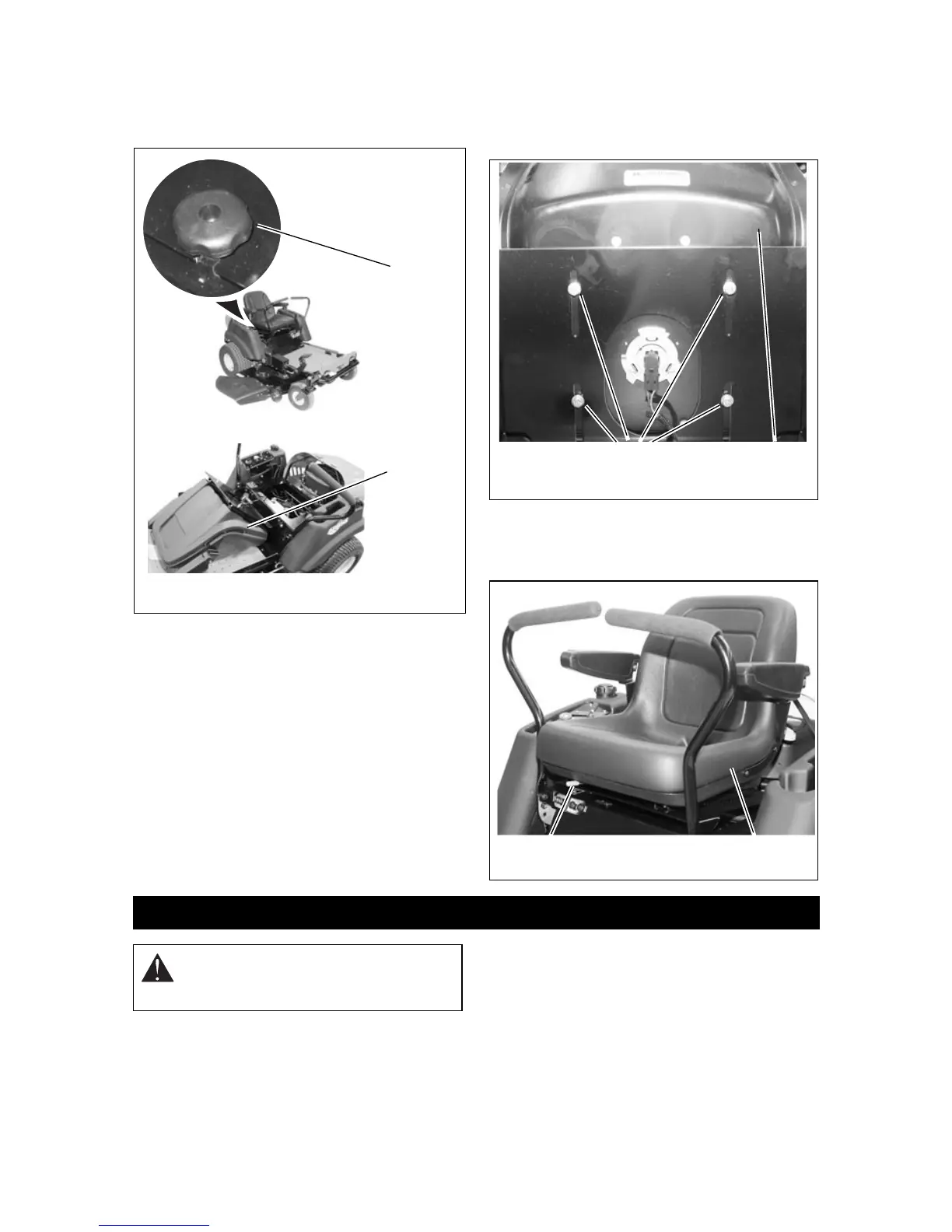

Figure 9
Clamping
Knob or
Nut
Seat
Tipped
Forward
Figure 10
OE0032
Seat
Mounting Hardware
OE0031
Figure 11
SeatAdjustment Lever
MAINTENANCE SCHEDULE
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
To Next Page
