Gravely 915034 - ZT1640 User Manual

GB - 16

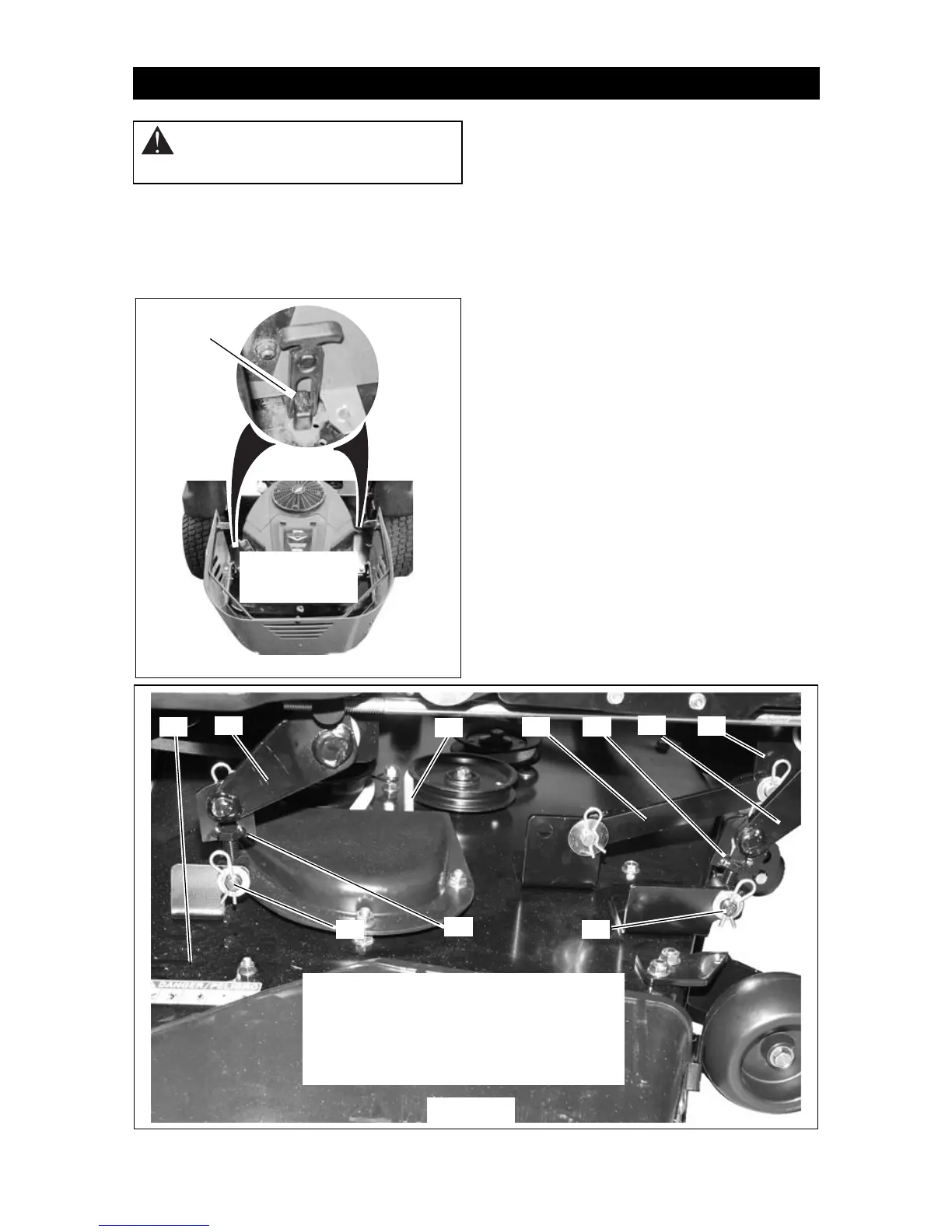

OPENING AND CLOSING THE
HOOD
Unhook the two rubber latches to tip hood
back. Close hood and secure with latches
(figure 13).
REMOVE MOWER DECK
Remove (Figure 14)
1. Remove PTO belt (item 3) from electric
clutch (see PTO Belt Replacement on
page 21).
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Remove guide arm (item 4) from front
mount bracket (item 6).
3. Remove rear lift link (item 8), rear
trunnion (item 9), front lift link (item 5),
and front trunnion (item 7) from mower
deck (item 1) and mower lift (item 2).
4. Slide mower deck (item 1) out from under
unit.
Install (Figure 14)
1. Slide mower deck (item 1) under unit.
NOTE: Perform step 2 and 3 for the right and
left side of unit.
2. Install rear lift link (item 8), rear trunnion
(item 9), front lift link (item 5), and front
trunnion (item 7) on mower deck (item 1)
and mower lift (item 2).
3. Install guide arm (item 4) on front mount
bracket (item 6).
4. Install PTO belt (item 3) (see PTO Belt
Replacement on page 21).
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
Figure 13
OE1000
Rubber Latch
Hood Tipped
Open
OE0045
8
Figure 14
541
2
2
79
1. Mower Deck
2. Mower Lift
3. PTO Belt
4. Guide Arm
5. Front Lift Link
6. Front Mount
Bracket
7. Front Trunnion
8. Rear Lift Link
9. Rear Trunnion
3
6
