7 - 25
7.8 ELECTRIC CLUTCH
To remove electric clutch:
1. Remove belt.
2. Remove bolt and washers at end of shaft.
3. Clutch should slide off shaft.
4. Remove and inspect square key.
Replace clutch in reverse order.
NOTE:
Coat shaft with anti-sieze before placing clutch
on shaft.
7.9 WHEEL REMOVAL
To remove wheels:
1. Jack unit to lift wheels off the ground.
2. Remove axle nut and washer.
3. Remove belts from pulleys.
NOTE:
The Pro 100 has one belt.
4. Loosen bolts from inside of brake drum.
5. The wheel will be loose from the pulleys and can
be slid from the axle.
6. Assemble in reverse order.

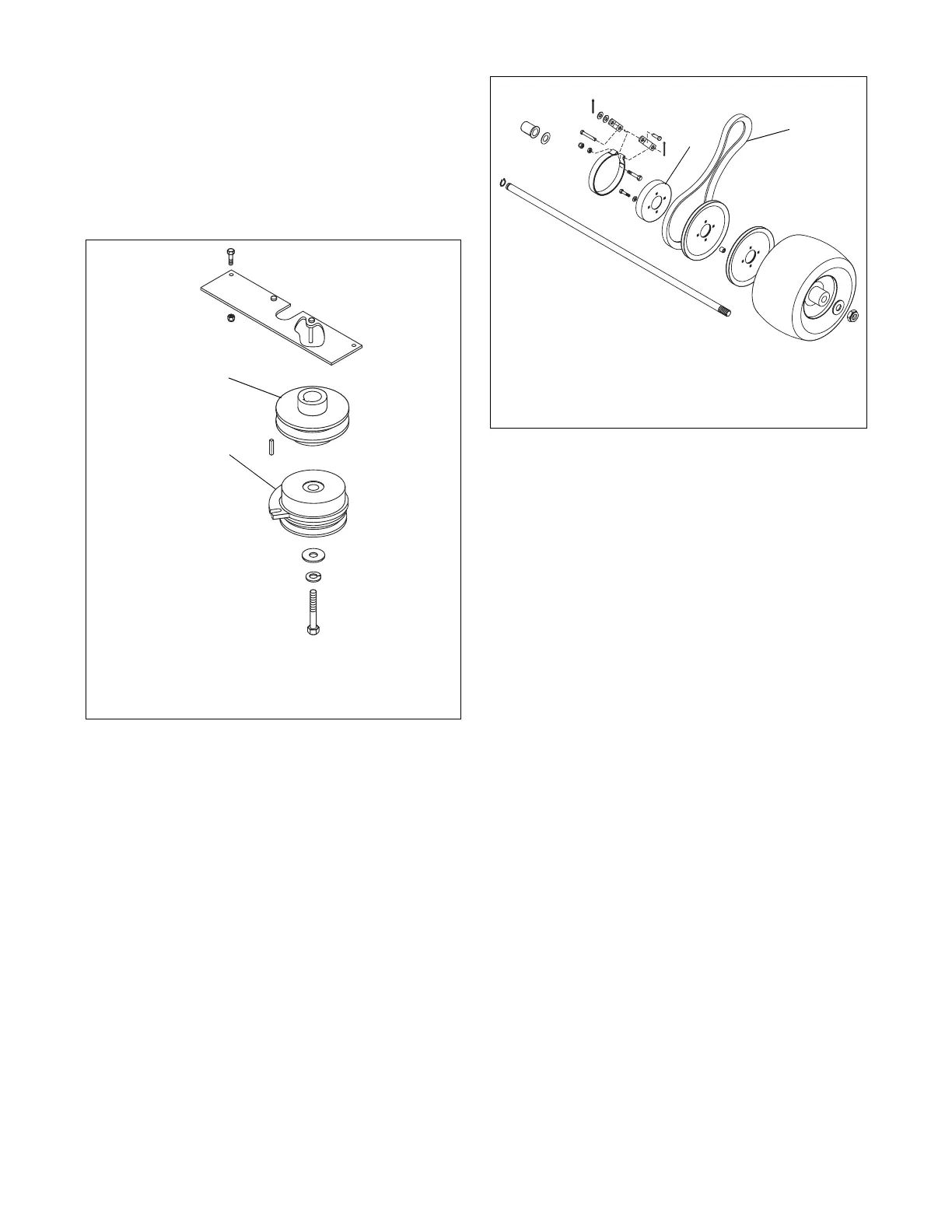

1. Sheave
2. Electric Clutch
Figure 23
1
2
PG0821
1. Brake Drum
2. Wheel Drive Belt
Figure 24
1
2
