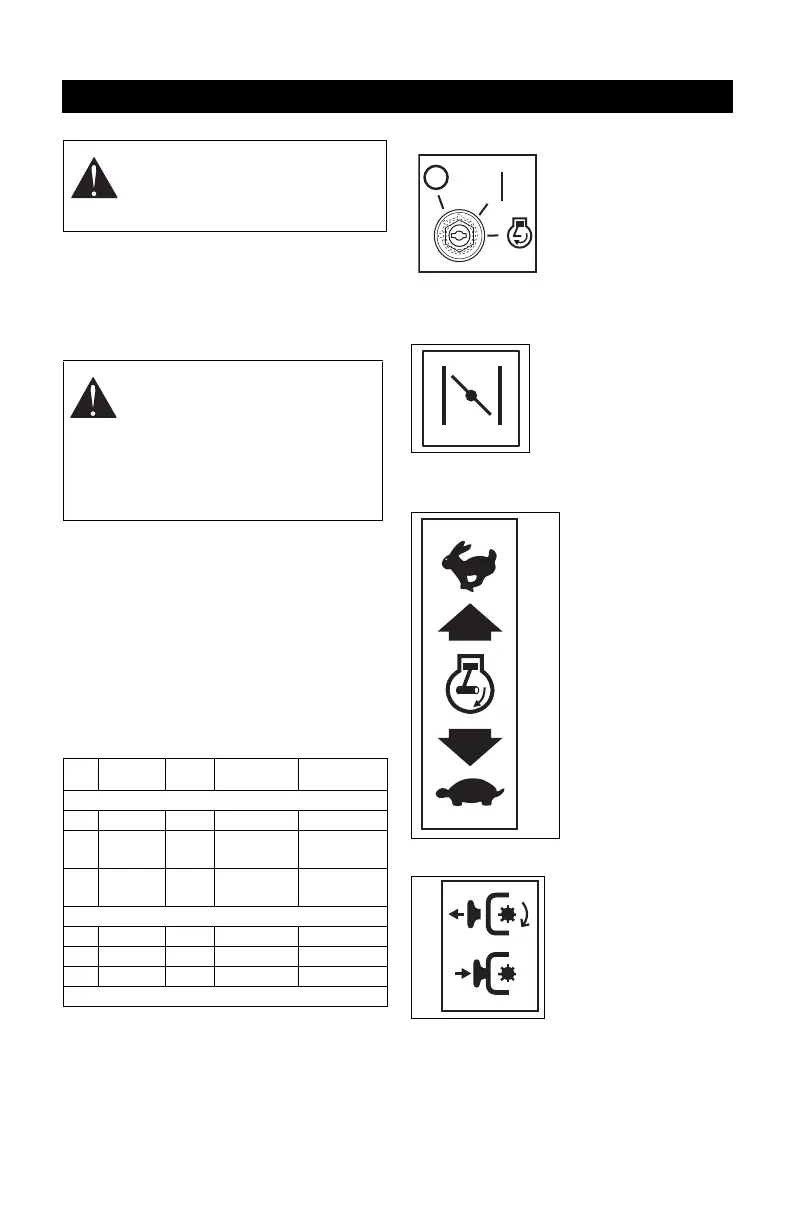

GB - 13
CONTROLS AND FEATURES
See figure 4 for Controls and Features
locations.
Safety Interlock System
Perform the following tests to ensure the
safety interlock system is working properly. If
the unit does not perform as stated, contact
your Gravely dealer for repairs.
IMPORTANT: With the parking brake
engaged, the steering levers must be locked
in neutral.
IMPORTANT: With the parking brake
disengaged, the engine must not start and
the engine must shut off if the operator leaves
the seat.
Ignition Switch
Operate the ignition
switch with the
removable key. The
switch has three
positions: Off (1), Run
(2) and Start (3). See
Starting And Shutting Off
Engine on page 18 for
detailed instructions on how to start engine.
Choke Control (922210, 212, 213, 217)
Use to start a cold engine.
Push choke lever forward
to start a cold engine. Pull
the choke lever to the rear
when the engine is warm.
Throttle Lever
Changes the speed of engine.
Fast (1) – Increases
engine speed.
Slow (2) – Decreases
engine speed.
Power Take Off (PTO) Switch
Engages (1) and
disengages (2) mower
blades.
OPERATION
WARNING: AVOID INJURY. Read
and understand entire Safety
section before proceeding.
WARNING: Safety interlock
system failure and improper
operation of unit can result in
death or serious injury. Test this
system each time the unit is
operated. If this system does not
function as described, do not
operate until repairs are made.
Test Steering
Levers
PTO Parking
Brake
Engine
STARTING INTERLOCK
1 Neutral Off Engaged Starts
2 Neutral On Engaged Doesn’t
Start
3 Neutral Off
Disengaged
Doesn’t
Start
OPERATING INTERLOCK (ENGINE ON)
4* Neutral On Engaged Shuts Off
5* Neutral Off
Disengaged
Shuts Off
6* Neutral Off Engaged On
* Operator lifts off seat.
To Next Page
