EN - 18

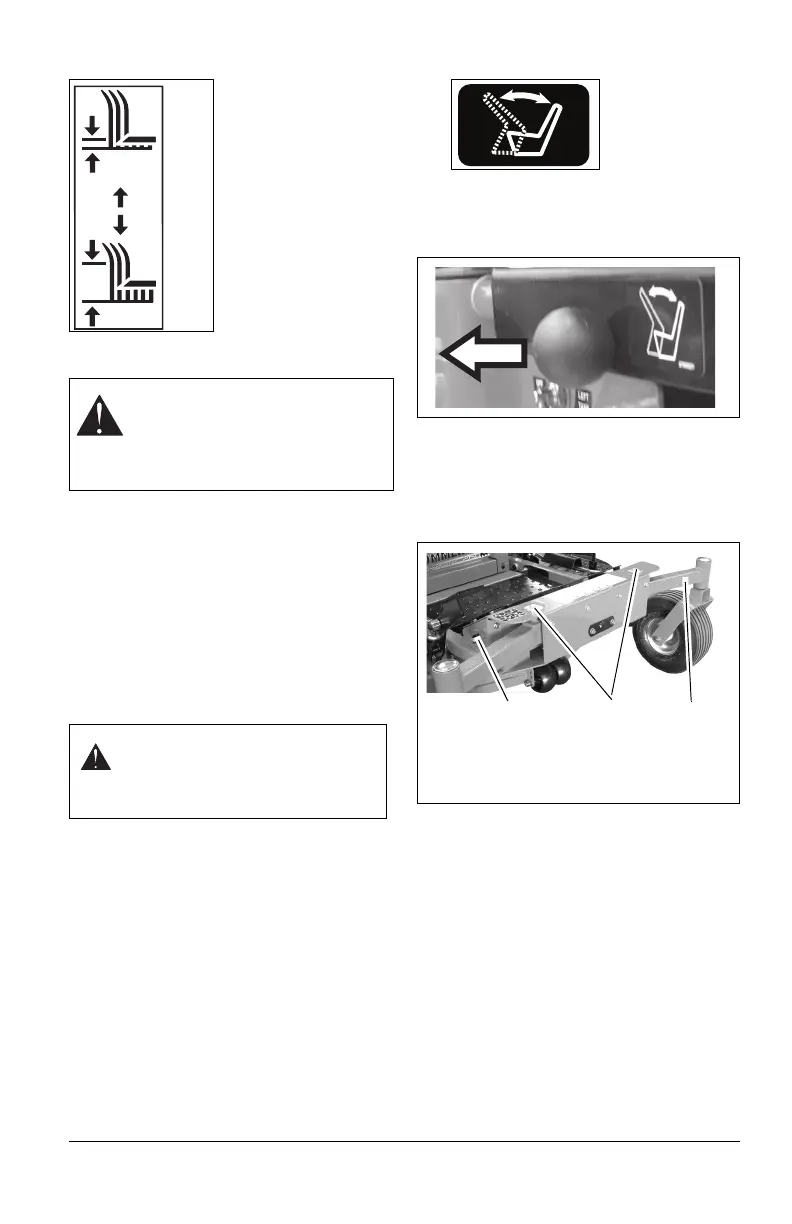

Mower Lift Lever
Raises and lowers
mower deck.
To lower (1) – Move
mower lift lever
forward.
To raise (2) – Move
mower lift lever
rearward.
Cylinder Stops
Ensure the same cutting height after raising
mower deck to clear an obstacle. Cylinder
stops are stored on a post behind hydraulic
lift cylinder and come in two sizes: 11/32" and
11/1" (8.73 mm and 17.5 mm).
1. Remove cylinder stops from post and
snap onto lift cylinder rod.
2. Push lift lever forward until cylinder rests
against cylinder stops.
SEAT ADJUSTMENTS
To adjust seat forward or backward:
1. While seated, pull seat adjustment lever
outward and slide seat into desired
position.
2. Release lever and slide seat forward or
back to lock seat into position.
Seat Suspension Adjustment Knob
To make seat more firm turn knob clockwise.
To make seat less firm turn knob counter
clockwise.
Tipping Seat Forward
1.Pull seat
release knob out.
2.Tip seat
forward.
NOTICE: Seat
release knob is
spring activated. When returning seat to
upright position seat will automatically lock in
place.
Axle Locks
For a solid front axle, install axle locks on
front axle. For a pivoting front axle, remove
axle locks from front axle and store on unit
(Figure 5).
ROLLOVER PROTECTION
STRUCTURE (ROPS)
Frequently inspect ROPS and seat belt for
damage or loose hardware.
Use extreme care when working close to
fences, ditches, or on hills.
Check overhead clearance carefully before
driving under any objects.
ALWAYS wear seat belt while operating the
unit with the ROPS in the upright position.
Do not wear a seat belt while operating the
unit with the center bar in the lowered
position.
CAUTION: AVOID PINCH
POINTS. Always use the T-portion
of the cylinder stop when
removing or installing the cylinder
stops.
WARNING: Make all seat
adjustments with unit stationary,
parking brake on and engine shut
off.
07800221
1
23
Figure 5
1. Axle Lock Storage
2. Axle Locks Installed
3. Front Axle
