UNIT ASSEMBLY
Package Contents:
Mower unit and literature pack.
Preparation Checklist
Refer to the Owner/Operator manual as
required.
1. Unpack Unit – Remove shrink wrap and
packaging materials.
2. Remove Unit From Container – Open
Bypass Valves (dump valves) (See
Moving the Unit with the Engine Off on
page 22).
Push unit from container onto a level
surface. Close the bypass valves.
3. Tires – Check and adjust tire pressure
as necessary. See Specifications on
page 39.
4. Seat – Adjust as necessary to suit
operator. See Seat Adjustments on
page 19.
5. Position Steering Levers – Remove
eccentric spacers and rotate steering
levers to the operating position. Reinstall
spacers. Tighten hardware securely
(Figure 2).
6. Rollover Protection Structure (ROPS) –
raise center bar and install anti-rattle
knobs found in literature pack(see
Rollover Protection Structure (ROPS) on
page 19).
7. Battery – Remove battery from unit and
charge (See Battery on page 28).
8. Check Engine Crankcase – Check and
add oil if needed. See Engine Manual for
specifications.
9. Fill Engine Fuel Tank – Add clean fuel to
the fuel tank. DO NOT OVERFILL! See
Filling Fuel Tank on page 20.
IMPORTANT: Refer to engine manual for fuel
type.
10. Hardware – Check for loose hardware.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand entire Safety
section before proceeding.
CAUTION: Avoid injury! Explosive
separation of tire and rim parts is
possible when they are serviced
incorrectly:
• Do not attempt to mount a
tire without the proper
equipment and experience to
perform the job.
• Do not inflate the tires above
the recommended pressure.
• Do not weld or heat a wheel
and tire assembly. Heat can
cause an increase in air
pressure resulting in an
explosion. Welding can
structurally weaken or
deform the wheel.
• Do not stand in front or over
the tire assembly when
inflating. Use a clip-on chuck
and extension hose long
enough to allow you to stand
to one side.

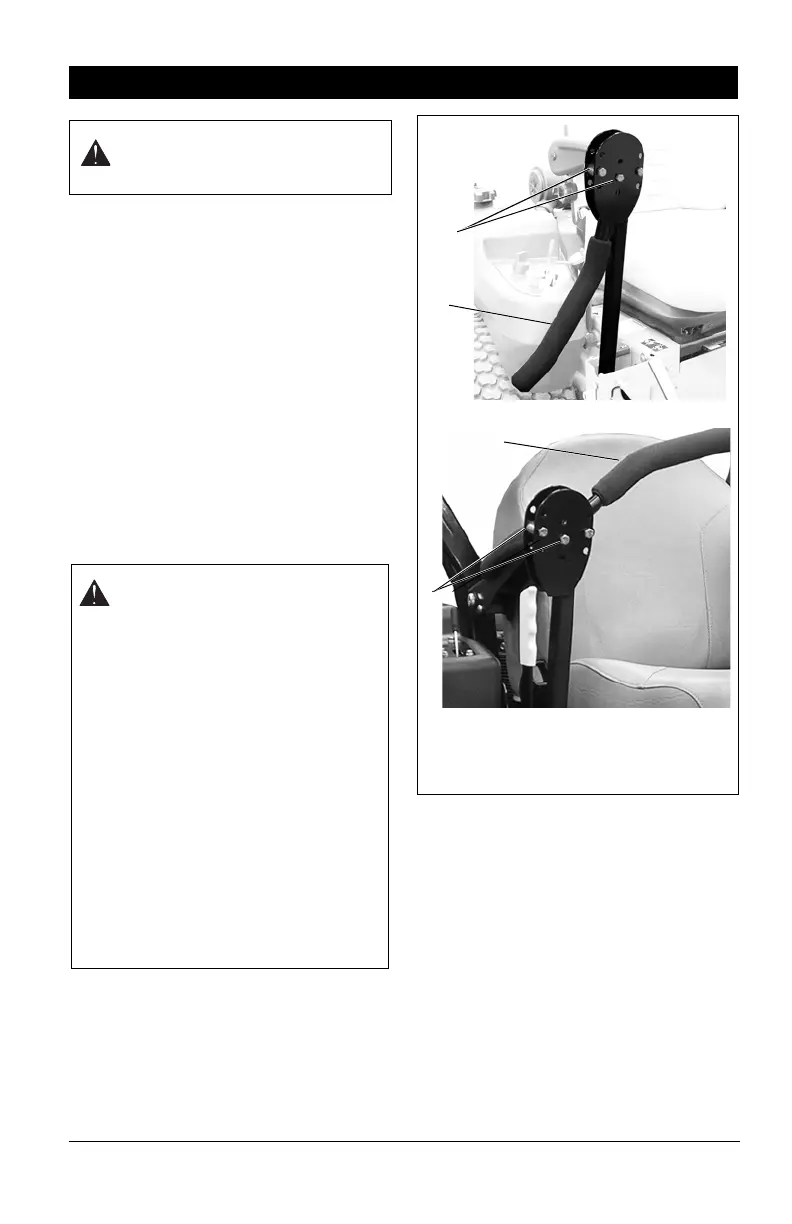

Figure 2
1. Steering Lever in Shipping Position
2. Spacers and Hardware
3. Steering Lever in Operation Position
1
2
3
2
