Gravely Pro-Turn 48 User Manual

EN - 30
Aligning the Steering Levers
(Figure 16)
1. Shut off engine. Engage parking brake.
Remove the ignition key.
2. Place seat in the service position (See
Service Position on page 25).
3. Loosen brake interlock on the same side
as steering lever to be adjusted.
4. Loosen tie rod jam nuts and turn tie rod
until steering levers are aligned.
5. Tighten jam nut on tie rod, tighten brake
interlock.
ADJUSTING THE UNIT TO TRACK
STRAIGHT
(Figure 17)
Check and adjust tire pressure. Increase
pressure on side unit tracks to. DO NOT
exceed maximum recommended tire
pressure (See Specifications on page 39).
If tire pressure adjustment does not solve
tracking problem, adjust the limiter bolts on
the stop bracket (Figure 17). Front bolts
adjust forward and rear bolts adjust reverse.
Lengthen the limiter bolt (move closer to
lever) on side which is too fast.

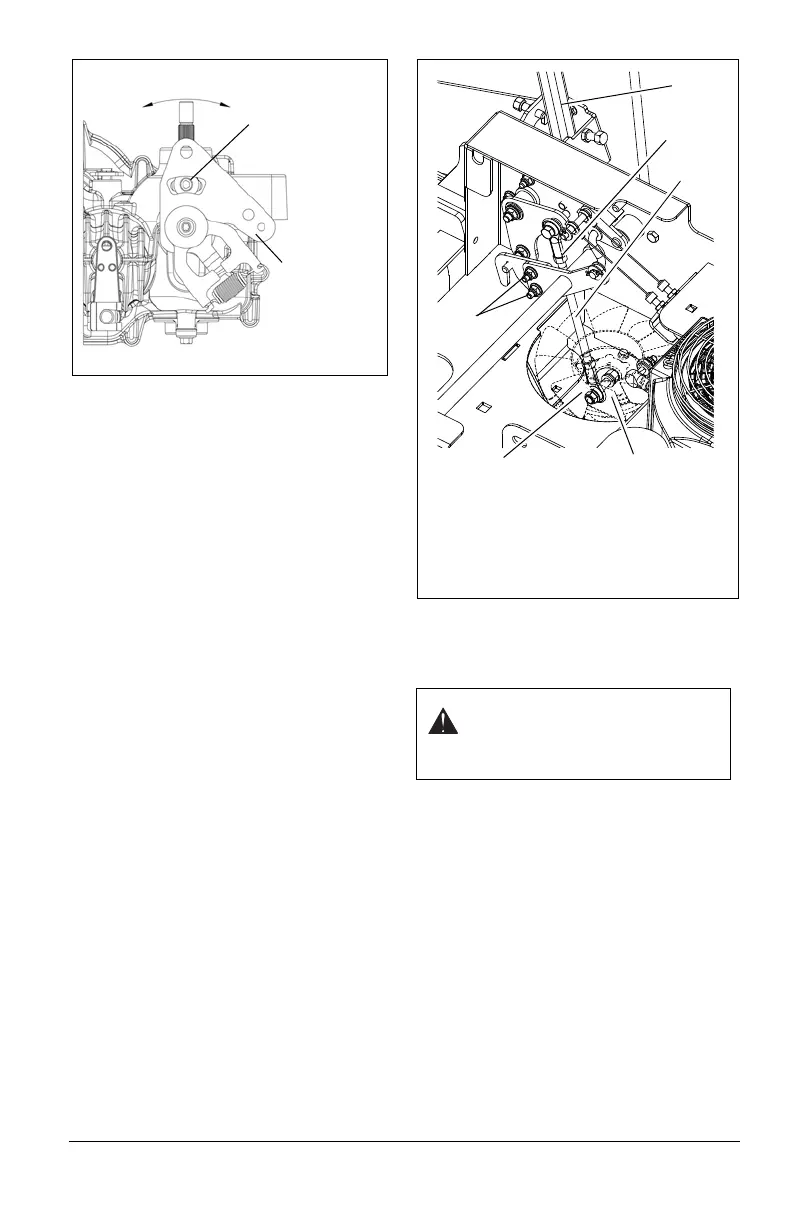

Figure 15
Axle Direction
Return to Neutral
Adjusting Screw
Speed and
Direction
Control Arm
WARNING: Prior to adjusting the
tracking of the unit, shut off
engine, engage parking brake,
and remove the ignition key.
Figure 16
1. Tie-Rod Jam Nut
2. Tie-Rod
3. Steering Lever
4. Brake Interlock
5. Hydrostatic Transmission
1
2
3
4
5
1
