GB - 17
Gravely Dealers will provide any service which may be
required to keep your unit operating at peak efficiency.
Should engine service be required, it can be obtained from a
Gravely Dealer or engine manufacturer’s authorized service
center.
SERVICE POSITIONS
IMPORTANT: Place unit on a flat level surface. ALWAYS
shut off engine, set parking brake, and remove ignition key.
Ensure unit is secure and will not tip over. When a lift is
used, strap and clamp unit to the lift.
1. Place steering levers in neutral position and set parking
brake.
2. Unhook hood latches. Firmly grasp hood frame handle
and lift to the desired service position (figure 7).
Daily Service Position: Place hood prop rod into service
slot. Ensure prop rod is engaged in service slot properly.
Full Service Position: Slowly release hood after seat
contacts foot board. Use care and be sure of your footing.
Do not step on mower deck.
3. When service is complete, lower hood, and secure with
hood latches.
SERVICE AND ADJUSTMENTS
WARNING: AVOID INJURY. Read and understand
the entire Safety section before proceeding.
CAUTION: HOT SURFACES may result in injury.
DO NOT touch engine or drive parts which are hot
from operation. Allow parts to cool before servicing.
CAUTION: When opening hood, use care to
properly engage hood prop rod into service slot. Be
sure footing is secure to accomodate weight shift of
hood when rotating to full service position.

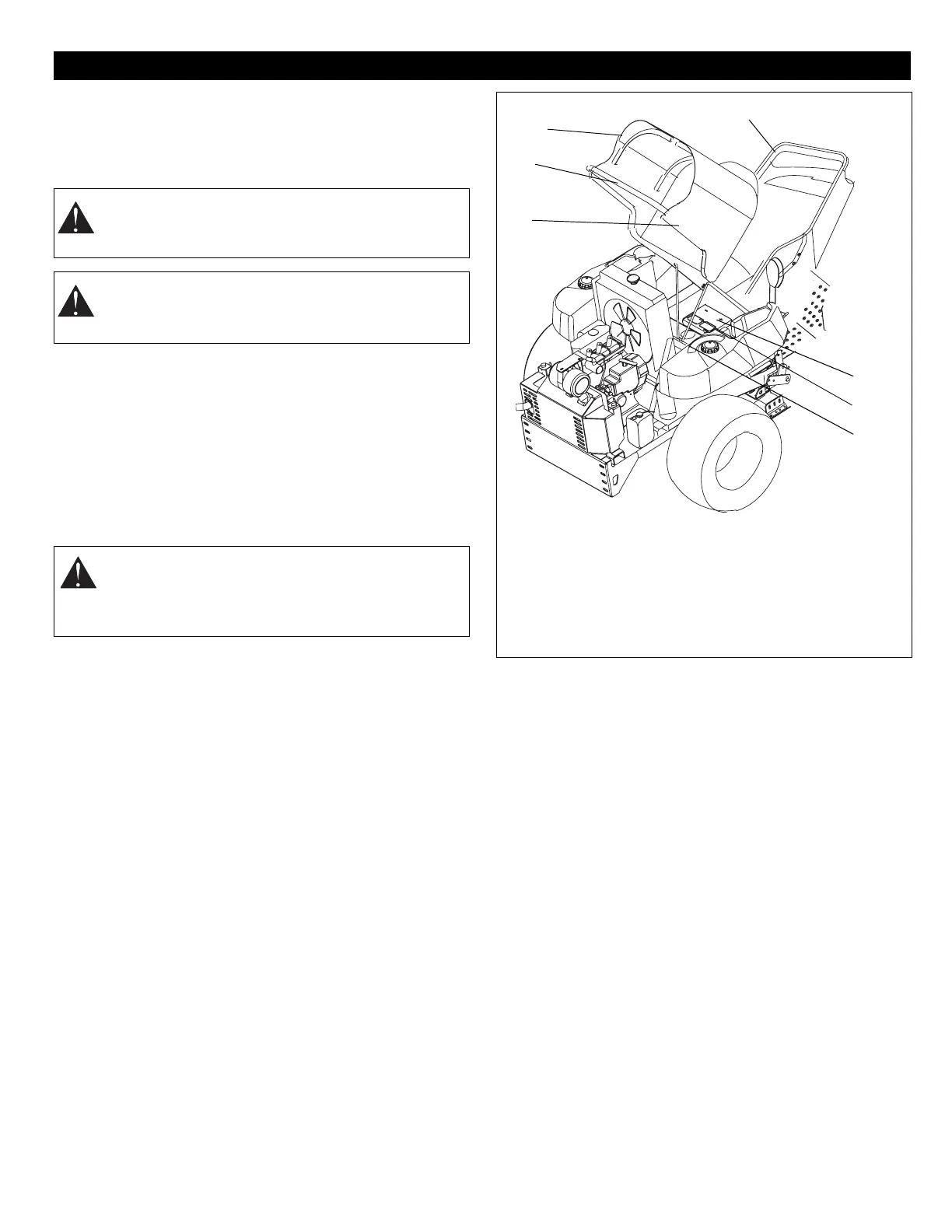

OF3225
1. Hood in Daily Service
Position
2. Hood in Full Service
Position
3. Battery
4. Hood Prop Rod
5. Service Slot
6. Hood Latches
7. Hood Frame Handle
1
Figure 7
7
5
4
3
2
6
