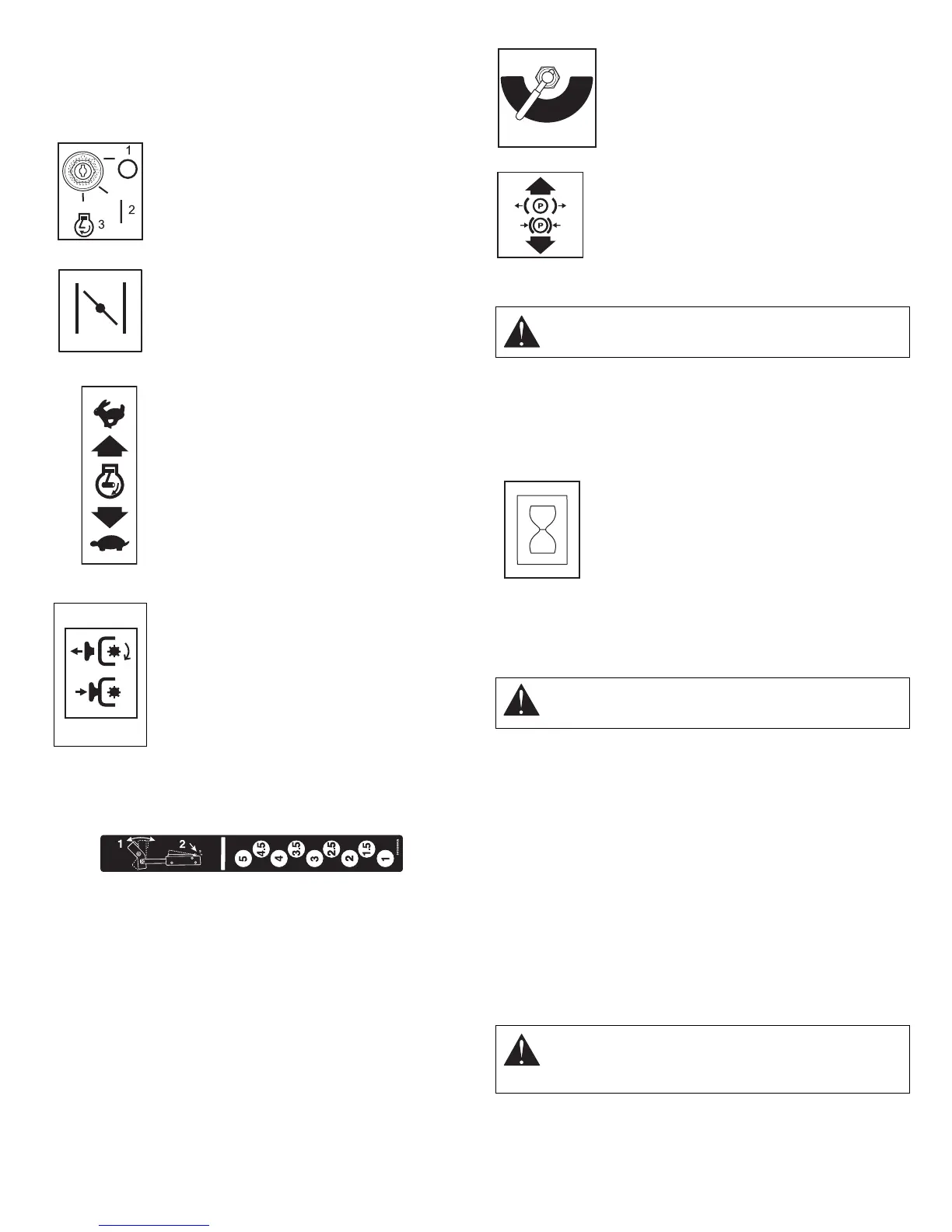

GB-11
NOTE: Aggressive turning can scuff or damage lawns. ALWAYS
keep both wheels rotating when making sharp turns. DO NOT
make turns with inside wheel completely stopped. To obtain
minimum turning radius, slowly reverse inside wheel while
moving outside wheel slowly forward.
Ignition Switch
Operate the ignition switch with the removable
key. The switch has three positions: Off (1), On
(2) and Start (3). To start the engine, turn the key
to Start, then release to On. To stop the engine,
turn the key to Off.
Choke Control
Push the choke lever forward to start a cold
engine. Pull the choke lever to the rear when
the engine gets warm.
Throttle Lever
The throttle lever changes the engine speed.
Move the throttle lever to Fast (1) to increase
engine speed. Move the lever to Slow (2) to
decrease engine speed.
Power Take Off (PTO) Switch
Power take off (PTO) switch engages and
disengages the mower blades.
Pull the power take off (PTO) switch to "On"
position to engage mower blades.
Push the power take off (PTO) switch to "Off"
position to disengage mower blades.
NOTE: The engine will not start unless the
steering control levers are in the neutral position, the PTO switch
is in the “Off” position and parking brake is set.
Mower Lift Pedal
Mower lift pedal raises and lowers mower deck for mowing or
transport.
Transport:
Push mower lift pedal all the way forward until lift lock engages.
Cutting Height:
Put cutting height adjustment pin in desired hole. Push mower lift
pedal forward and hold it while pushing down on the lift lock.
Slowly lower mower lift pedal until deck lift contacts cutting height
adjustment pin.
Fuel Shut-Off Valve
Use this valve to control fuel flow from left or
right fuel tank.
Open the valve to operate the engine. Turn the
valve to "Off" when storing or transporting the
unit.
Parking Brake Lever
1. Pull lever up to engage parking brake.
2. Push lever down to disengage parking brake.
Seat Adjustments
To adjust seat forward or backward:
1. While seated, pull seat adjustment lever outward and slide
seat into desired position.
2. Release lever and slide seat forward or back to lock seat
into position.
Hour Meter
Records total number of hours the engine has
been run.
IMPORTANT: Keep a record of Hour Meter
readings for recommended Lubrication and
Maintenance intervals.
NOTE: For accurate readings be sure Ignition Switch is OFF
when unit is not in operation.
FILLING FUEL TANK
Add fuel to Fuel Tank as needed. See your Engine Manual for
correct type and grade of fuel.
To add fuel to the fuel tank:
1. Place unit in an open or well-ventilated open area.
2. Stop the engine and allow it to cool.
3. Clean the fuel cap and the area around the fuel cap to
prevent dirt from entering the fuel tank. Remove the cap
from the fuel tank.
4. Fill the fuel tank to within 1 in. (25 mm) below bottom of
filler neck.
5. Replace fuel cap and tighten.
6. Clean up any spilled fuel.
PRE-START
1. Check Safety Interlock System
If this system does not function as described do not operate until
repairs are made.
OF1750
OF1680
OF1700
2
1
OE0261
OFF
ON
OF1700
WARNING: Make all seat adjustments with unit
stationary, parking brake on and engine shut off.
WARNING: AVOID INJURY. Read and understand
entire Safety section before proceeding.
CAUTION: Make sure all hardware is tight, all safety
devices are in place and all adjustments are made
correctly.
RIGHT
TANK
LEFT
TANK
OFF
OF1881
OF1740
