Adjust Blade Height
Level and pitch the mower with the height
adjusters on each deck lift bracket
(Figure 24).
Loosen the jam nut on the deck lift
bracket bolt about 1/4 turn to reduce
clamp load on the height adjusters.
Loosen the jam nut on the deck adjuster
bolt and then turn the bolt clockwise to
raise the deck or counterclockwise to
lower the deck. Tighten both jam nuts.
SHORT TERM
NEVER spray unit with high-pressure water
or store unit outdoors.
Inspect unit for visible signs of wear,
breakage or damage.
Keep all nuts, bolts and screws properly
tightened and know unit is in safe working
condition.
Store unit in a cool, dry protected area.
LONG TERM
Clean unit thoroughly with mild soap and low
pressure water and lubricate (See Lubricate
Unit on page 22 in Maintenance). Touch up
all scratched painted surfaces.
Remove weight from wheels by putting
blocks under frame or axle.

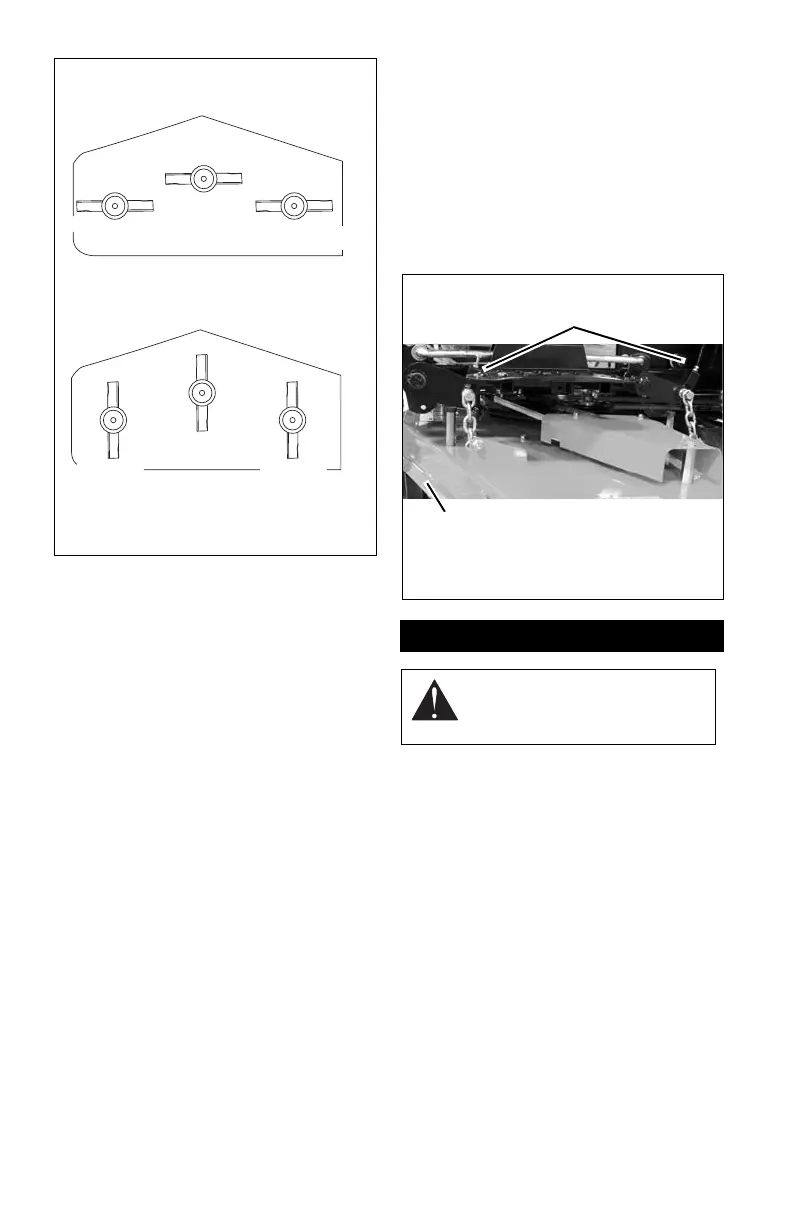

Figure 23
Blade Side-to-Side Level
Blade Front-to-Back Pitch
Front
Left
Rear
Rear
Right
STORAGE
WARNING: AVOID INJURY.
Read and understand entire
Safety section before proceeding.
Figure 24
DO NOT place blocks under
reinforcement bar.
Height
Adjusters
