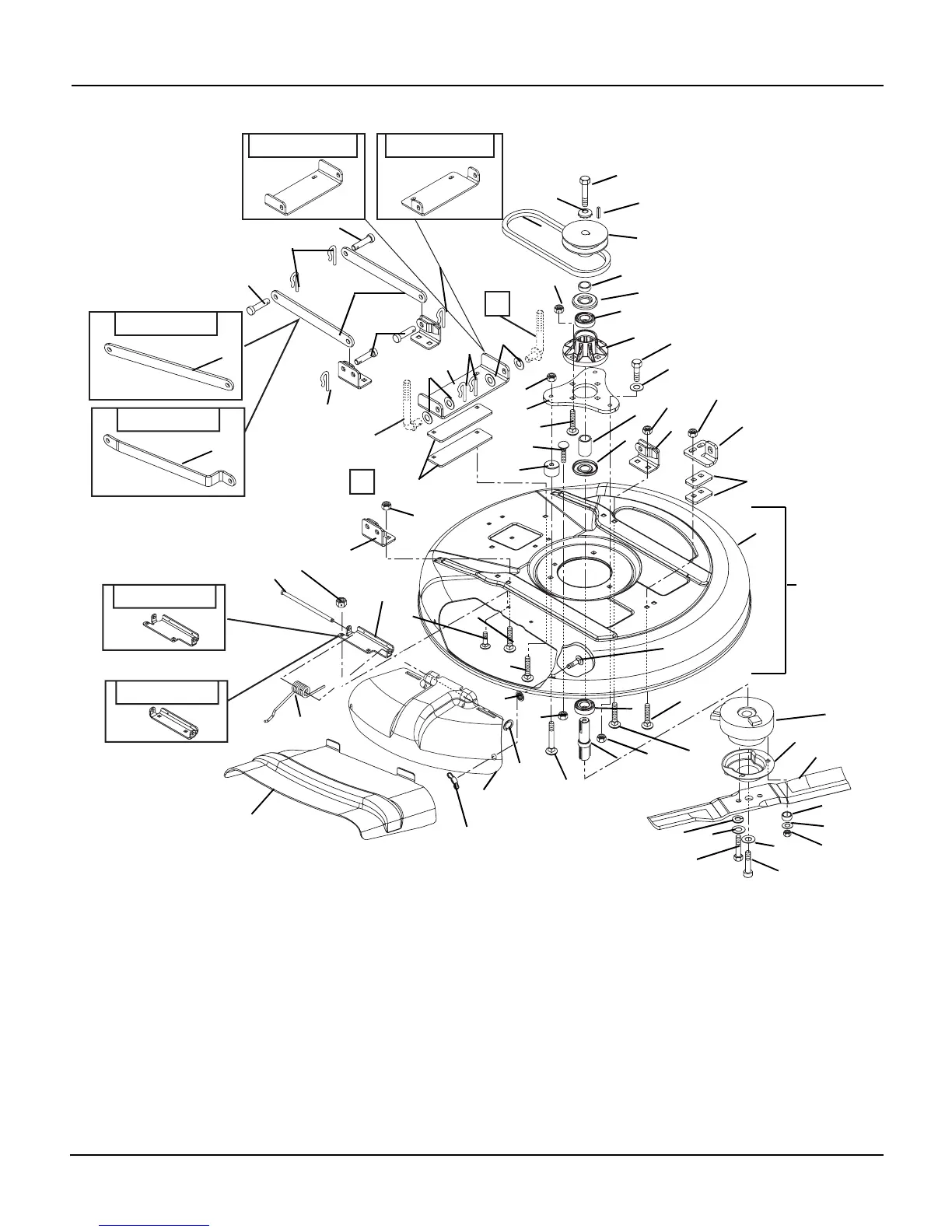

28" AND 32" DECK, IDLERS AND BLADES
Model 927060, 062
Item Part No. Qty. Description
1 05974500 1 Bolt, Hex .38-16 x 1.00 Grade 8 with Epoxy Patch
2 01608551 1 Discharge Chute
3 00597000 1 Washer, Cupped Serrated .375
4 06611100 1 Key, Square .25 x .38 x .25
5 01610400 1 Pulley, 28" Deck Input (060)
01610300 1 Pulley, 32" Deck Input (062)
6 01572700 2 Bearing, Slinger
7 032050 2 Bearing, Ball 1.00 x 2.00 x .56
8 06817400 4 Pin, Clevis .494 x 1.00
9 02780651 1 Bracket, Rear Hanger 28” (060)
02780351 1 Bracket, Rear Hanger 32” (062)
10 02770351 1 Bracket, Deck Link Right Hand (060)
02763751 1 Bracket, Deck Link Right Hand (062)
“See
Deck Lift”
A
“See
Deck Lift”
A
PA0382
1
3
5
4
6
7
24
8
12
13
13
9
8
17
25
25
46
24
15
16
14
11
10
18
24
24
6
19
20
7
29
21
22
27
30
32
31
23
33
34
35
36
38
39
40
42
43
44
45
41
47
49
48
37
35
28
24
50
51
52
52
2
8
13
26
53
53
927062
927060
12
12
927060
927062
54
927062
927060
55
57
56
