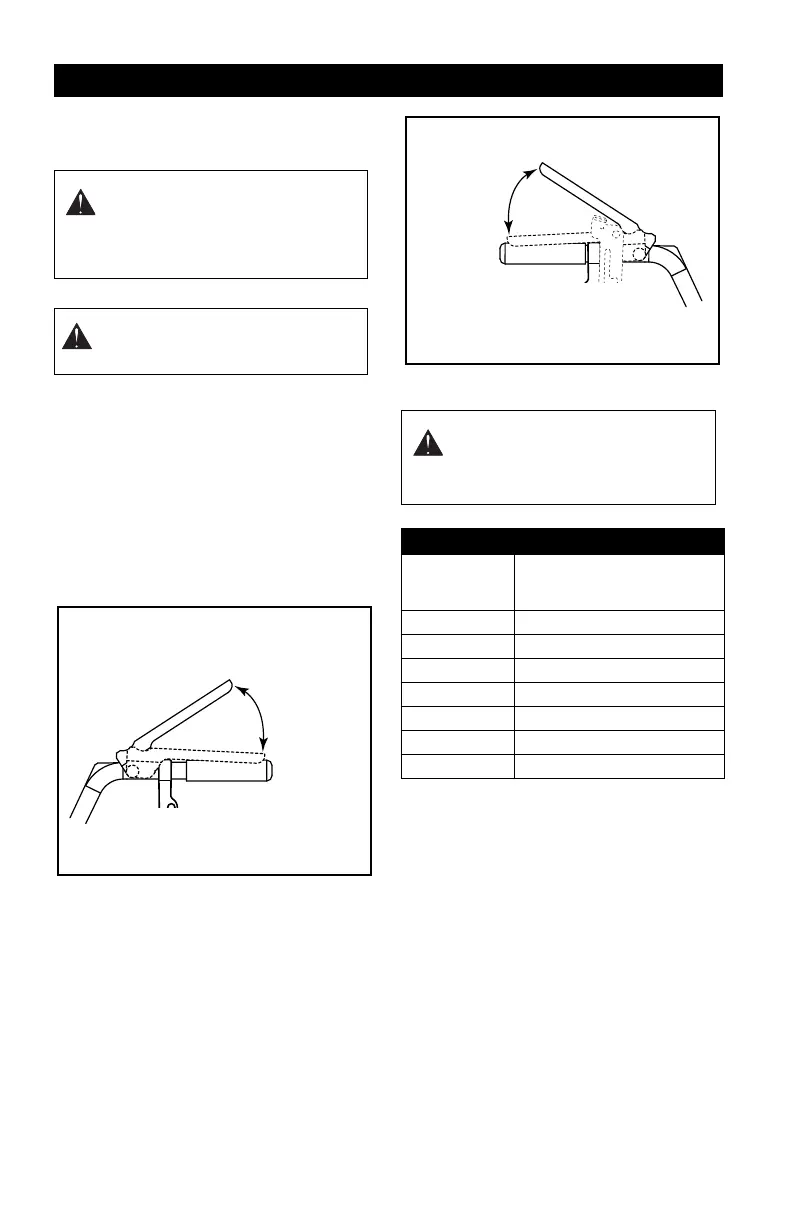

CONTROLS AND FEATURES
See Figure 6 for locations.
Parking Brake Lever (Right Hand
Lever)
Hold the parking brake lever against the
handlebar to release the wheel lock pin and
operate the unit.
Release the parking brake lever to engage
wheel lock pin and prevent the unit from
rolling forward or backward.
IMPORTANT: The wheel lock pin prevents
the unit from rolling forward or backward. The
unit can still pivot from side to side.
PTO Clutch Lever (Left Hand Lever)
Hold down the lock lever and then squeeze
the pto clutch lever against the handlebar to
engage the clutch and start the mower
blades.
Release the clutch lever to stop the blades.
NOTE: The lock lever prevents the pto clutch
lever from being squeezed accidentally. It will
engage each time you release the clutch
lever.
CUTTING HEIGHT ADJUSTMENT
NOTE: Placing the spacers above the caster
arm lowers the deck and decreases cutting
height. Placing the spacers below the caster
arm raises the deck and increases the cutting
height.
To change cutting height, remove the lock pin
from the top of the caster fork. Support and
raise the deck slightly, turn the cutting height
spacers so the open end aligns with the flats
cut into the caster fork, and then remove the
spacers.
OPERATION
WARNING: Improper operation
can lead to injury. Learn what the
controls do and how they work.
Thoroughly read and understand
entire Operator Manual.
CAUTION: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
Parking Brake Disengaged: Hold
lever against handlebar to operate
the unit.
Parking Brake Engaged: Unit will
not roll forward or backward.
DANGER: Avoid injury from
rotating blade.
ALWAYS shut off engine before
adjusting cutting height.
Cutting Height Settings Chart
Spacers
Below Caster
Arms
Cut Grass Length
0 1-3/4" (44.4 mm)
1 2" (50.8 mm)
2 2-1/2" (63.5 mm)
3 2-3/4" (69.8 mm)
4 3" (76.2 mm)
5 3-1/4" (82.6 mm)
6 3-1/2" (88.9 mm)
PTO Engaged: Hold down the lock
lever and then hold clutch lever
against handlebar to engage the
clutch and start the mower blades.
PTO Disengaged: Mower blades
stop rotating.
