GB-20
Adjust Blade Height
Level and pitch the mower with the height adjusters on each deck
lift bracket (Figure 20).
Loosen the jam nut on the deck lift bracket bolt about 1/4
turn to reduce clamp load on the height adjusters.
Loosen the jam nut on the deck adjuster bolt and then turn
the bolt clockwise to raise the deck or counterclockwise to
lower the deck. Tighten both jam nuts.
SHORT TERM
NEVER spray unit with high-pressure water or store unit
outdoors.
Inspect unit for visible signs of wear, breakage or damage.
Keep all nuts, bolts and screws properly tightened and know unit
is in safe working condition.
Store unit in a cool, dry protected area.
LONG TERM
Clean unit thoroughly with mild soap and low pressure water and
lubricate (See Lubricate Unit on page 15 in Maintenance). Touch
up all scratched painted surfaces.
Remove weight from wheels by putting blocks under frame or
axle.
When storing unit for extended periods of time, remove all fuel
from tank and carburetor (run dry). Refer to Engine Manual.
Clean and charge the battery. Charge battery every three to four
weeks when storing unit.
To Take the Unit Out of Storage
1. Refer to the engine service manual to prepare the engine
for service.
2. Put fresh, clean fuel in the fuel tank.
3. Begin the maintenance schedule.
4. Charge and install the battery.
STORAGE
WARNING: AVOID INJURY. Read and understand
entire Safety section before proceeding.

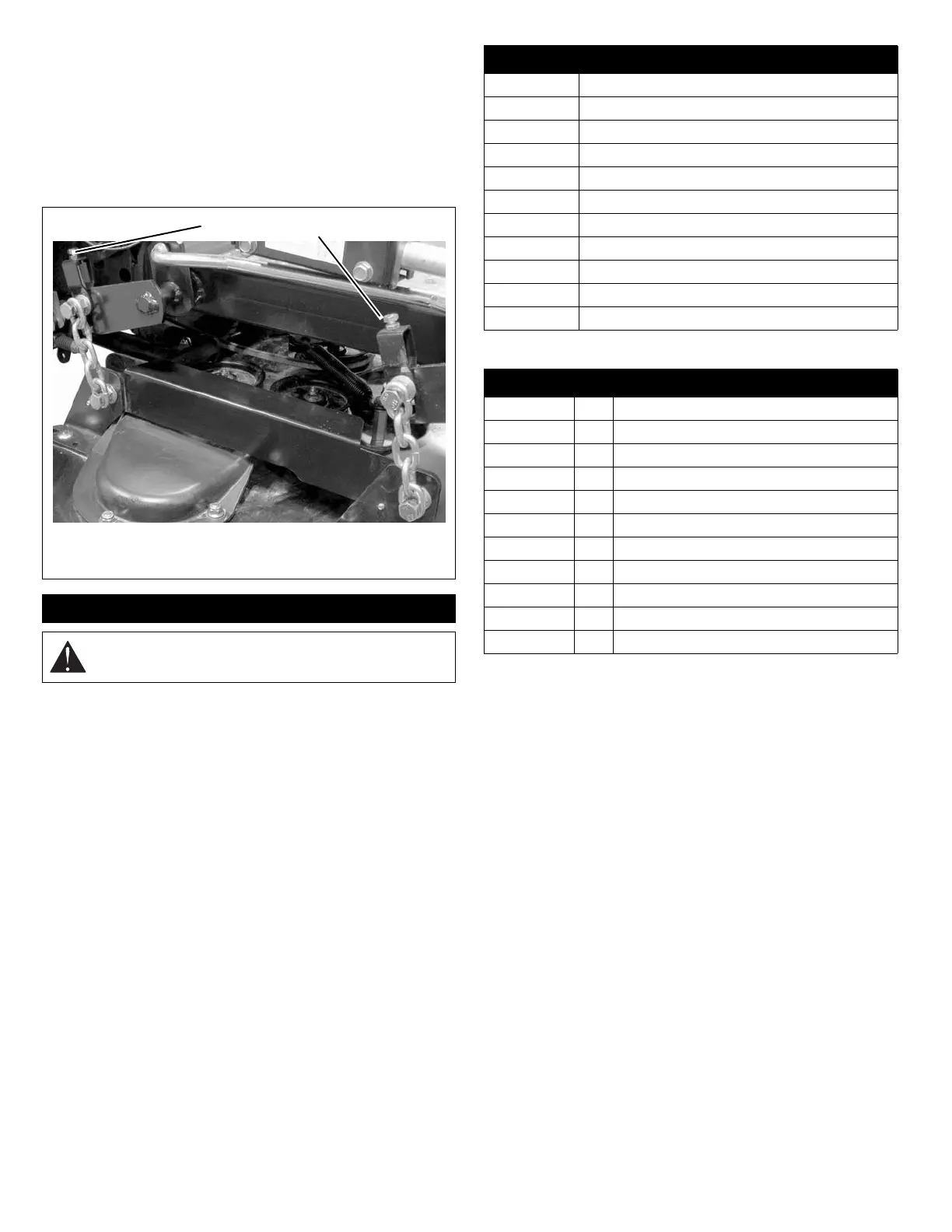

Figure 20
DO NOT place blocks under reinforcement bar.
Height Adjusters
ACCESSORIES
Part No. Description
79202300 Hitch Kit
79203900 Headlight Kit
71503500 60-Inch Sprayer
71503600 Spreader
71503800 48-Inch Lawn Sweeper
71502900 Dump Cart
71503300 36-Inch Roller
89202500 Bagger
71505400 48-Inch Mulch Kit
71505300 44-Inch Mulch Kit
SERVICE PARTS
Part No. Qty Description
01554800 1 Battery SMF U1-250
09246900 1 Hydraulic Oil Filter
07241600 1 48-Inch V-Belt
07200010 1 44-Inch V-Belt
01593900 1 44-Inch Blade
04919100 1 48-Inch Blade
21541700 1 Spark Plug
21541500 1 Fuel Filter
21397200 1 Oil Filter
21542700 1 Air Filter
