GB - 9
Package Contents:
Unit, Mower Deck and Literature Pack
Preparation Checklist
Refer to the Owner/Operator manual as required.
1. Unpack Unit - Remove shrink wrap and packaging
materials.
2. Remove Unit From Container - Open Bypass Valves
(dump valves) (See
Moving the Unit with the Engine
Off
in
Operation
).
Push unit from container onto a level surface. Close
the dump valves.
3. Tires - Adjust tire pressure for front tires; 20-25 PSI
(138-172 kN/m
2
), rear tires; 12-15 PSI (83-103
kN/m
2
).
4. Lift and rotate seat onto frame. Secure with pin.
5. Position Steering Levers - Remove bolts and
spacers from steering rod. Flip the steering levers
up into operating position. Reinstall spacers, bolts
and nuts. Tighten hardware securely. See Figure 4.
6. Battery - Remove battery from unit, fill with
electrolyte and charge (See
Battery
in
Maintenance
).
7. Check Engine Crankcase - Check and add oil if
needed. See Engine Manual for specifications.
8. Fill Engine Fuel Tank - Add clean fuel to the fuel
tank.
IMPORTANT:
Refer to Engine Manual for fuel type.
9. Hardware - Check for loose hardware.
10. Check Safety Interlock System - Check to see that
the interlock system operates correctly.
11. Lubrication - Lubricate all fittings per maintenance
and check hydrostat oil level.
12. Level Deck - Check unit to assure deck level set at
factory has been maintained.
13. Check Function of all Controls - Ensure unit runs
and performs properly.
ASSEMBLY
WARNING:
Make all seat adjustments with unit
stationary, parking brake on and engine shut off.

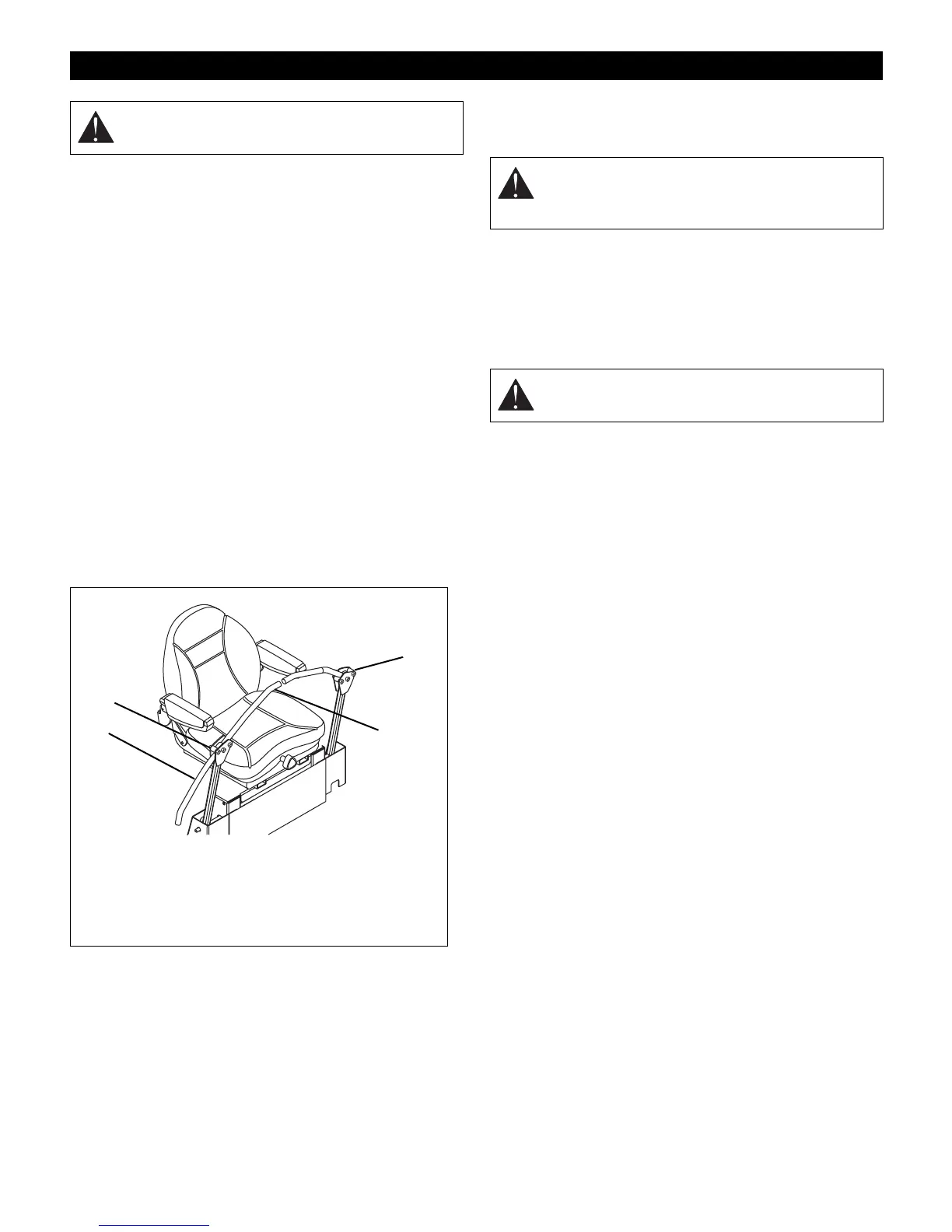

1. Steering Lever in
Shipping Position
2. Spacers and
Hardware
3. Steering Lever in
Operation Position
1
2
3
2
OF3140
Figure 4
WARNING:
FAILURE OF INTERLOCK
together
with improper operation can result in severe
personal injury.
WARNING:
FAILURE OF CONTROLS could
result in death or serious injury.
