Gravely ZT HD 48 Manual

EN - 13
1. Fuel Tank and Cap
2. Steering Levers
3. Hydraulic Oil Reservoir (under seat)
4. Ignition Switch
5. Hour Meter
6.
Throttle Lever
7. Choke Control (Models 991082, 083,
084, 099, 101)
8. Power Take Off (PTO) Switch
9. Battery (under seat)
10. Mower Lift Pedal
11. Mower Deck
12. Mower Lift Lock
13. Seat Adjustment Lever
14. Parking Brake
15. Bypass Valve Lever

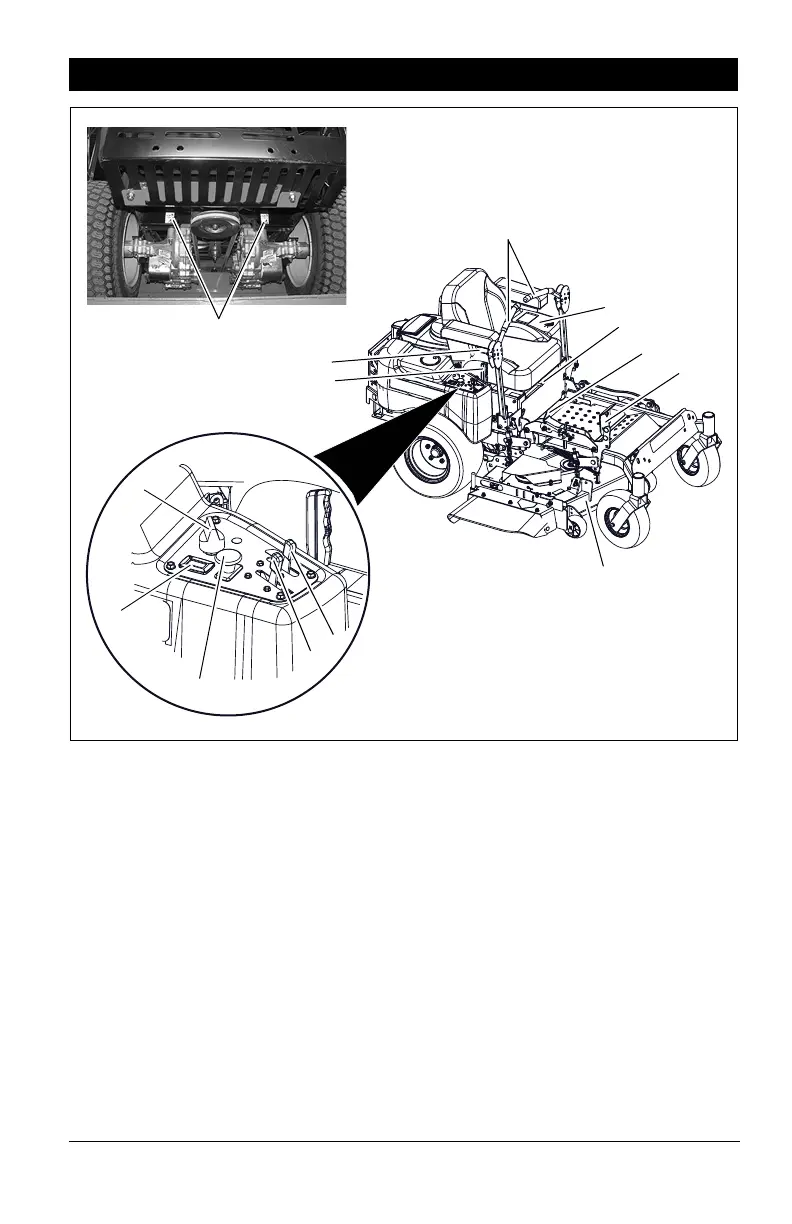

CONTROLS AND FEATURES
Figure 3
1
2
4
5
7
8
3, 9
10
12
13
14
6
15
11

Gravely ZT HD 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Cutting Width	48 inches
Transmission Type	Hydro-Gear ZT-3100
Deck Material	10-gauge steel
Engine Type	V-Twin
Engine Displacement	726cc
Ground Speed Forward	8.5 mph
Ground Speed Reverse	4 mph
Deck Type	Fabricated
Turning Radius	Zero-turn
Cutting Height	1.5 to 5 inches
Spindle Material	Aluminum
Warranty	4 years or 500 hours
Seat Type	High-back
