EN - 31
IMPORTANT: Make sure belts are correctly
aligned in pulleys.
5. Reinstall belt covers and secure with
original hardware.
REPLACE TRANSAXLE DRIVE
BELT
Remove Transaxle Drive Belt
1. Place unit in service position. See
Service Position on page 18.
2. Remove PTO belt from clutch. See
Remove PTO Belt on page 29.
3. Under unit, slowly remove spring hook
from anchor bolt to release transaxle idler
tension. See Figure 39.
See Figure 40.
4. Remove hardware securing clutch stop
bracket to frame and remove bracket.
NOTICE: DO NOT cut cable tie.
CAUTION: Use care when re-
leasing idler spring tension. Keep
body parts away from idlers
when performing this operation.

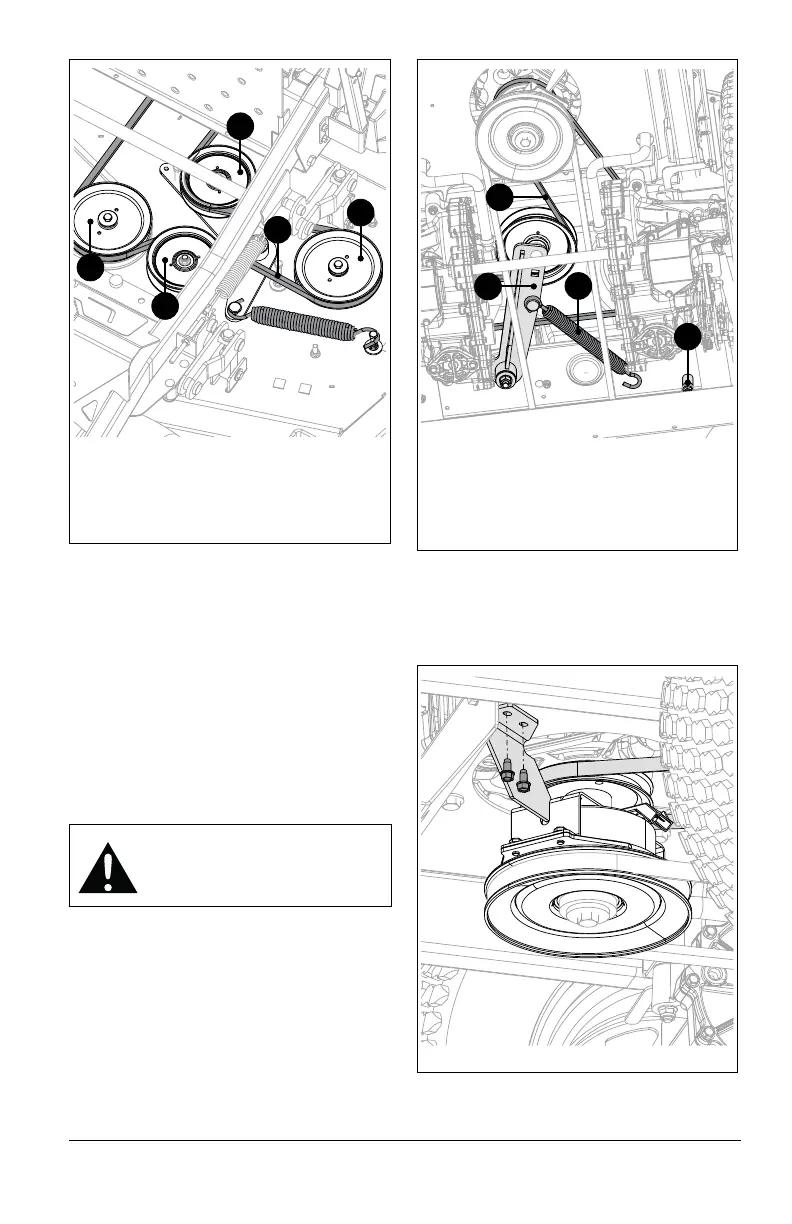

Figure 38
1. Idler Pulley
2. Split Pulley
3. Left Spindle Pulley
4. PTO Belt
Figure 38
1
1
2
4
3
Figure 39
1. Spring
2. Anchor Bolt
3. Transaxle Idler
4. Transaxle Drive Belt
1
2
3
4
Figure 40

Other manuals for Gravely ZT HD 52

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gravely ZT HD 52 and is the answer not in the manual?

Gravely ZT HD 52 Specifications

General IconGeneral
Engine BrandKawasaki
Engine ModelFR691V
Engine Displacement726 cc
Cutting Width52 inches
Cutting Height1.5 - 5 inches
Transmission TypeHydro-Gear ZT-3100
Blade Tip Speed18, 500 fpm
Deck TypeFabricated
Turning RadiusZero-turn
Horsepower23 HP
Seat TypeHigh Back with Armrests
