Gravely ZT X 52 User Manual

EN - 11
1. Fuel Tank and Cap
2. Fuel Level Window
3. Oil Filter
4. Oil Drain
5. Engine Oil Dipstick
6. Ignition Key
7. Choke Control Knob (Models 915204,
915206, 915218, 915230, 915236,
915238, 915240, 915242)
8. Throttle Control Lever
9. Power Take-off (PTO) Knob
10. Hour Meter
11. Height-of-Cut Dial
12. Deck Lift Pedal
13. Seat Adjustment Lever
14. Parking Brake Lever
15. Belt Guard (2)
16. Mower Deck
17. Steering Lever (2)
18. Towing / Trailer Hitch
19. Discharge Chute
20. Anti-Scalp Roller (2)
21. Transaxle Bypass Lever (2)
22. Battery (Under Seat)
23. Carbon Canister (Models 915176,
915236, 915238, 915240, 915242)

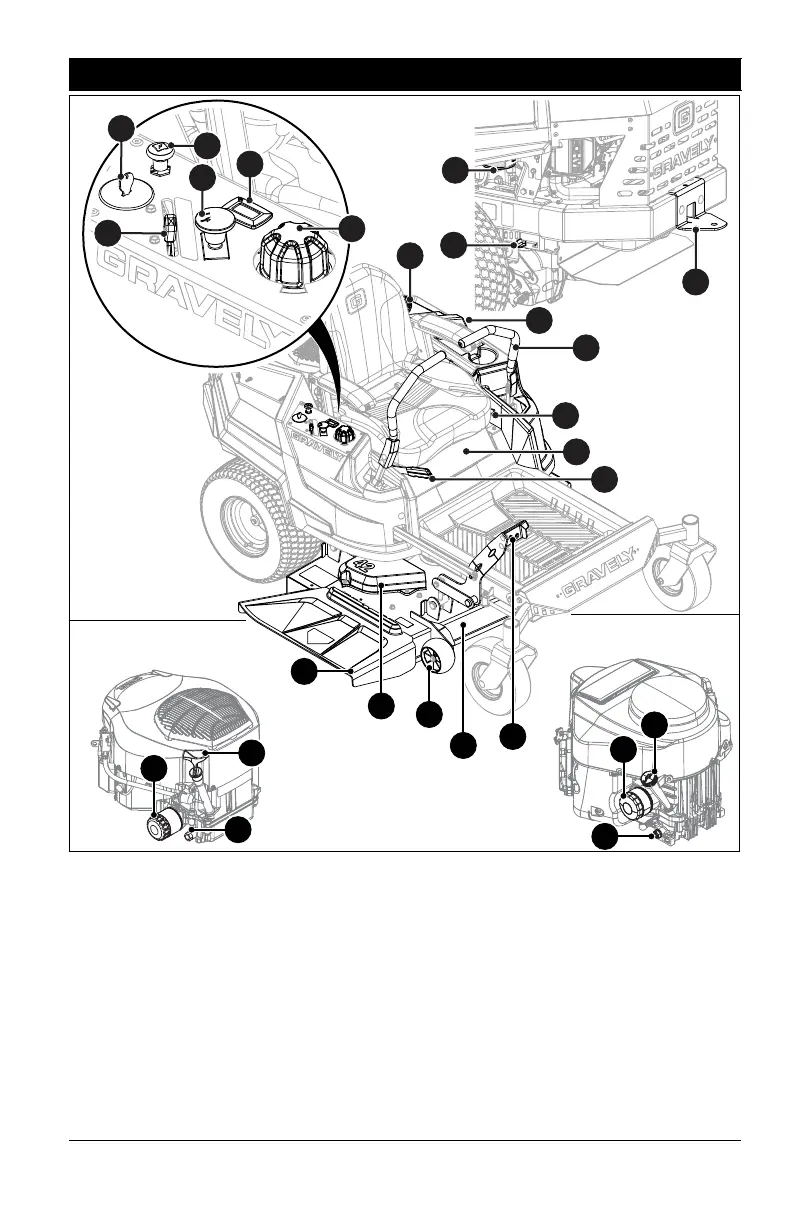

CONTROLS AND FEATURES
Figure 3
9
19
16
12
22
20
10
8
11
6
18
21
14
15
17
2
1
13
Models 915204, 915206,
915218, 915230, 915236,
915238, 915240, 915242
Models 915172, 915174,
915176, 915200, 915202,
915216
7
3
4
5
3
4
5
23

Gravely ZT X 52 Specifications

General

Engine Manufacturer	Kawasaki
Horsepower	23 HP
Cutting Width	52 inches
Fuel Capacity	3.5 gallons
Deck Material	10-gauge steel
Spindle Material	Aluminum
Warranty	3 years
Cutting Height	1.5 - 4.5 inches
