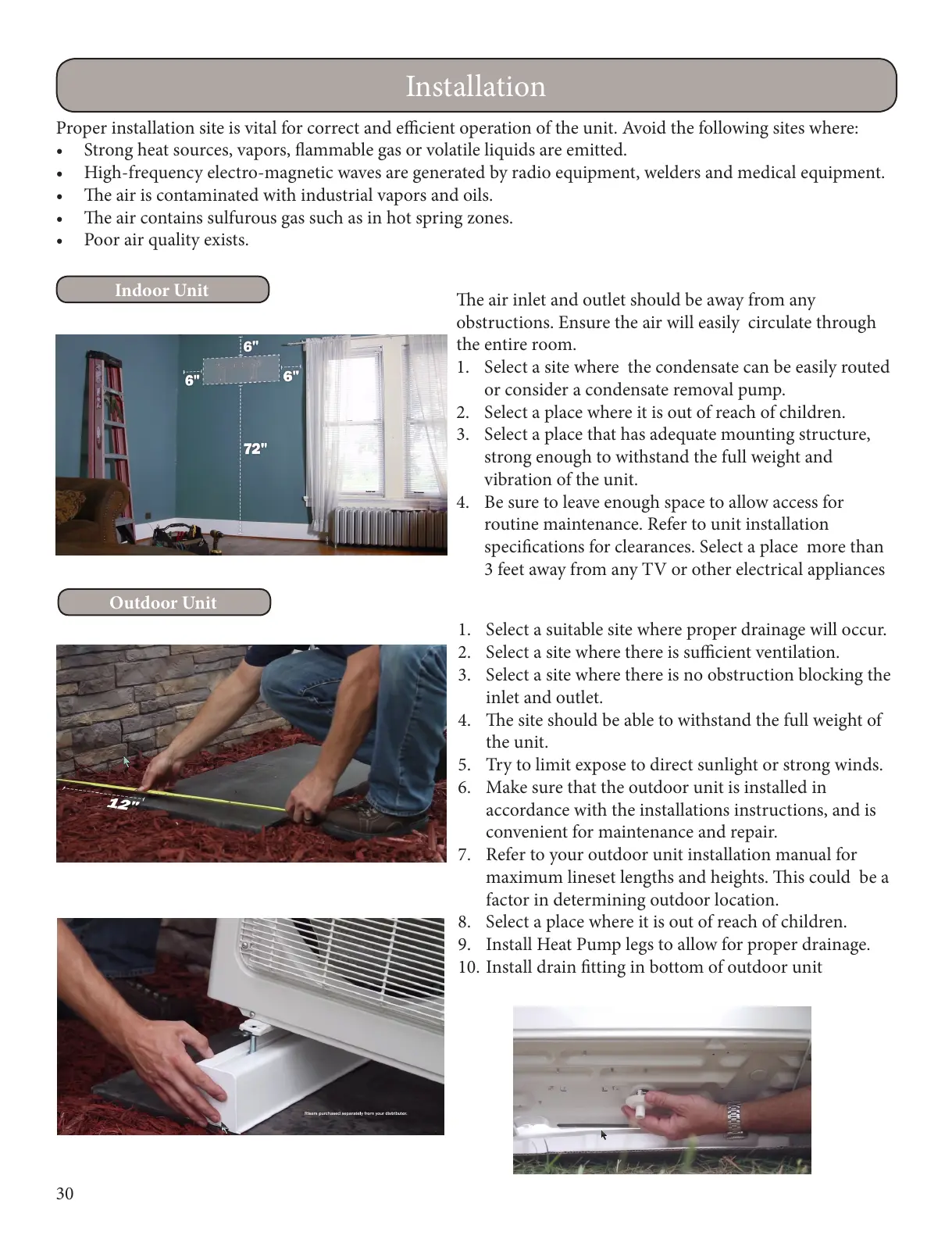

Installation
Proper installation site is vital for correct and ecient operation of the unit. Avoid the following sites where:
• Strong heat sources, vapors, ammable gas or volatile liquids are emitted.
• High-frequency electro-magnetic waves are generated by radio equipment, welders and medical equipment.
• e air is contaminated with industrial vapors and oils.
• e air contains sulfurous gas such as in hot spring zones.
• Poor air quality exists.
e air inlet and outlet should be away from any
obstructions. Ensure the air will easily circulate through
the entire room.
1. Select a site where the condensate can be easily routed
or consider a condensate removal pump.
2. Select a place where it is out of reach of children.
3. Select a place that has adequate mounting structure,
strong enough to withstand the full weight and
vibration of the unit.
4. Be sure to leave enough space to allow access for
routine maintenance. Refer to unit installation
specications for clearances. Select a place more than
3 feet away from any TV or other electrical appliances
Indoor Unit
1. Select a suitable site where proper drainage will occur.
2. Select a site where there is sucient ventilation.
3. Select a site where there is no obstruction blocking the
inlet and outlet.
4. e site should be able to withstand the full weight of
the unit.
5. Try to limit expose to direct sunlight or strong winds.
6. Make sure that the outdoor unit is installed in
accordance with the installations instructions, and is
convenient for maintenance and repair.
7. Refer to your outdoor unit installation manual for
maximum lineset lengths and heights. is could be a
factor in determining outdoor location.
8. Select a place where it is out of reach of children.
9. Install Heat Pump legs to allow for proper drainage.
10. Install drain tting in bottom of outdoor unit
Outdoor Unit
