6
Technical Information
Service Manual
Silk Screen on Main Board

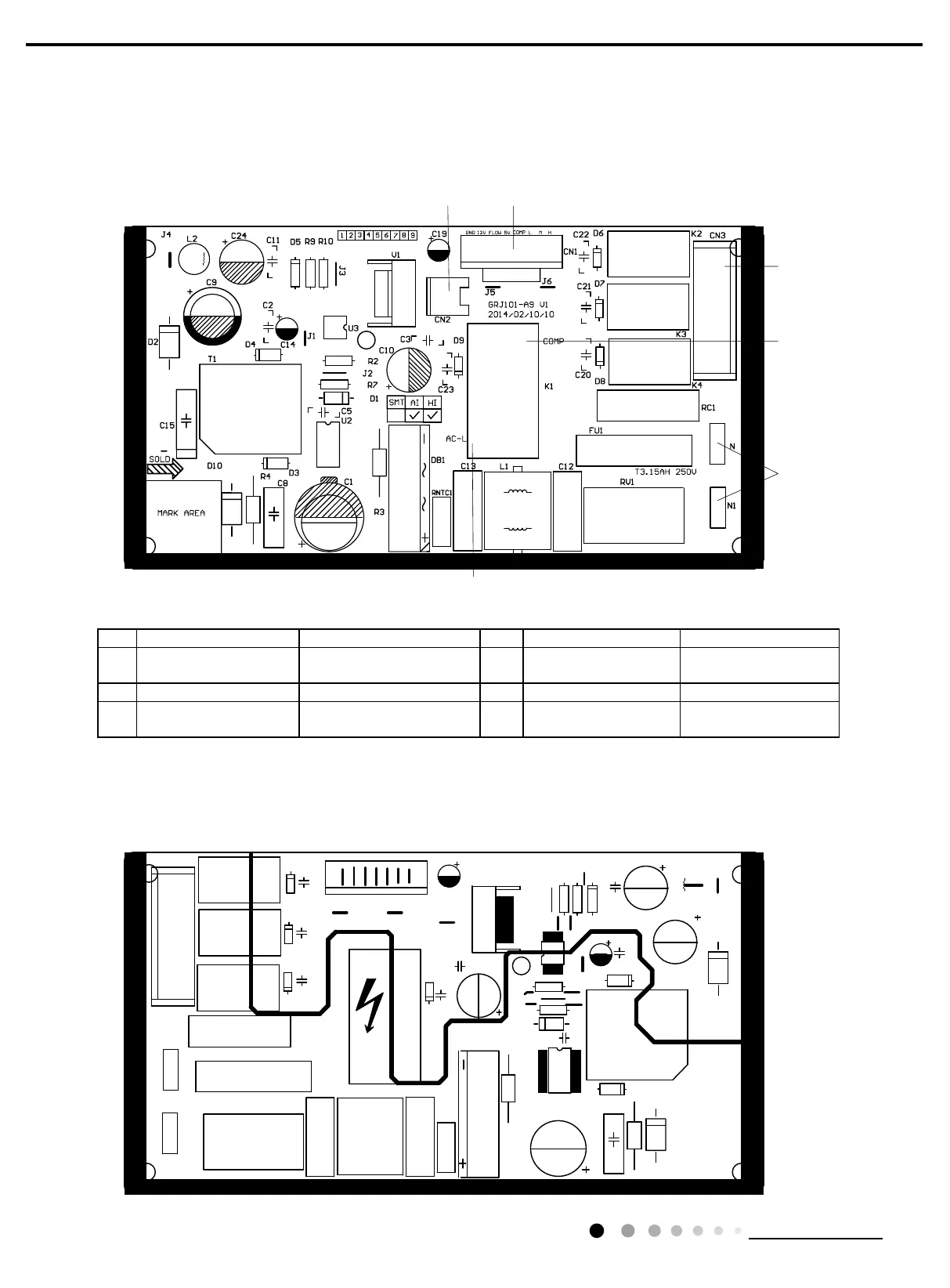

5.2 PCB Printed Diagram
● Top view
● Bottom view
No. Name Description No. Name Description
1
Needle stand of board
connection wire
Connect to display board 4 Interface of neutral wire
Connect to neutral wire
of commercial wire
2 Needle stand of fan Connect to fan 5 Interface of compressor Connect to compressor
3 Interface of live wire
Connect to live wire of
commercial wire
6
Needle stand of water
blow protection switch
Connect to water blow
protection switch
16
2
5
4
3
