37
Service Manual
Installation and Maintenance

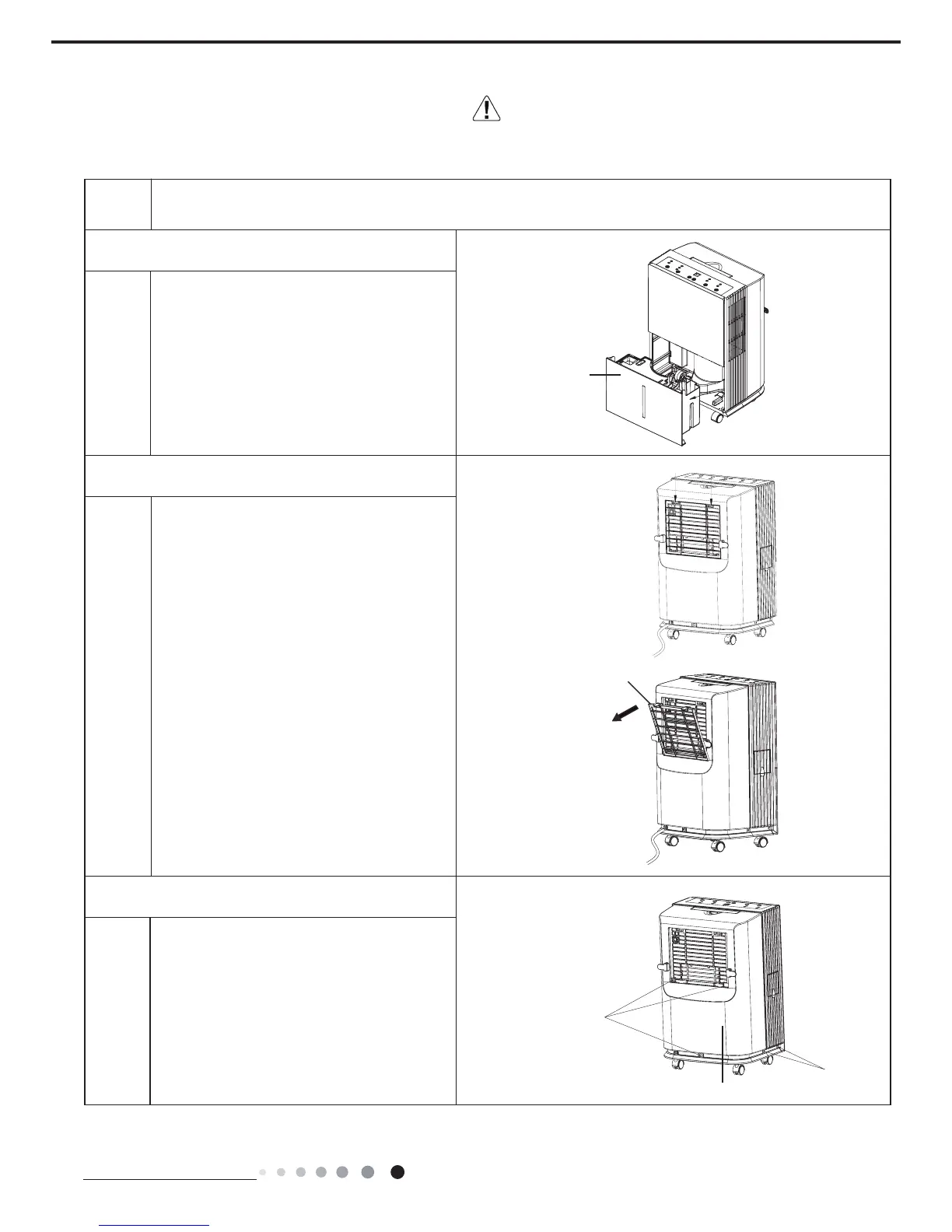

10.Removal Procedure
Warning: disconnect power supply before
removal; discharge the refrigerant completely
before unsoldering the pipes.
Procedure
Step
1.Remove water tank assembly
3.Remove front panel
2.Remove lter
water tank assembly
Pull the water tank onwards to remove
the water tank assembly.
Press the 2 clasps of lter to make the
groove loosened, then pull the lter
outwards to remove it.
Unscrew screws on inlet por t and screws
on the bottom groove, handle the bottom
of rear panel and pull it out wards to
remove it.
lter
front panel
screws
screws
To Next Page
