Super Free Match
Service Manual
MAINTENANCE
N
133

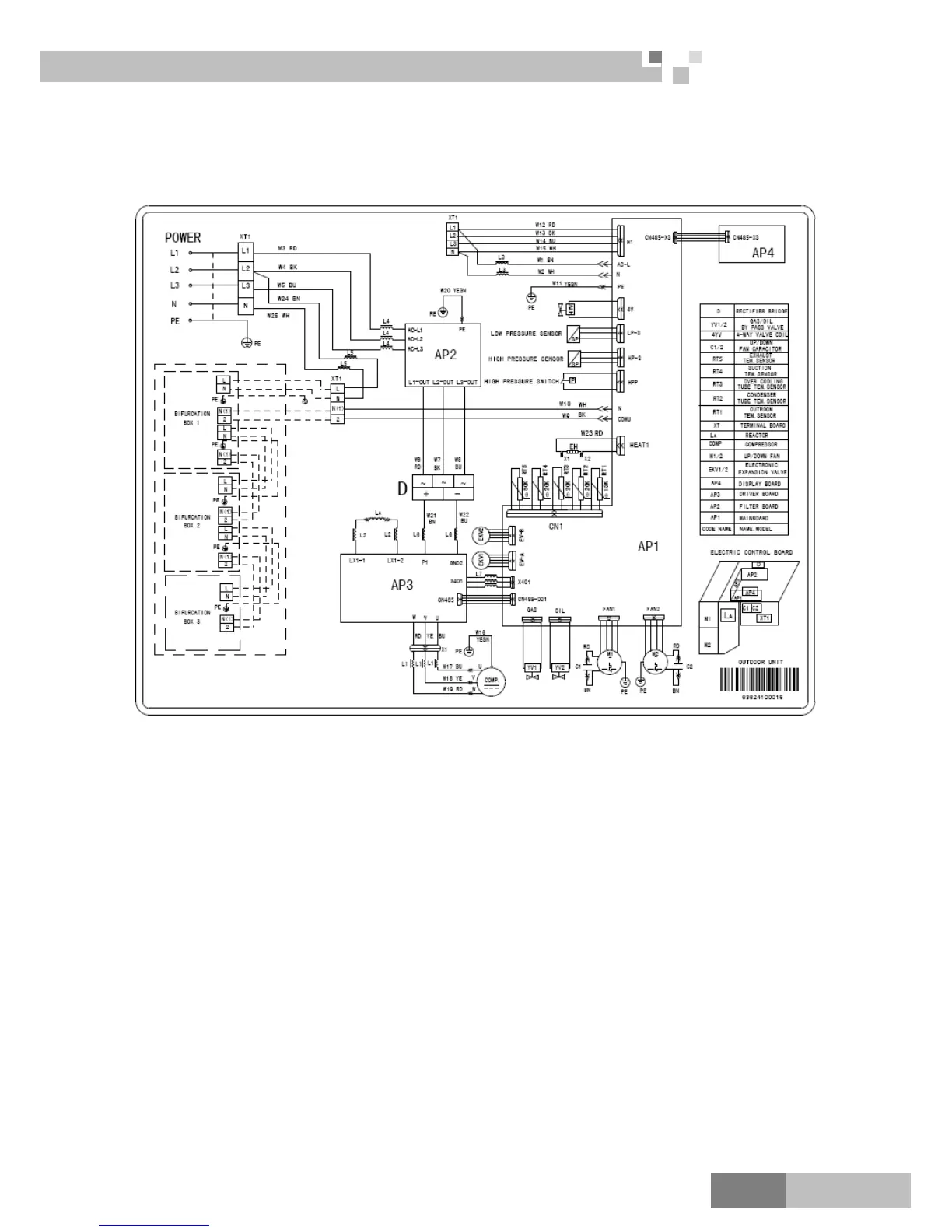

4.2 Wiring diagram
Note:
This drawing is just for reference; please always refer to the electric wiring stuck to the unit for actual wiring.
4.2.1 Outdoor unit
GWHD(56S)NM3CO、GWHD(48S)NM3CO
