Gree GMV-24WL/C-T User Manual

DC Inverter Multi VRF System
8
Total capacity of downstream indoor units C (kW)
Gas pipe (mm/inch)
Liquid pipe (mm/inch)
C≤5.6
Φ12.7(1/2)
Φ6.35(1/4)
5.6<C≤14.2
Φ15.9(5/8)
Φ9.52(3/8)
14.2<C≤22.4
Φ19.05(1/4)
Φ9.52(3/8)

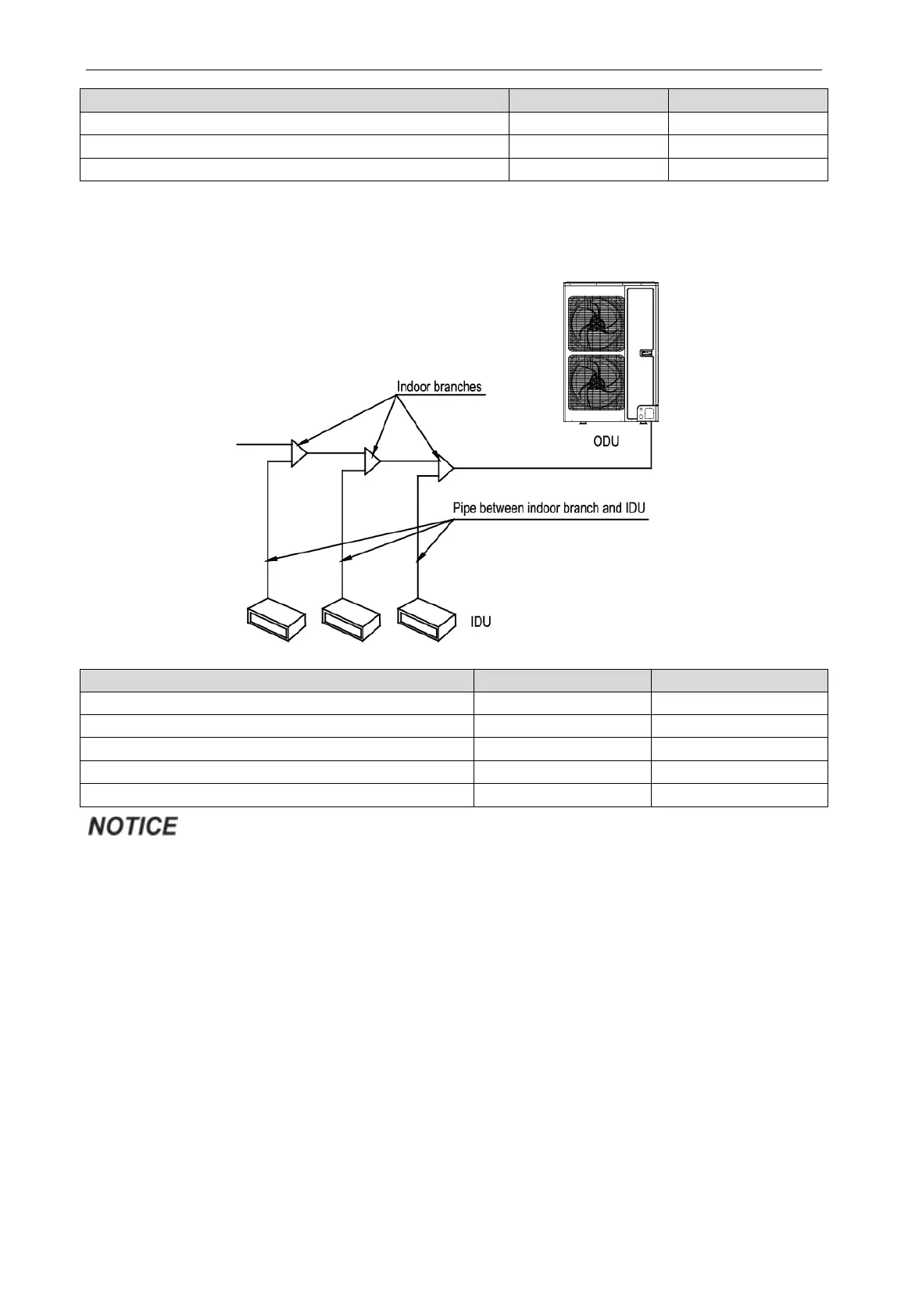

4.2.6 Dimension of Pipe between Indoor Branch and IDU
Dimension of pipe between indoor branch and IDU should be consistent with the dimension of
indoor pipe.
Fig. 9
Rated capacity of IDU C(Btu/h)
Gas pipe (mm/inch)
Liquid pipe (mm/inch)
C≤9600 Φ9.52(3/8) Φ6.35(1/4)
9600<C≤17000
Φ12.7(1/2)
Φ6.35(1/4)
17000<C≤48000
Φ15.9(5/8)
Φ9.52(3/8)
48000<C≤55000
Φ19.05(3/4)
Φ9.52(3/8)
55000<C≤96000
Φ22.2(7/8)
Φ9.52(3/8)
If the distance between IDU and its nearest branch is over 10m, then the liquid pipe of IDU (rated
capacity ≤17000 Btu/h) shall be enlarged.
4.3 Installation of Connection Pipe
4.3.1 Precautions for the Installation of Connection Pipe
(1) Conform to the following principles during pipe connection: Connection pipe should be as
short as possible, so is the height difference between indoor and outdoor units. Keep the
number of bends as little as possible. Radius of curvature should be as large as possible.
(2) Weld the connection pipe between indoor and outdoor units. Please strictly follow the
requirements for welding process. Rosin joint or pin hole is not allowed.
(3) Radius of bending parts should be over 200mm(8inch). Note that pipes cannot be
repeatedly bent or stretched; otherwise the material will get harder. Do not bend or stretch
the pipe for more than 3 times at the same position.
