Gree GMV-60WL/C-T User Manual

DC Inverter Multi VRF System
3
1
2
3
4
5
GMV-60WL/C-T(U)

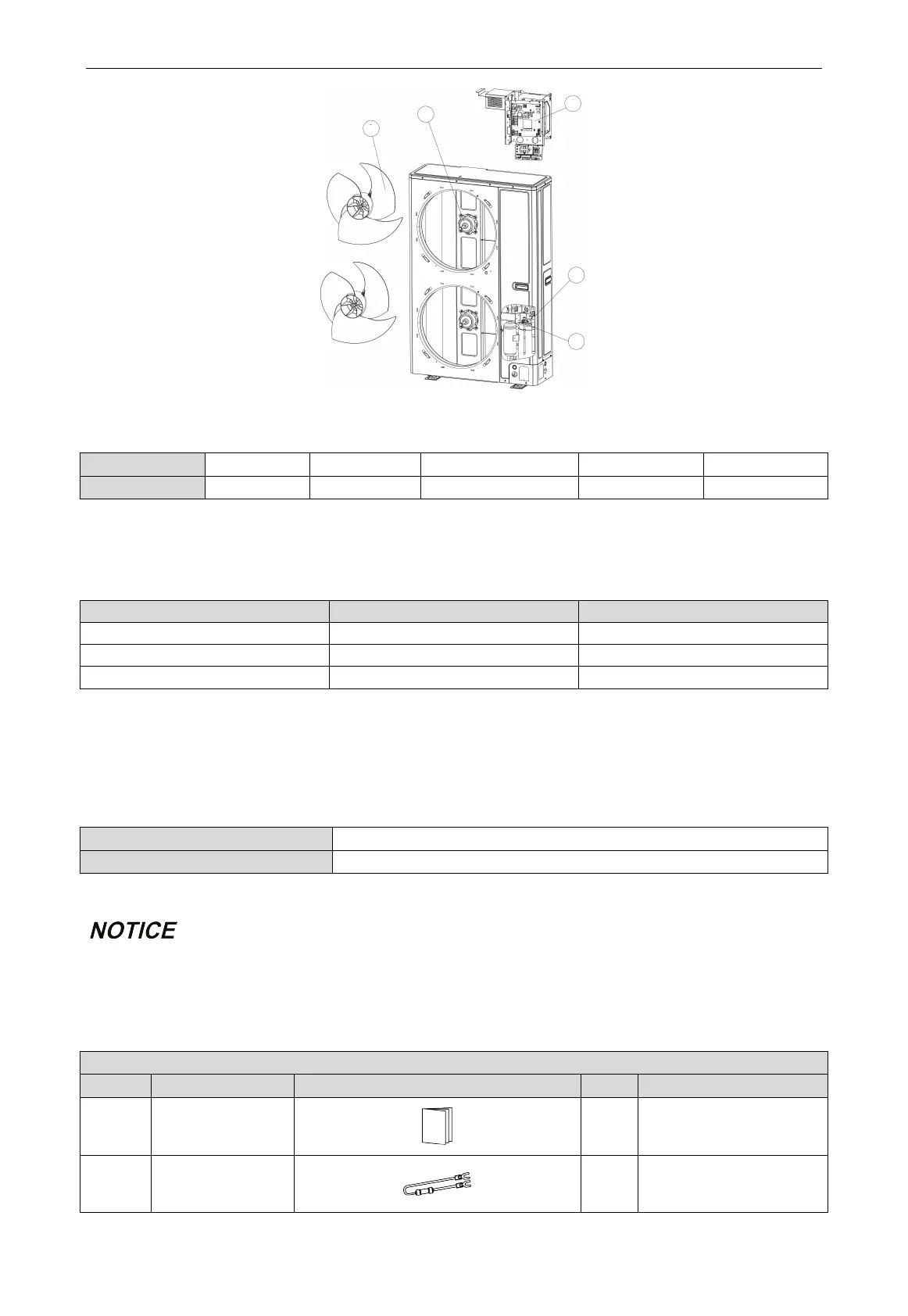

Fig.2.1
No.
① ② ③ ④ ⑤
Name Motor Fan blade Electric box assembly Gas pipe valve Liquid pipe valve
2.2 Combinations of Indoor and Outdoor Units
(1) See below the number of indoor units that can be connected to the outdoor unit.
(2) The total capacity of indoor units should be within 50%~135% of that of the outdoor unit.
Model
Min sets of connectable IDUs
Max sets of connectable IDUS
GMV-36WL/C-T(U)
2
7
GMV-48WL/C-T(U)
2
8
GMV-60WL/C-T(U)
2
10
(3) Outdoor units of DC Inverter Multi VRF System can be connected to various indoor units.
When any one of the indoor units receives operating command, outdoor unit will start
operation as per required capacity. When all indoor units stop, outdoor unit will be shut off.
2.3 Operating Range
Cooling
Outdoor temperature: -5~48°C(23~118°F)
Heating
Outdoor temperature: -20~27°C(-4~81°F)
3 Preparation before Installation
Graphics here are only for reference. Please refer to actual products.
3.1 Standard Parts
Please use the supplied standard parts as required.
Parts for Outdoor Unit
No.
Name
Appearance
Qty
Remark
1 User Manual
1 —
2
Wiring (match with
resistance)
1
Must be connected to the
last IDU of communication
connection

Gree GMV-60WL/C-T Specifications

General

Brand	Gree
Model	GMV-60WL/C-T
Category	Air Conditioner
Language	English
