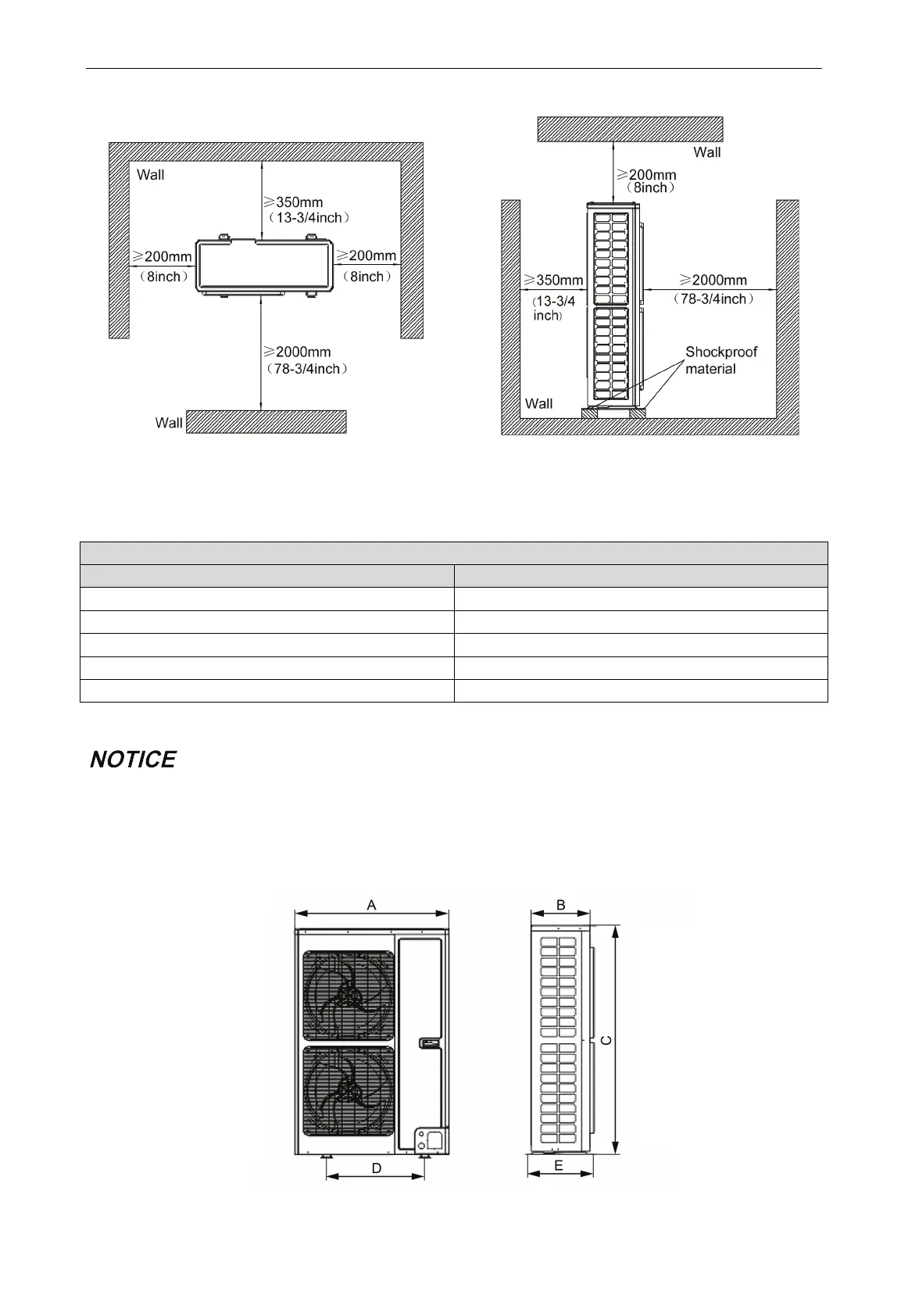

If the ODU is totally surrounded by walls, please refer to Fig.3.1 for space dimension:
Fig.3.1
3.3 Piping Work Requirements
Refer to the table below for piping work requirements:
R410A Refrigerant System
Outer diameter (mm/inch)
Wall thickness (mm/inch)
Φ6.35(Φ1/4)
≥0.8(1/32)
Φ9.52(Φ3/8) ≥0.8(1/32)
Φ12.7(Φ1/2)
≥0.8(1/32)
Φ15.9(Φ5/8)
≥1.0(1/25)
Φ19.05(Φ3/4)
≥1.0(1/25)
4 Installation Instruction
Graphics here are only for reference. Please refer to actual products.
4.1 Dimension of Outdoor Unit and Mounting Hole
Unit Outline and Installation Dimension.
Fig.4.1
