Multi Variable Air Conditioners Floor and Ceiling Type Indoor Unit
5
3 Preparations for Installation
Note:
Product graphics are only for reference. Please refer to actual products. Unspecied
measure unit is mm.

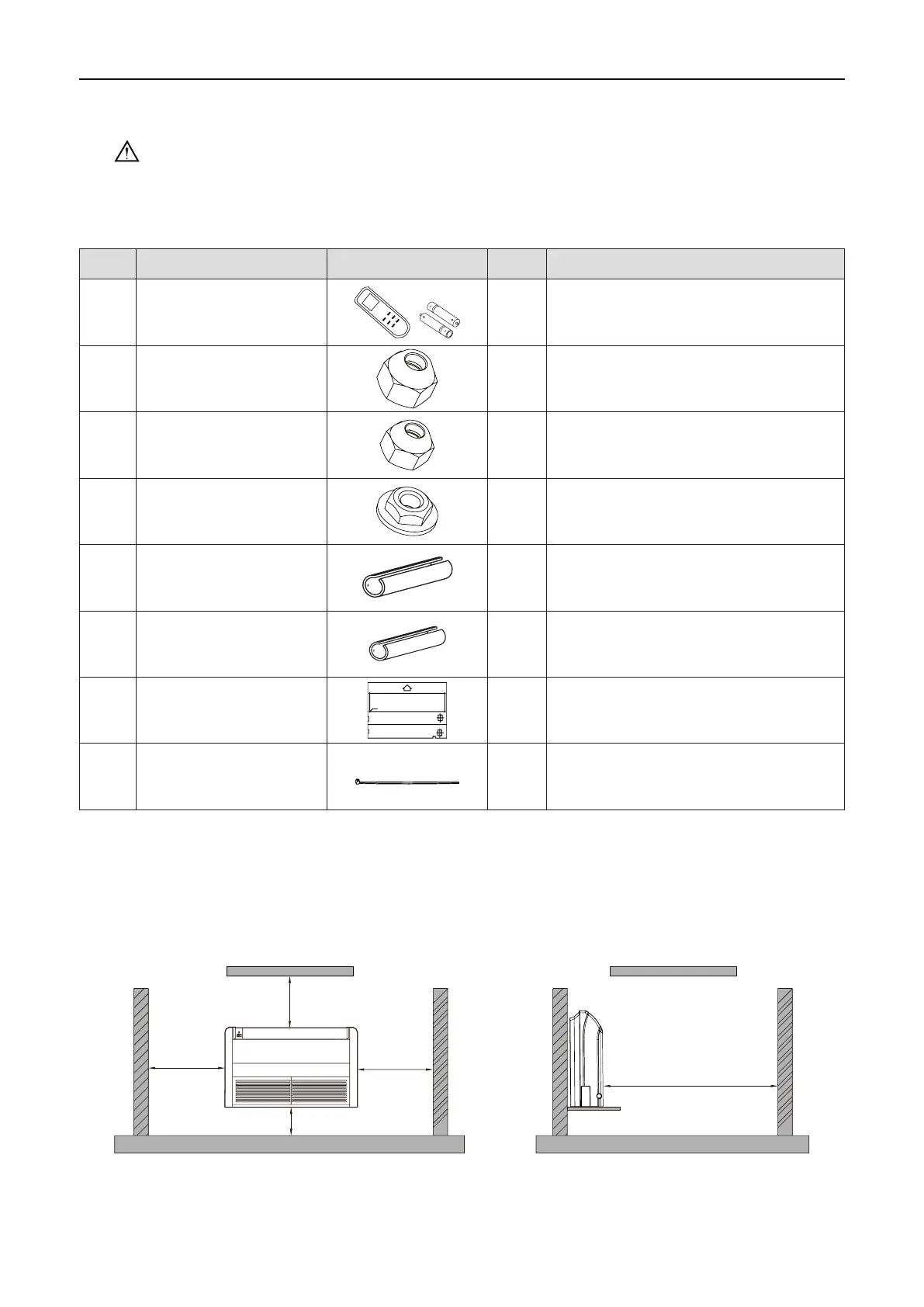

3.1 Standard Fittings
Use the following provided accessories according to the requirement.
No. Name Appearance Q’ty Usage
1 Remote controller
1+2 To control the indoor unit
2 Special nut 1 To connect gas pipe
3 Special nut 1 To connect liquid pipe
4 M10X8 nut with washer 8
To be used together with the suspension
bolt for installing the unit.
5 Insulation 1 To insulate the gas pipe
6 Insulation 1 To insulate the liquid pipe
7 Installation Paperboard
4-φ12
1
Locate the drill hole on ceiling
Or Wall
8 Fastener 4 To fasten the sponge
3.2 Installation Position Selection
(1) The location should be able to withstand the weight of unit.
(2) The water can be drained conveniently from drainage pipe.
(3) There should be no obstruction near air inlet and air outlet.
Unit: mm
◆
Floor type
>600
>1000
>300
>600
>1500
◆
Ceiling type
To Next Page
